NPT Thread Type Hydraulic Fittings
This thread type is most commonly used in North America. Pehel Hydraulic recognize it by its tapered outer and inner diameter which is self-sealing. When torqued the flanks of the threads compress against each other forming a leak-tight seal. However, it is still recommended to use PTFE tape or another sealant compound to guarantee a completely leak-tight seal.
A semi-compatible variant of NPT is NPTF fittings(National Pipe Taper Fuel). It ensures an even more leak-free seal. But it is important to note that using these variants together diminishes their leak-free characteristics. NPT threads should be burr-free and lubricated using lubricating paste or tape. Doing so limits corrosion on the threads which otherwise can make future disassembly nearly impossibl
JIC thread
JIC (or Joint Industry Council) fittings, defined by SAE J514, are compression fittings machined with a 37 degree flare seating surface and parallel threads. They are commonly manufactured in brass, carbon & stainless steel. JIC Fitting hydraulic connections are common in most fluid power systems.
It is a type of flare fitting machined with a 37-degree flare seating surface. JIC fittings are widely used in fuel delivery and fluid power applications, especially where high pressure is involved. JIC hydraulic fittings systems have three components that make a tubing assembly: fitting, flare nut, and sleeve. As with other flared connection systems, the seal is achieved through metal-to-metal contact between the finished surface of the fitting nose and the inside diameter of the flared tubing. The sleeve is used to evenly distribute the compressive forces of the flare nut to the flared end of the tube. Materials commonly used to fabricate JIC fittings include forged carbon steel, forged stainless steel, forged brass, machined brass, Monel and nickel-copper alloys.
ORFS thread
ORFS fittings are becoming the most popular international fitting type used on global OEM machines due to their high level of sealing and their good vibration resistance. The fittings use the O-ring compression mechanism to seal.The female fittings have flat faces and straight threaded UNF swivel nuts. The male fittings have the O-ring in a groove in the flat face.
Seen as a major advantage, these fittings offer the possibility to build the hose assemblies into fixed distances/spaces, without having to move back other system components due the flat faces of the male and female fittings - the hose assembly can be slotted in.

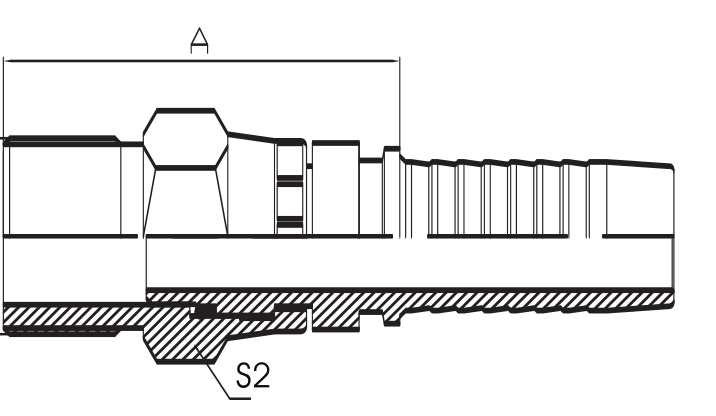

SAE thread
SAE straight threads are able to seal because of the 90-durometer Buna-N “O” Ring. This is a highly reliable and reusable thread type. While some thread types require the threads of the male and female end to crush together to form a seal, the O-Ring on this thread type prevents that.
