PART NO. THREAD O-RING DIMENSIONS E F F A B S1 S2 1TG9-04OG/SP R1/4"X19 G1/4"X19 10.77X2.62 25.5 31.3 14 19 1TG9-04-06OG/SP R1/4"X19 G3/8"X19 13.94X2.62 26.5 35.8 16 22 1TG9-06OG/SP R3/8"X19 G3/8"X19 13.94X2.62 27.5 36.8 16 22 1TG9-06-08OG/SP R3/8"X19 G1/2"X14 17.12X2.62 32.5 43.2 22 27 1TG9-08OG/SP R1/2"X14 G1/2"X14 17.12X2.62 37 43.2 22 27 1TG9-08-12OG/SP R1/2"X14 G3/4"X14 23.47X2.62 39.5 49.3 27 32 1TG9-12OG/SP R3/4"X14 G3/4"X14 23.47X2.62 43 49.3 27 32 1TG9-12-16OG/SP R3/4"X14 G1"X11 29.74X3.53 48 53 33 41 1TG9-16OG/SP R1"X11 G1"X11 29.74X3.53 50 53 33 41 1TG9-16-12OG/SP R1"X11 G3/4"X14 23.47X2.62 50 53 33 27 1TG9-16-20OG/SP R1"X11 G1.1/4"X11 37.69X3.53 55.5 58 41 50 1TG9-20OG/SP R1.1/4"X11 G1.1/4"X11 37.69X3.53 57 58 41 50 1TG9-24OG/SP R1.1/2"X11 G1.1/2"X11 44.04X3.53 62.5 63 48 55
PEHEL | 90° BSPT Male to BSP Male O‑Ring Adapter, Hydraulic Elbow with Tapered and O‑Ring Sealed Ends
PEHEL Hydraulic Model: 1TG9-OG/SP
QTY:

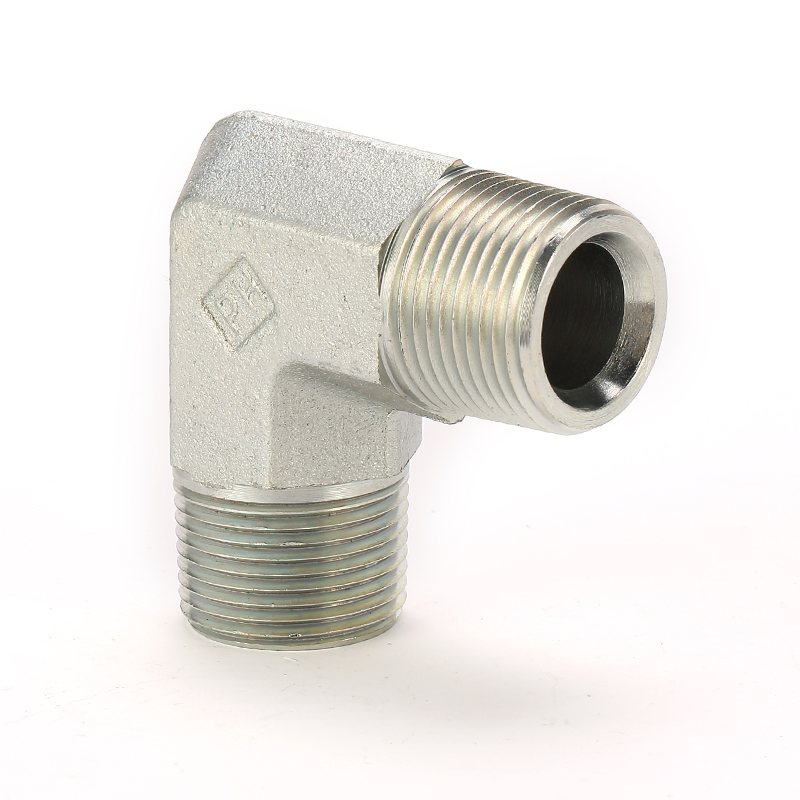

Type: 90° Elbow Adapter
End 1: BSPT Male (tapered)
End 2: BSP Male with O‑Ring (parallel thread, O‑ring seal)
Material: Carbon steel
Brand: PEHEL, OEM
Surface Treatment: Zinc‑plated
About the item:
1.90° elbow adapter featuring a BSPT (tapered) male thread on one end and a BSP male with O‑ring seal on the other, designed for directional changes in hydraulic piping systems.
2.The BSPT male end provides metal‑to‑metal sealing through thread interference when connected to BSPT female ports.
3.The BSP male end features an integrated O‑ring for leak‑free sealing against BSPP (parallel) female port faces, eliminating the need for thread sealant.
4.90° configuration allows efficient redirection of fluid flow in confined spaces, simplifying system layout.
5.Manufactured from high‑strength carbon steel with anti‑rust surface treatment for long service life in demanding hydraulic environments.
