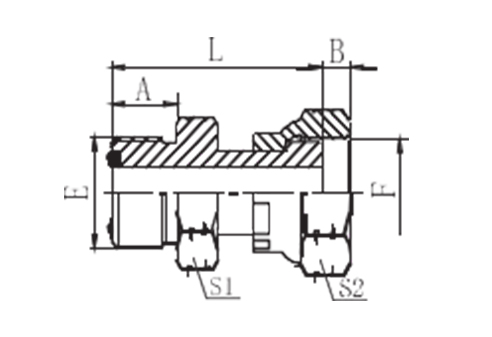

PART NO. THREAD O-RING DIMENSIONS E F E A B L S1 S2 2F-04 9/16"×18 9/16"×18 O011 9.8 7.5 33 17 19 2F-04-06 9/16"×18 11/16"×16 O011 9.8 9.5 34.5 17 22 2F-04-08 9/16"×18 13/16"X16 O011 9.8 11.5 36.5 19 27 2F-06-04 11/16"×16 9/16"×18 O012 11.2 7.5 35.5 19 19 2F-06 11/16"×16 11/16"×16 O012 11.2 9.5 38.5 19 22 2F-06-08 11/16"×16 13/16"X16 O012 11.2 11.5 37.7 19 27 2F-06-10 11/16"×16 1""X14 O012 11.2 12.5 43.7 24 32 2F-08-06 13/16"X16 11/16"X16 O014 12.8 9.5 41 22 22 2F-08 13/16"×16 13/16"×16 O014 12.8 11.5 43 22 27 2F-08-10 13/16"X16 1"×14 O014 12.8 12.5 45.5 24 32 2F-08-12 13/16"X16 1.3/16"X12 O014 12.8 13 49 30 36 2F-10-08 1"×14 13/16"×16 O016 15.5 11.5 47.5 27 27 2F-10 1"X14 1"X14 O016 15.5 12.5 51.5 27 32 2F-10-12 1"×14 1.3/16"X12 O016 15.5 13 51.5 30 36 2F-10-16 1"X14 1.7/16"X12 O016 15.5 14 56 36 41 2F-12-08 1.3/16"X12 13/16"×16 O018 17 11.5 50.5 32 27 2F-12-10 1.3/16"×12 1"×14 O018 17 12.5 54.5 32 32 2F-12 1.3/16"×12 1.3/16"X12 O018 17 13 56 32 36 2F-12-16 1.3/16"X12 1.7/16"X12 O018 17 14 58 36 41 2F-16-12 1.7/16"×12 1.3/16"×12 O021 17.5 13 58 38 36 2F-16 1.7/16"×12 1.7/16"×12 O021 17.5 14 60 38 41 2F-16-20 1.7/16"×12 1.11/16"X12 O021 17.5 15 58 41 50 2F-20-16 1.11/16"×12 1.7/16"×12 O025 17.5 14 58.5 46 41 2F-20 1.11/16"X12 1.11/16"X12 O025 17.5 15 58 46 50 2F-20-24 1.11/16"×12 2"X12 O025 17.5 17 65.5 50 60 2F-24-20 2"×12 1.11/16"×12 O029 17.5 15 64 55 60 2F-24 2"X12 2"X12 O029 17.5 17 61.5 55 60

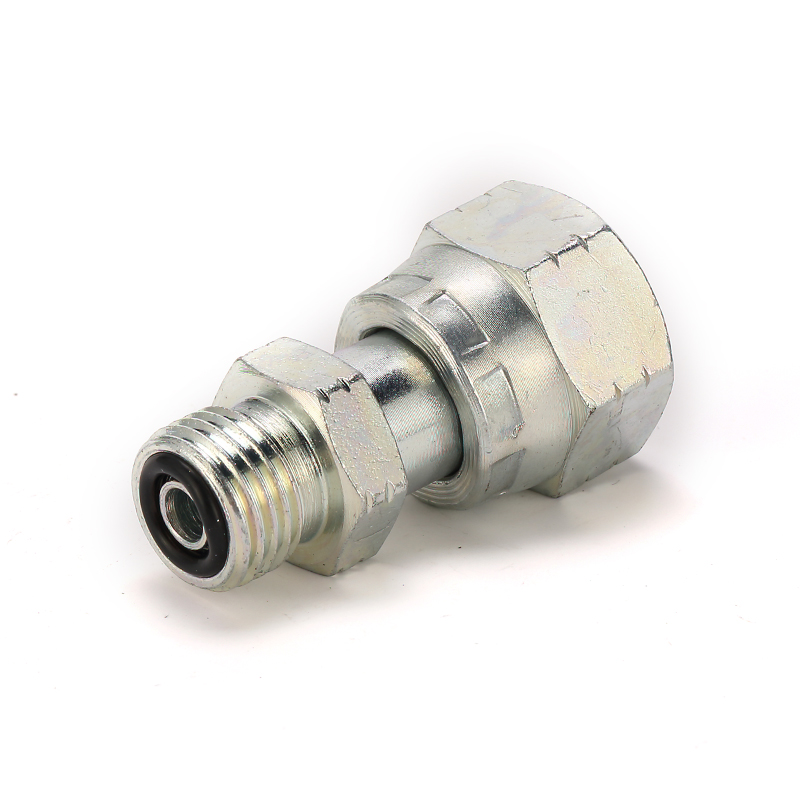

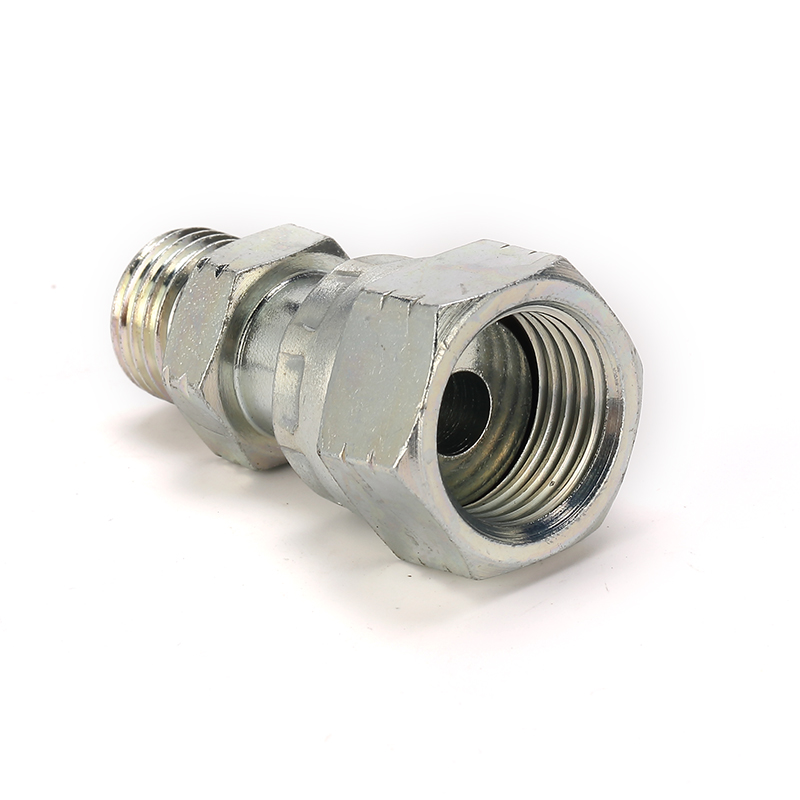

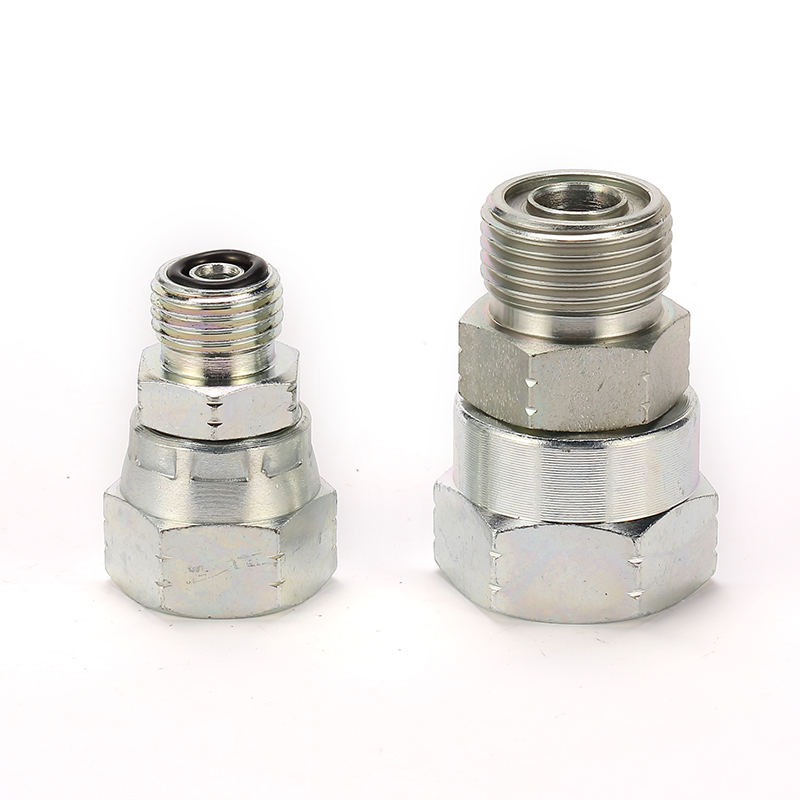

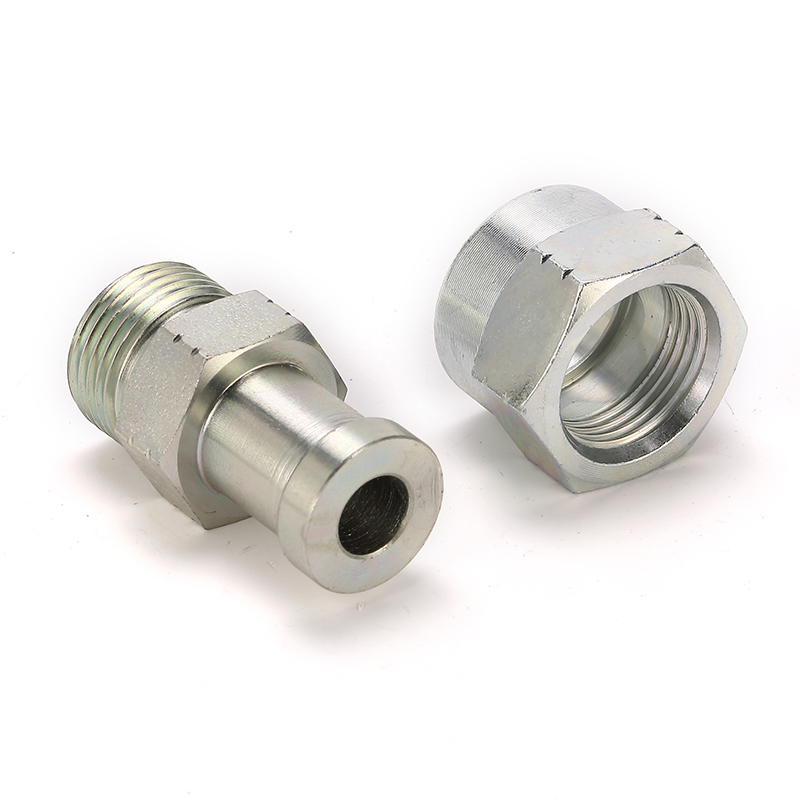

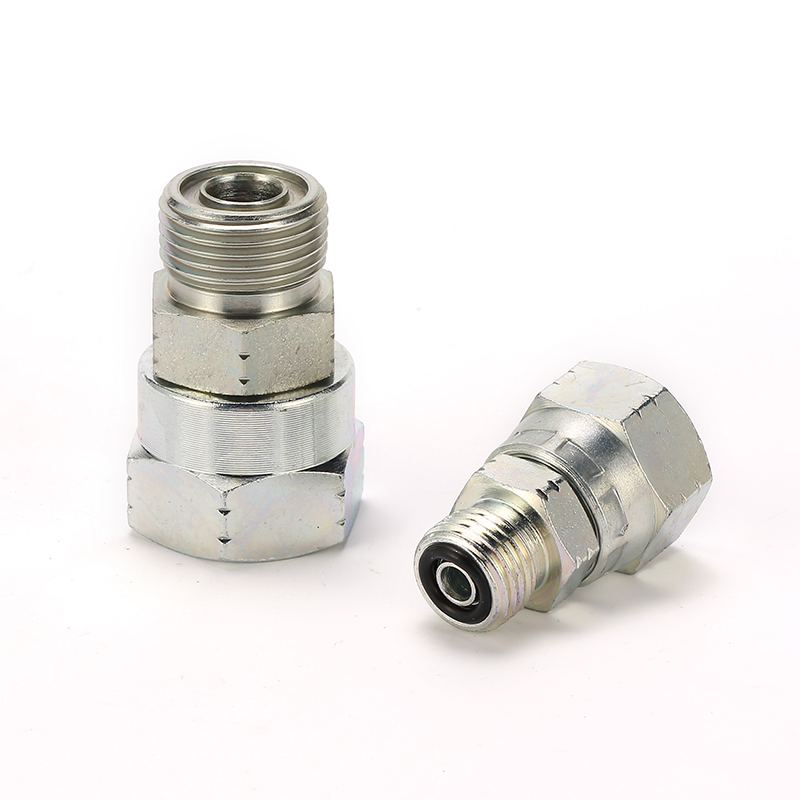

Pehel | ORFS Male O-Ring / ORFS Female Hydraulic Joint
PEHEL Hydraulic Model: P2F
QTY:
Material: Carbon steel, stainless steel
Brand: Pehel, OEM
Color: Silver color zinc plating
Connector Type:
Thread Type:
About the item:
- 1.This ORFS male o-ring hydraulic joint mates perfectly with ORFS female fitting for reliable sealing.
- 2.Available in carbon steel and stainless steel to meet various hydraulic system pressure demands.
- 3.Silver zinc plating surface of the ORFS hydraulic connector offers good anti-corrosion performance.
- 4.Precision machined ORFS thread guarantees tight assembly and zero leakage for hydraulic pipe joint.
- 5.Support Pehel brand and OEM service, suitable for bulk procurement of ORFS hydraulic fittings.
- 6.Standard ORFS dimension, quick installation and stable performance for industrial hydraulic tubing.
