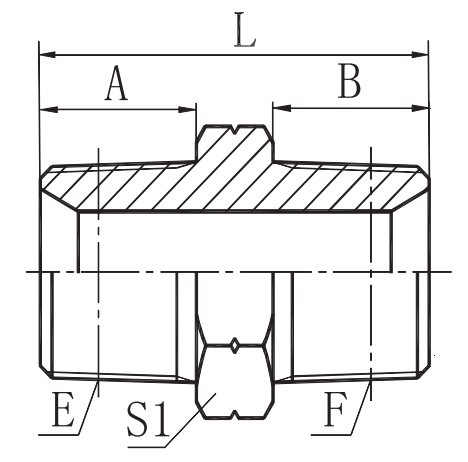

THREAD DIMENSIONS PART NO. E F A B L S1 1T-02SP R1/8"X28 R1/8"X28 10 10 26 12 1T-02-04SP R1/8"X28 R1/4"X19 10 14.5 30.5 14 1T-02-06SP R1/8"X28 R3/8"X19 10 15 31 17 1T-04SP R1/4"X19 R1/4"X19 14.5 14.5 34 14 1T-04-06SP R1/4"X19 R3/8"X19 14.5 15 35 17 1T-04-08SP R1/4"X19 R1/2"X14 14.5 20 43 22 1T-06SP R3/8"X19 R3/8"X19 15 15 36 17 1T-06-08SP R3/8"X19 R1/2"X14 15 20 43 22 1T-08SP R1/2"X14 R1/2"X14 20 20 46 22 1T-08-12SP R1/2"X14 R3/4"X14 20 20 48 27 1T-12SP R3/4"X14 R3/4"X14 20 20 48 30 1T-12-16SP R3/4"X14 R1"X11 20 25.5 55.5 36 1T-16SP R1"X11 R1"X11 25.5 25.5 61 36 1T-16-20SP R1"X11 R1.1/4"X11 25.5 26.5 64.5 46 1T-20SP R1.1/4"X11 R1.1/4"X11 26.5 26.5 65.5 46 1T-20-24SP R1.1/4"X11 R1.1/2"X11 26.5 26.5 67 50 1T-24SP R1.1/2"X11 R1.1/2"X11 26.5 26.5 67 50 1T-24-32SP R1.1/2"X11 R2"X11 26.5 30 71.5 65 1T-32SP R2"X11 R2"X11 30 30 75 65

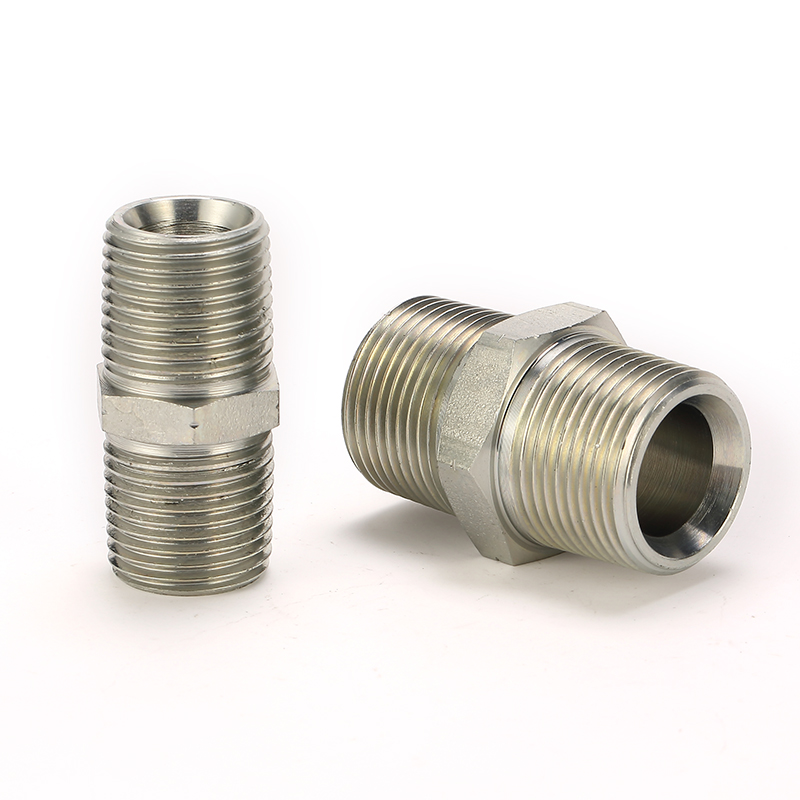

BSPT MALE

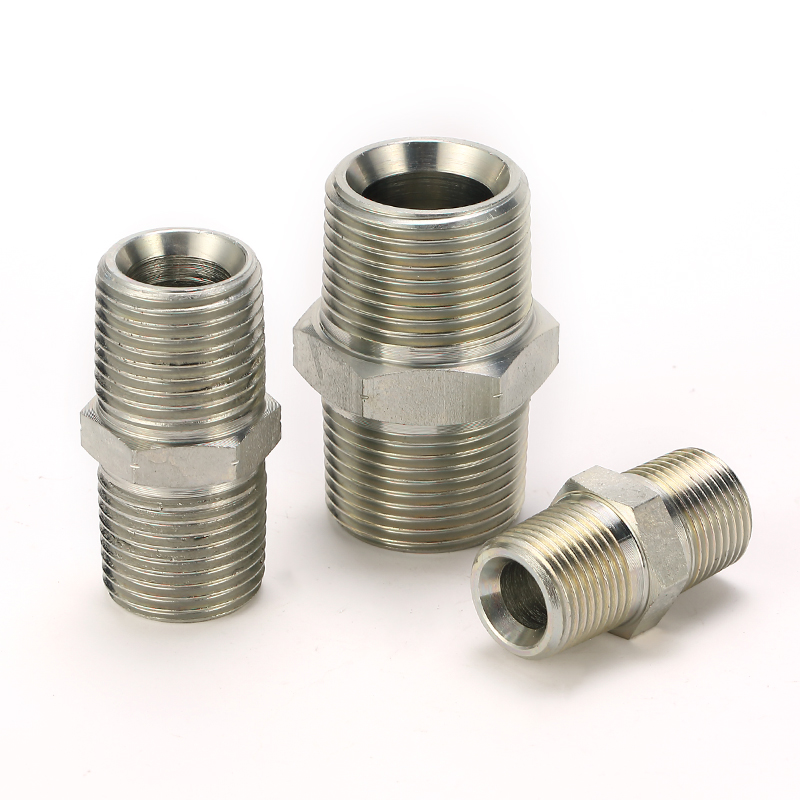

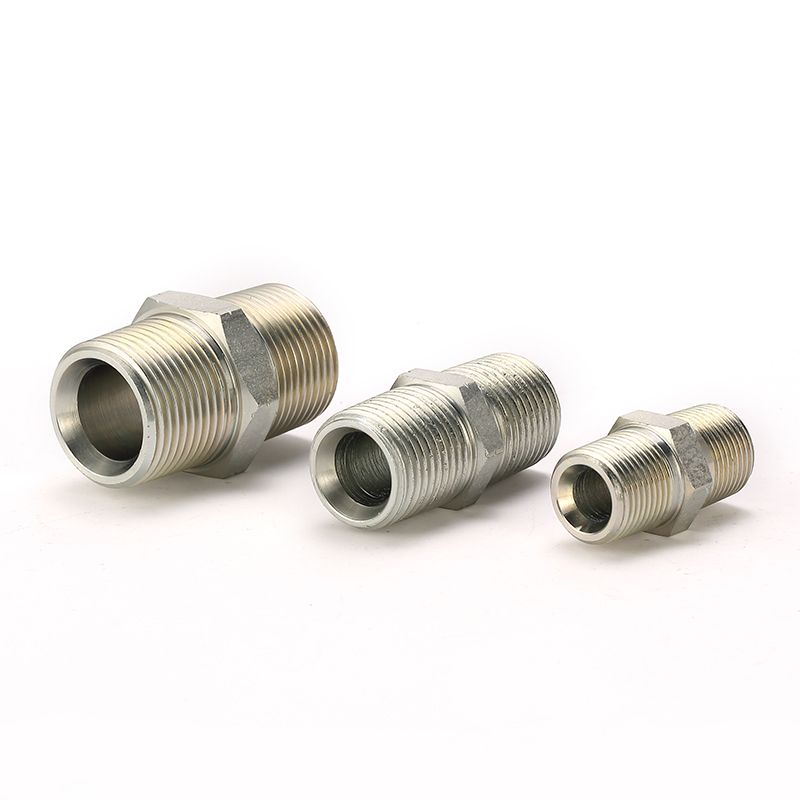

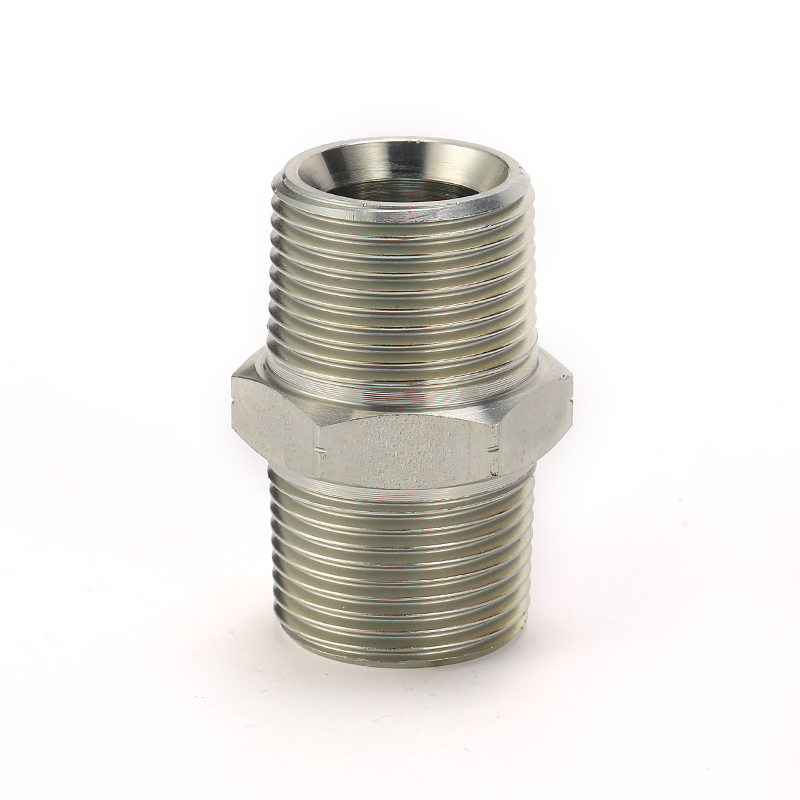

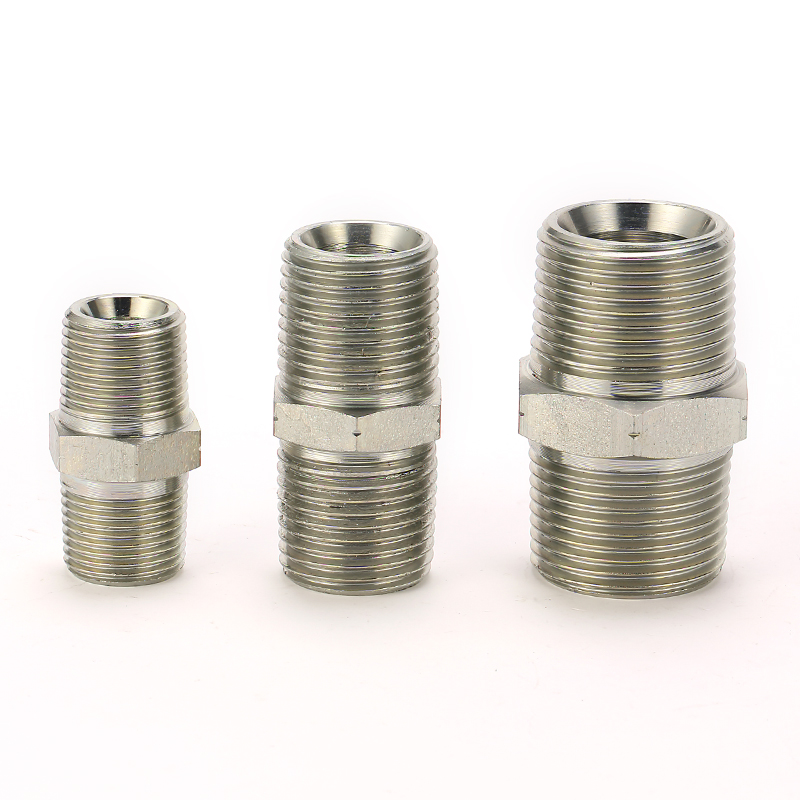

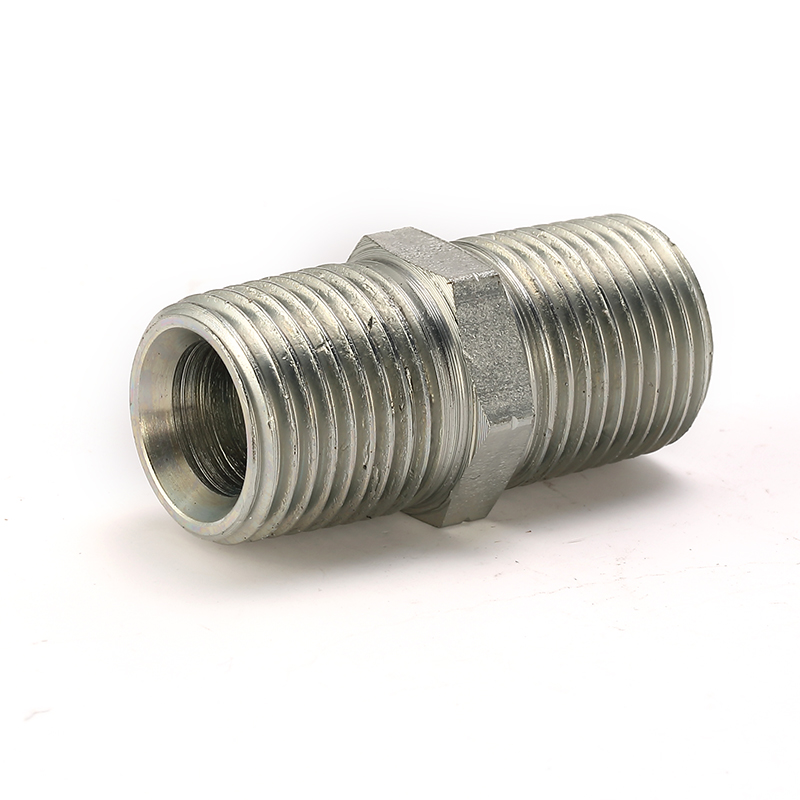

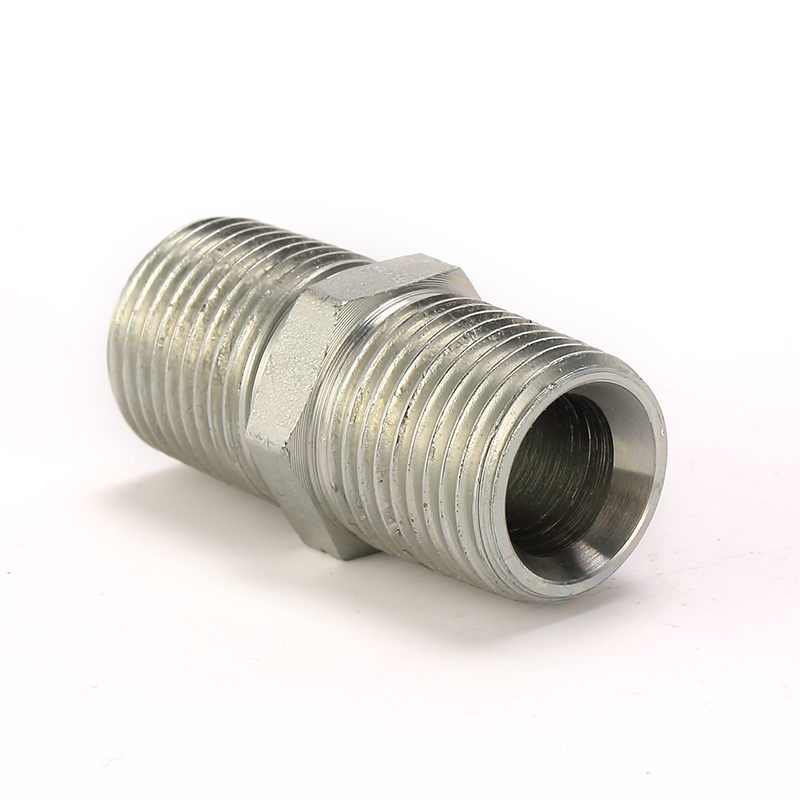

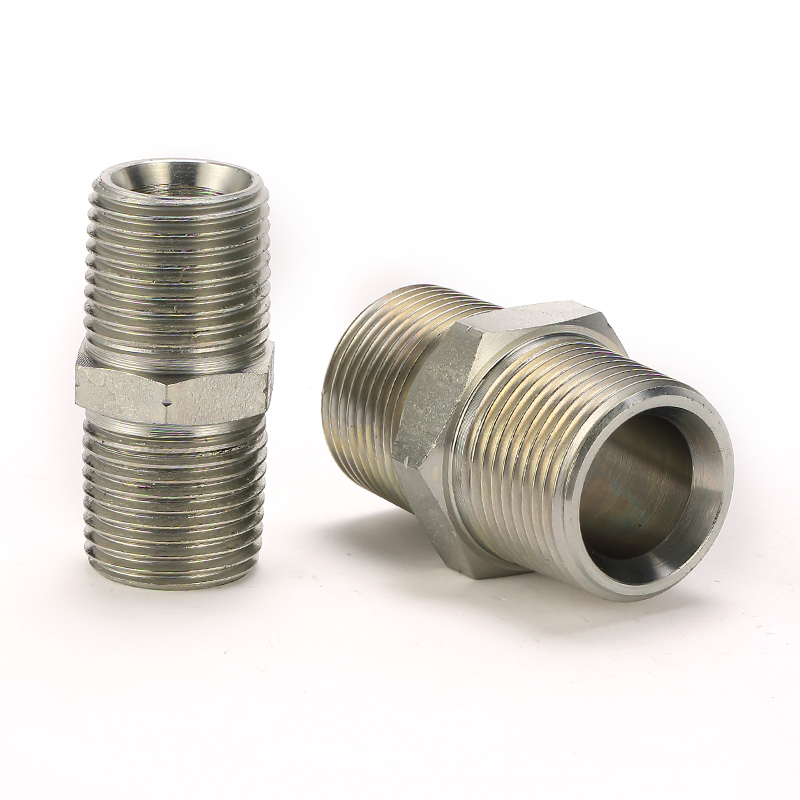

PEHEL Hydraulic Model: P1T-SP
QTY:
