PART NO. THREAD E HOSE BORE DIMENSIONS DN DASH A B C S1 20411-12-04PK AST M12X1.5 6 04 46 24 1.5 17 20411-14-04PK AST M14X1.5 6 04 46 24 2.5 19 20411-18-08PK AST M18X1.5 12 08 61 27 3.5 24 20411-22-04PK AST M22X1.5 6 04 50 28 3 27 20411-22-10PK AST M22X1.5 16 10 67 28.2 3 27 20411-26-12PK AST M26X1.5 20 12 71 31.9 2 32 20411-30-16PK AST M30X1.5 25 16 79.5 34.7 4 36 20411-45-16PK AST M45X1.5 25 16 84.3 49.5 5.5 55 20411-45-20PK AST M45X1.5 32 20 87.8 40.8 5.5 55

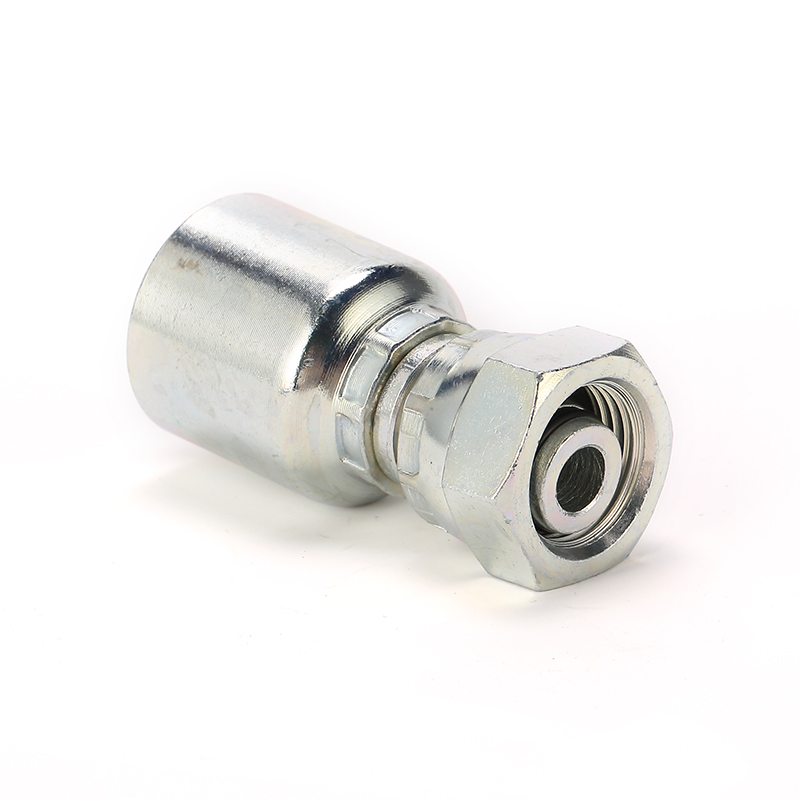

PEHEL |Metric Female 24° Cone 0-ring L.T. Hydraulic One-Piece Fitting| Heat treated carbon steel
PEHEL Hydraulic Model: P20411-PK
QTY:
Hydraulic Metric 45deg Light Series Hose Fitting
Material: Carbon steel, Stainless Steel, Aluminium, Brass
Brand: Pehel, OEM
Color: Silver
Connector Type: Straight
Thread Type: Hydraulic Hose One-Piece Fitting
1. CNC one-piece precision machining with tiny dimensional tolerances, perfectly matched with DIN / SAE standard hydraulic sleeves and fittings.
2. Multiple thread specifications available: metric, British, American threads, one-stop fit for all types of hydraulic pipelines.
3. High-strength 45# carbon steel with quenching & tempering heat treatment, high tensile and compressive resistance, resistant to deformation and cracking under high pressure.
4. Precision seamless base material without sand holes or air pores, eliminating risk of leakage under high pressure.
5. Galvanized & passivated anti-rust surface coating, anti-oxidation for humid outdoor environments, greatly extended service life.
