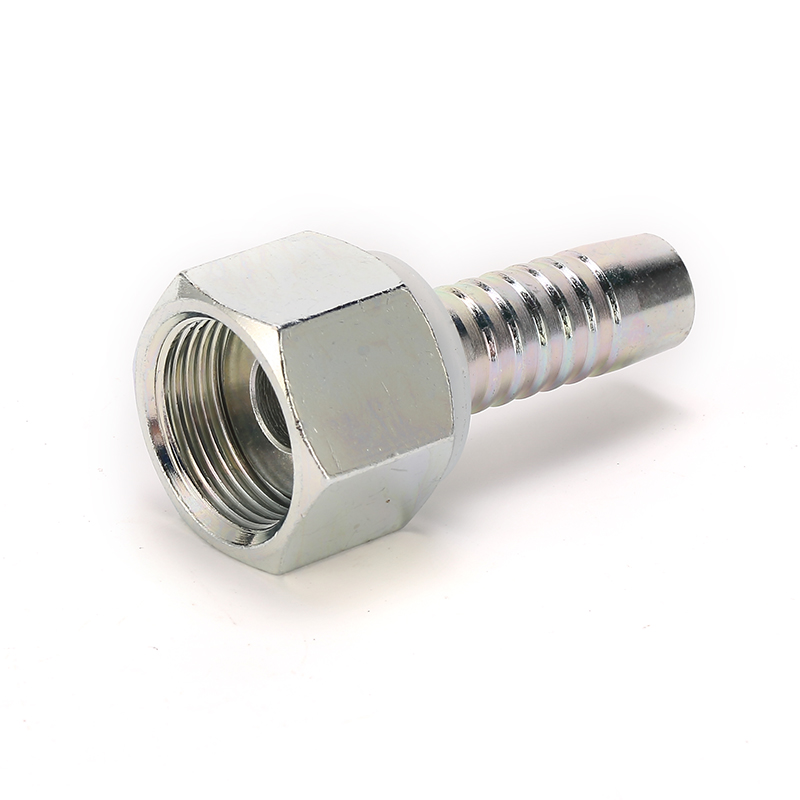

METRIC FEMALE FLAT SEAT

Model: P20211-T

QTY:


  • You May Also Like

  • PART NO. THREAD E HOSE BORE DIMENSIONS
    DN DASH C S2 Per hundred weight
    Weight per case
    P20211-10-02 M10X1 4 2 6 14 500
    P20211-12-03 M12X1.25 5 3 8 17 400
    P20211-14-04T M14X1.5 6 4 8.5 19 2.7 300
    P20211-14-05 M14X1.5 8 5 8.5 19 3.3 300
    P20211-16-04T M16X1.5 6 4 8 22 3.3 250
    P20211-16-05T M16X1.5 8 5 8 22 3.4 250
    P20211-16-06 M16X1.5 10 6 8 22 4.6 200
    P20211-18-05T M18X1.5 8 5 8 24 4.9 200
    P20211-18-06T M18X1.5 10 6 8 24 4.9 200
    P20211-20-06T M20X1.5 10 6 10 24 6.1 150
    P20211-20-08 M20X1.5 12 8 10 27 7.5 125
    P20211-22-06T M22X1.5 10 6 10 27 7.5 100
    P20211-22-08T M22X1.5 12 8 10 27 8 100
    P20211-22-10 M22X1.5 16 10 10 27 8.5 250
    P20211-24-08T M24X1.5 12 8 11 30 10.6 100
    P20211-24-10 M24X1.5 16 10 10.5 30 200
    P20211-27-08T M27X1.5 12 8 10 32 10.7 170
    P20211-27-10T M27X1.5 16 10 10 32 12 150
    P20211-30-12 M30X1.5 20 12 11 36 120
    P20211-33-14 M33X2 22 14 13 41 100
    P20211-36-12T M36X2 20 12 13 41 80
    P20211-36-14T M36X2 22 14 13 41 70
    P20211-39-16T M39X2 25 16 13 46 32.8 60
    P20211-42-20 M42X2 32 20 15 50 37.2 40
    P20211-45-20T M45X2 32 20 15 55 40
    P20211-52-24T M52X2 40 24 17 60 66.7 25
    P20211-60-28T M60X2 45 28 20 70 15
    P20211-64-32T M64X2 50 32 23 75 15
