PART NO. E (THREAD E) HOSE BORE (DN) HOSE BORE (DASH) DIMENSIONS (A) DIMENSIONS (B) DIMENSIONS (H) DIMENSIONS (S1) Per hundred weight Weight per case 26741-06-06PK 9/16"X18 10 6 70 48 20 19 10.1 50-80 26741-08-06PK 3/4"X16 10 6 70 48 21 24 12 60 26741-08-08PK 3/4"X16 12 8 88 59.5 23.5 24 17.2 40 26741-10-10PK 7/8"X14 16 10 108 70.9 25 27 17 50 26741-12-12PK 1.1/16"X12 20 12 118 78.4 30 32 33.2 40 26741-16-16PK 1.5/16"X12 25 16 132.5 87.5 31.5 38 58.5 25 26741-20-20PK 1.5/8"X12 32 20 145.8 98.8 37 50 15 26741-24-24PK 1.7/8"X12 40 24 155 116.6 43 60 12 26741-32-32PK 2.1/2"X12 50 32 184.5 137.3 51 73 8/10
PEHEL | 45°JIC Female 74°Cone Seat Hydraulic One-piece Fitting | Fast Delivery In Stock
PEHEL Hydraulic Model: 26741-PK
QTY:

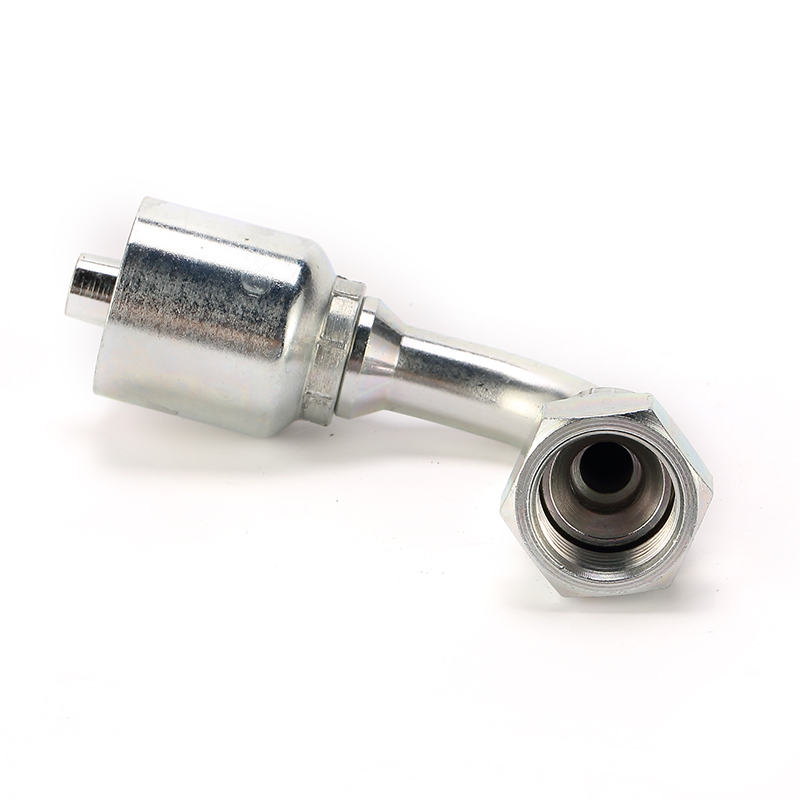

45 degree elbow jic female swivel hose fitting
Material: Carbon steel, Stainless Steel, Aluminium, Brass
Brand: Pehel, OEM
Color: Silver
Connector Type: STRAIGHT
Thread Type: HYDRAULIC HOSE ONE-PIECE FITTING
1. Precision-machined with strict tolerance control
2. Smooth inner bore, reduce jamming caused by impurities
3. Premium surface treatment for good rust resistance
4. Batch-inspected, stable & controllable quality
5. Consistent quality for bulk orders
