PART NO. HOSE BORE DIMENSIONS Price DN DASH D L Per hundred weight Weight per case P00200-03 4 3 20.6 27 Price 3.2 1000 P00200-04 6 4 21 30 Price 3.5 500 P00200-05 8 5 24 31 Price 5.1 500 P00200-06 10 6 25.5 32 Price 5.2 350 P00200-08 12 8 30 34 Price 6.5 250 P00200-10 16 10 33.4 37 Price 8 180 P00200-12 20 12 38 43 Price 12 176 P00200-16 25 16 46 50 Price 19 84 P00200-20 32 20 56 59 Price 32 54
PEHEL |SAE 100 R2 AT/EN 853 2SN| HIGH STRENGTH HYDRAULIC HOSE FERRULE
PEHEL Hydraulic Model: 00200
QTY:

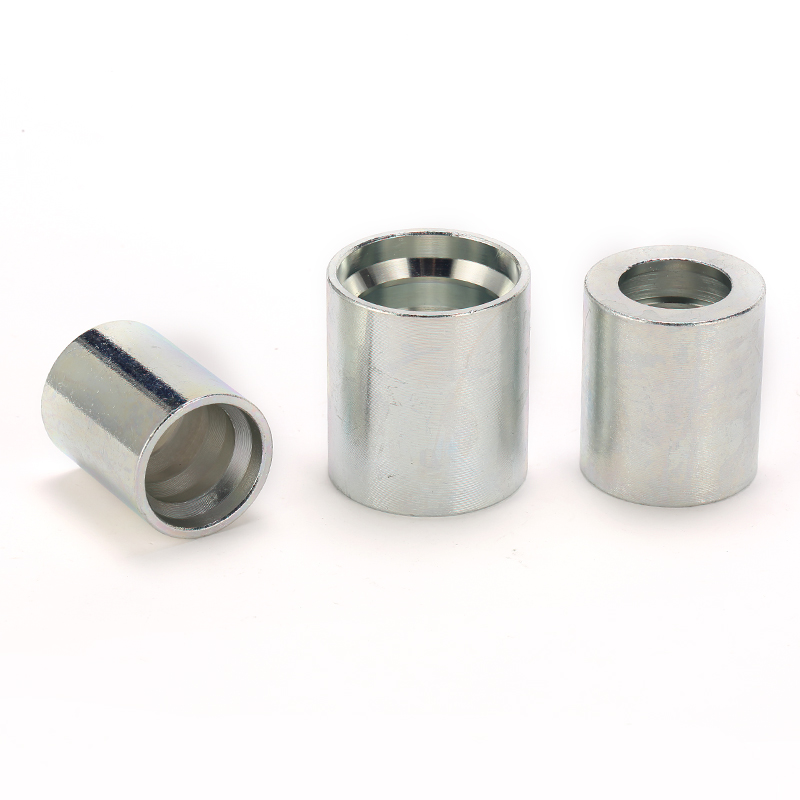

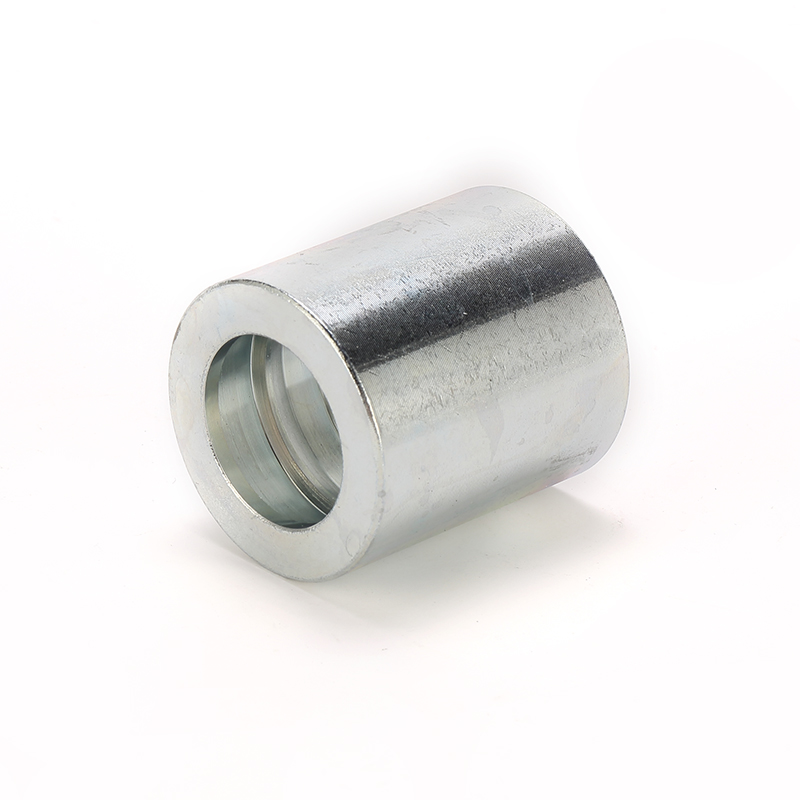

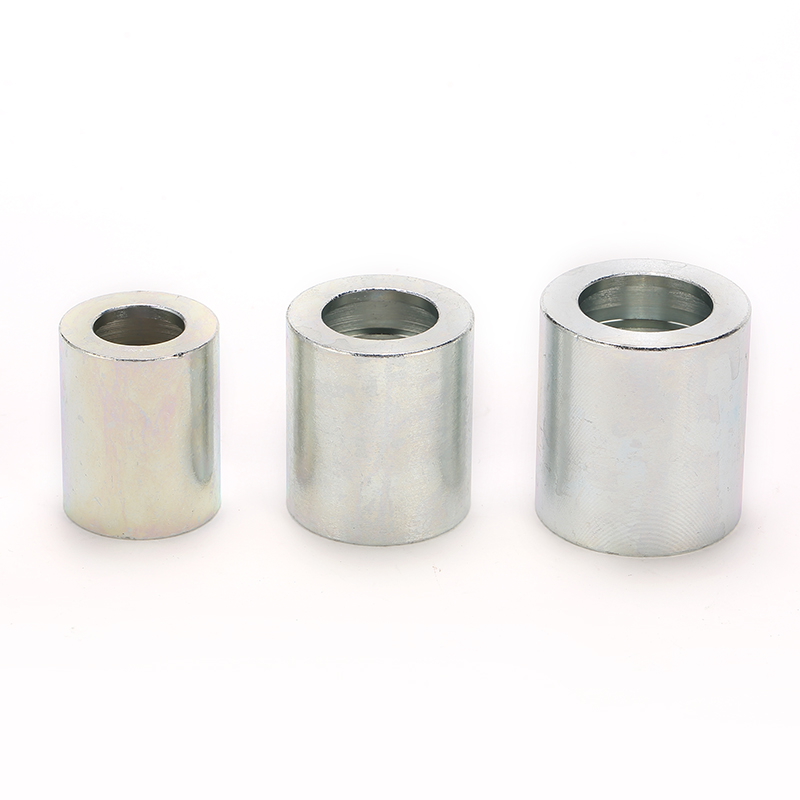

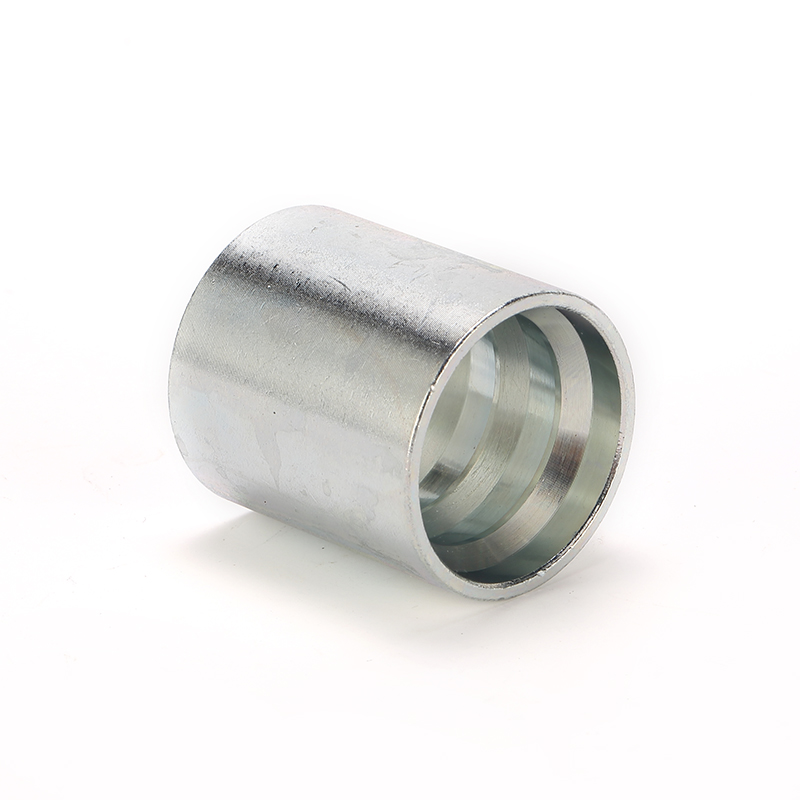

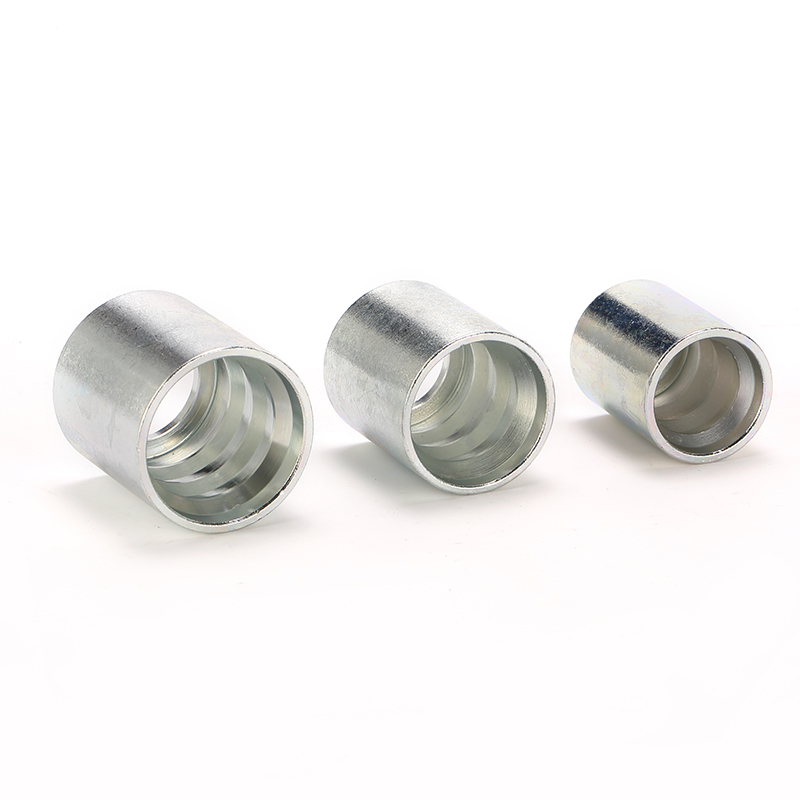

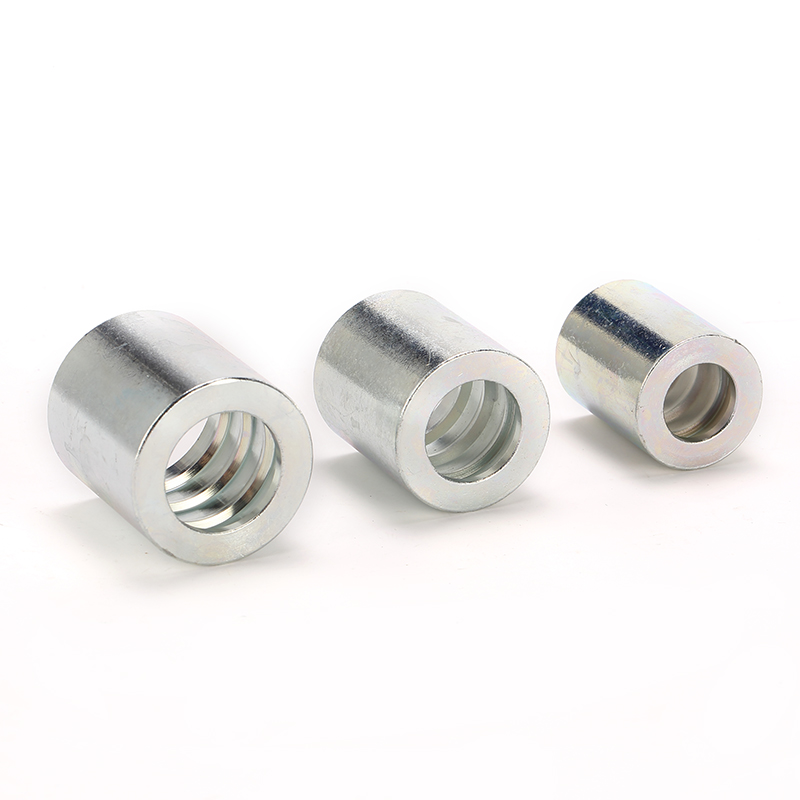

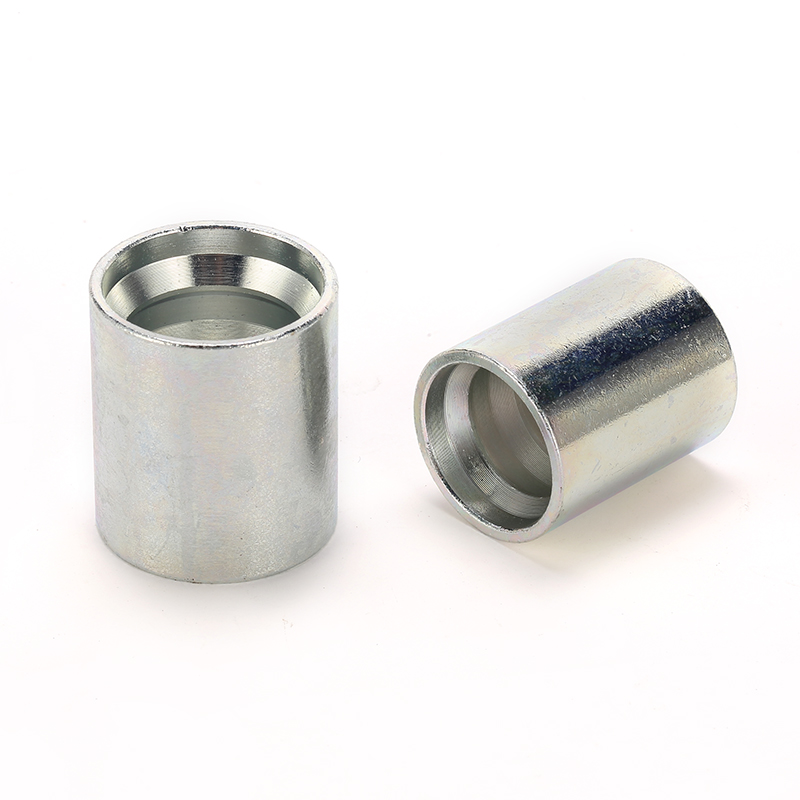

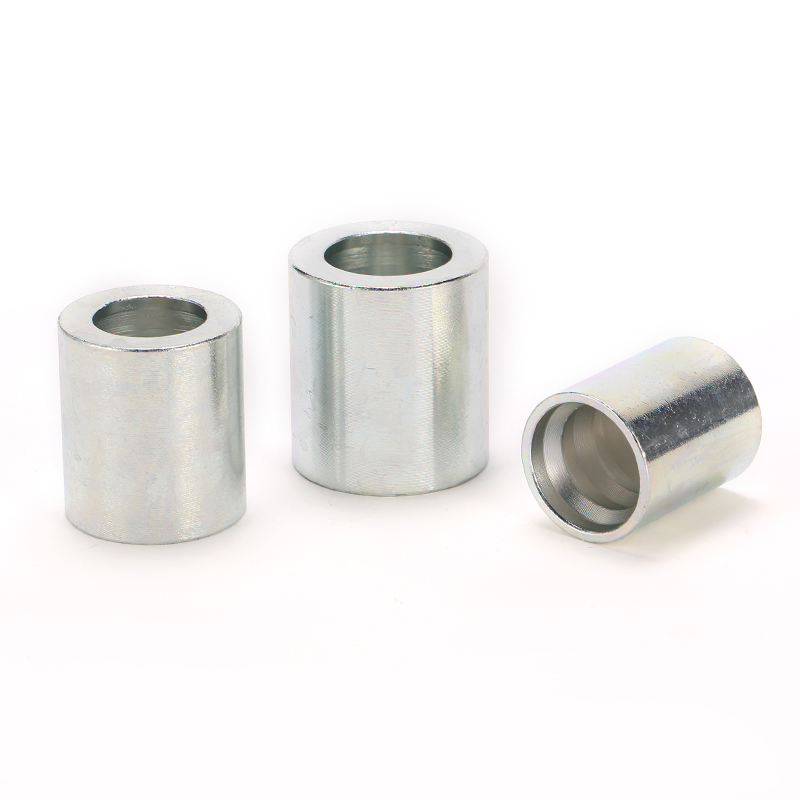

00200 Hydraulic hose ferrule fitting for SAE100 R2 hose hydraulic ferrule sleeve fitting
Two wire Ferrule Description: the material is Q235 steel. P00200 is used for 2 wires braid hose, our hydraulic ferrule is with high quality.00200: it is used for 2 wire braid skived hose, if you need non-skived, pls order 00210.
Material: Carbon steel, Stainless Steel, Aluminium, Brass
Brand: Pehel, OEM
Color: Silver
Connector Type: Straight
Thread Type: HYDRAULIC HOSE FERRULE
1. Smooth inner bore for smooth hose assembly
2. High-strength carbon steel material for heavy-duty use
3. Stable crimp performance under high-pressure cycles
4. Standard size for wide-range hydraulic hose applications
