代号
PART NO.螺纹 THREAD 胶垫 CAPTIVE 尺寸 DIMENSIONS A L S1 4MN-10WD M10X1 WD-B02 8 12 5 4MN-12WD M12X1.5 WD-M12 12 17 6 4MN-14WD M14X1.5 WD-B04 12 17 6 4MN-16WD M16X1.5 WD-M16 12 17 8 4MN-18WD M18X1.5 WD-M18 12 17 8 4MN-20WD M20X1.5 WD-M20 14 19 10 4MN-22WD M22X1.5 WD-M22 14 19 10 4MN-26WD M26X1.5 WD-B12 16 21 12 4MN-27WD M27X2 WD-B12 16 21 12 4MN-33WD M33X2 WD-B16 18 24.5 17 4MN-42WD M42X2 WD-B20 20 26.5 22 4MN-48WD M48X2 WD-B24 22 28.5 24

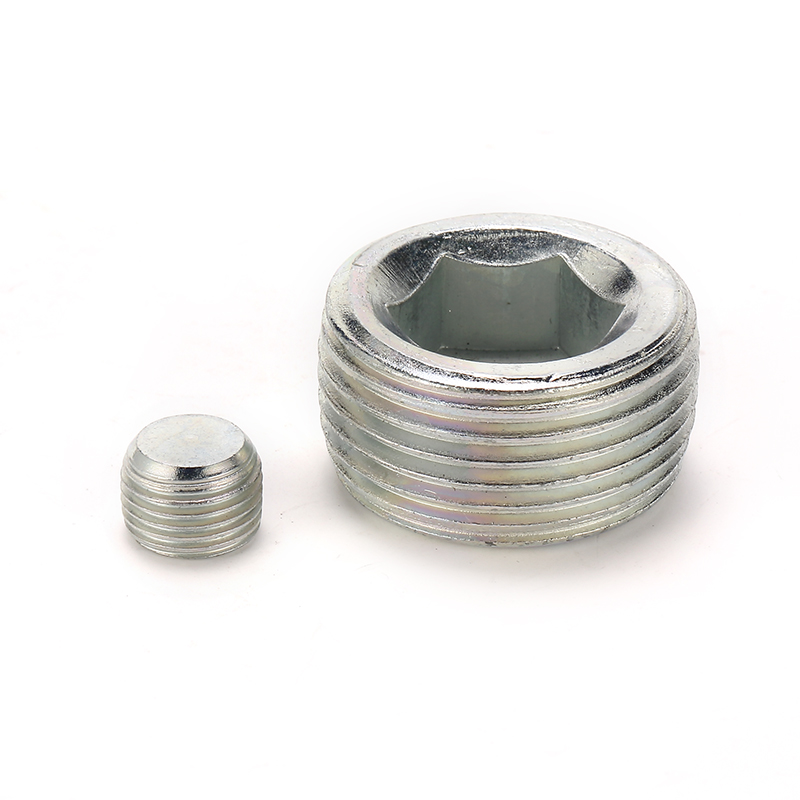

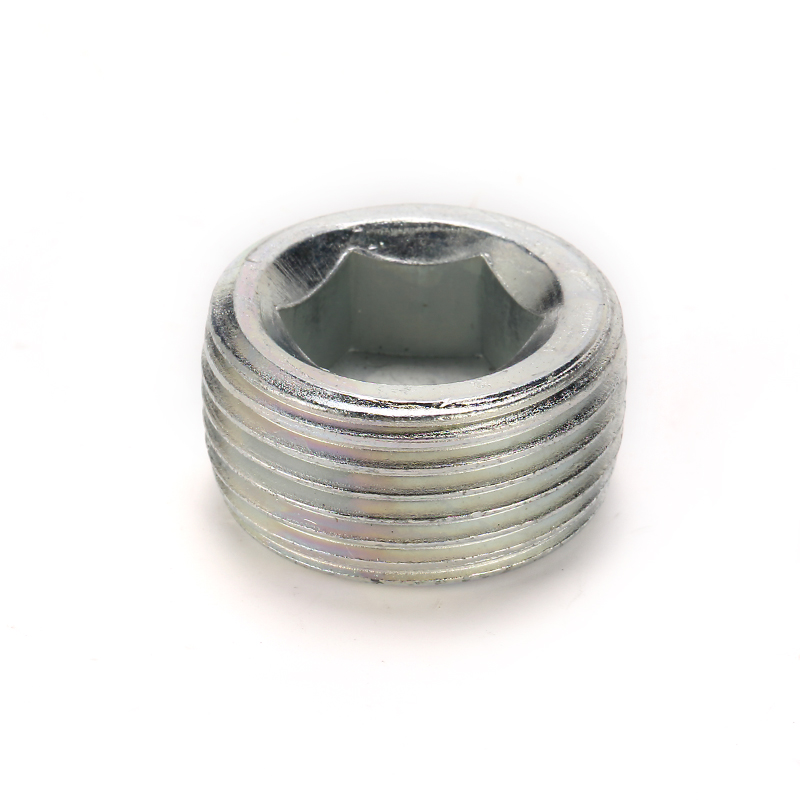

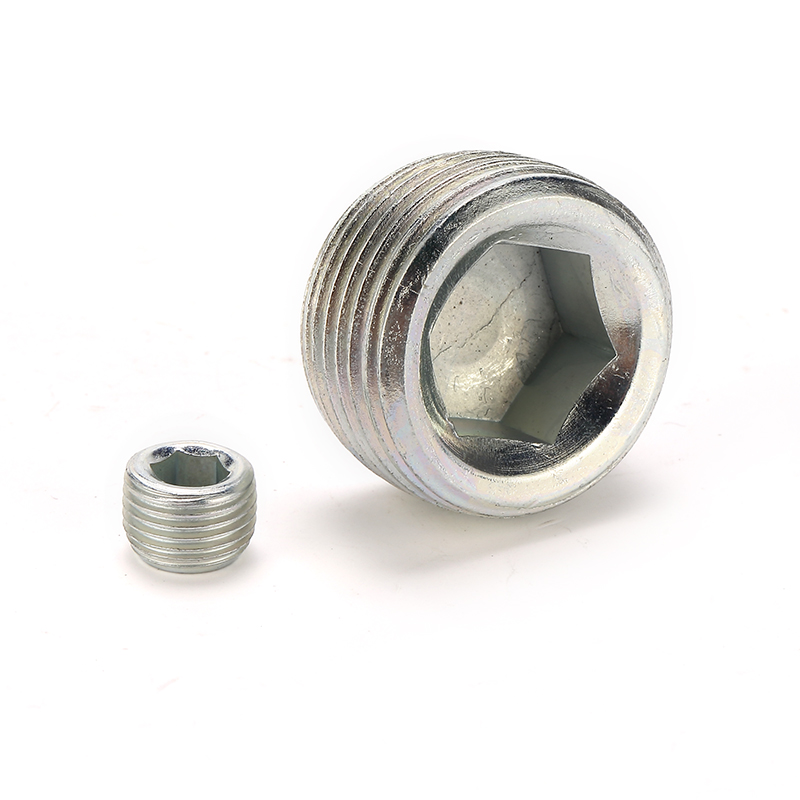

PEHEL|Metric Male Hollow Hex Plug Hydraulic Connector|Direct Factory Supply
PEHEL Hydraulic Model: P4MN
QTY:
Material: Carbon steel, Stainless Steel, Aluminium, Brass
Brand: Pehel, OEM
Color: Silver
Connector Type: STRAIGHT
Thread Type: HYDRAULIC HOSE ADAPTER
1. tested before delivery, extremely low defective rate
2. Custom non-standard connectors available, material test reports provided
3. Moisture-proof export packaging, no damage during long-distance transportation
4. In Stock, Fast Delivery, Custom Service Supported
