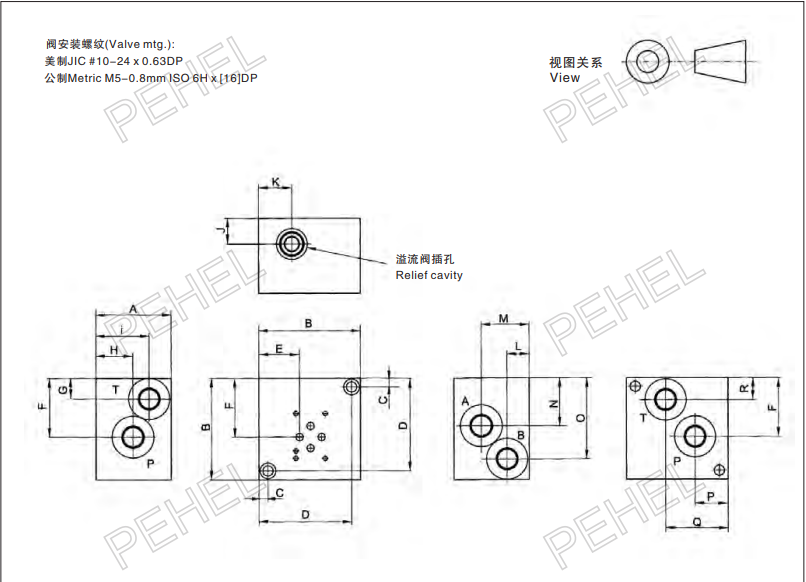

Dimension A B C D E F G H I *D03SPRV*6* 2.25 3 0.31 2.69 0.97 2 0.69 1.66 1.66 *D03SPRV*8* 3 3.5 0.38 3.12 1.34 2.19 0.81 1.5 2 *D03SPRV*12* 3 4 0.38 3.63 1.59 2.38 0.84 1.5 2.13
Pehel | PHAS338PL | Hydraulic Aluminum Subpalte With Relief Cavity Oil Blocks
PEHEL Hydraulic Model: PHAS338PL
QTY:
- 1. Sub plate, with ports A-B on side, P-T on rear, 3/8”G.
2. with relief valve (RV). Weight=0.6 kg
3. Max operating pressure: 210 bar.
4. Material: aluminum
5. Scientific design and precise manufacturing Material: Aluminum
Brand: Pehel, OEM
Color: Silver
Surface Treatment: Oxidation
About the item:
1. The hydraulic oil block and manifold reduce piping and leaks.
2. The oil block integrates valves into one compact unit.
3. The manifold subplate simplifies installation and alignment.
4. The hydraulic oil block enables customized circuit design.
5. The manifold and manifold subplate improve system reliability.
