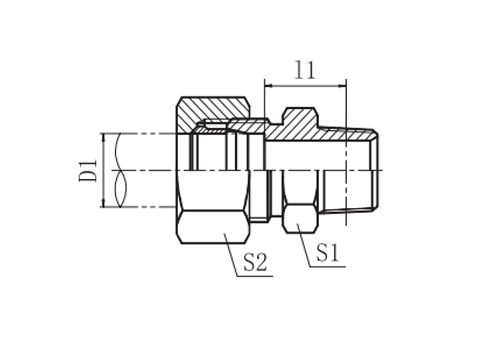

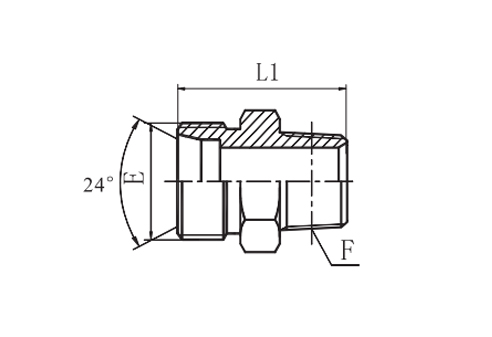

THREAD TUBE O.D. DIMENSIONS PART NO. MPa E F D1 I1 L1 S1 S2 1CN-12-02 M12×1.5 Z1/8"×27 6 14.4 25.5 12 14 25 L 1CN-12-04 M12×1.5 Z1/4"x18 6 17.2 30 17 14 1CN-14-04 M14×1.5 Z1/4"X18 8 17.2 30 14 17 1CN-16-04 M16×1.5 Z1/4"X18 10 18.2 31 17 19 1CN-16-06 M16×1.5 z318"×18 10 19.9 33 19 19 1CN-18-04 M18×1.5 Z1/4"X18 12 19.2 32 19 22 1CN-18-06 M18×1.5 Z3/8"X18 12 19.9 33 19 22 1CN-18-08 M18×1.5 z1/2"×14 12 21.4 36.5 22 22 1CN-22-08 M22×1.5 Z1/2"X14 15 22.4 37.5 24 27 1CN-22-20 M22×1.5 Z1.1/4""X11.5 15 29.8 47.5 46 27 1CN-26-08 M26×1.5 Z1/2"X14 18 22.9 38.5 27 32 16 L 1CN-26-12 M26×1.5 Z3/4"X14 18 22.4 38.5 30 32 1CN-30-08 M30x2 Z1/2"X14 22 24.9 40.5 32 36 1CN-30-12 M30×2 Z3/4"X14 22 24.4 40.5 32 36 1CN-36-16 M36x2 z1"x11.5 28 29.8 47.5 41 41 1CN-36-20 M36×2 z1.114"x11.5 28 31.3 49.5 46 41 1CN-45-20 M45x2 z1.114"×11.5 35 30.3 51.5 46 50 1CN-52-20 M52×2 Z1.1/4""×11.5 42 31.8 53.5 55 60 1CN-52-24 M52×2 z1.1/2"x11.5 42 32.8 54.5 55 60 1DN-14-04 M14×1.5 Z11/4"x18 6 22.2 35 17 17 1DN-16-04 M16x1.5 Z1/4"x18 8 22.2 35 17 19 40 S 1DN-18-04 M18x1.5 Z1/4"X18 10 21.7 35 19 22 1DN-18-06 M18×1.5 Z3/8"x18 10 22.4 36 19 22 1DN-20-04 M20×1.5 Z1/4"X18 12 23.7 37 22 24 1DN-20-06 M20×1.5 Z3/8"×18 12 24.4 38 22 24 1DN-20-08 M20×1.5 Z1/2"X14 12 26.4 42 22 24 1DN-22-08 M22×1.5 z1/2"X14 14 27.4 43.5 24 27 1DN-24-08 M24X1.5 z1/2"X14 16 26.9 43.5 27 30 1DN-30-12 M30x2 Z3/4"X14 20 28.4 47.5 32 36 25 S 1DN-36-12 M36x2 z3/4"X14 25 30.9 51.5 41 46 1DN-36-16 M36x2 z1"x11.5 25 35.3 57.5 41 46 1DN-42-16 M42x2 z1"x11.5 30 35.8 59.5 46 50 1DN-42-20 M42×2 z1.1/4"×11.5 30 36.3 60.5 46 50 1DN-52-24 M52x2 z1.1/2"×11.5 38 39.8 66.5 55 60

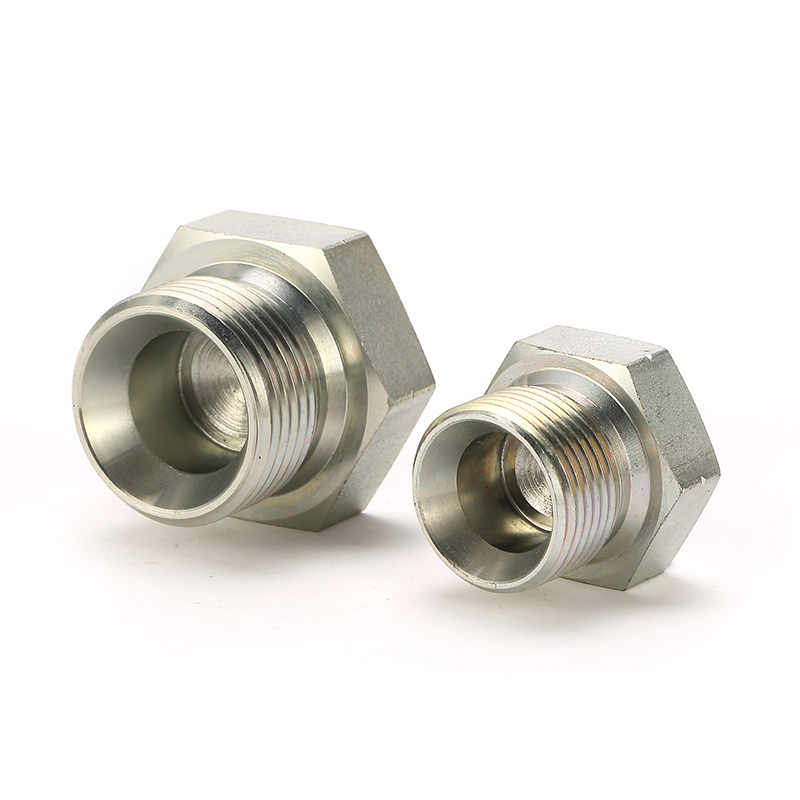

PEHEL | NPT Male x Metric 24° Cone Male Hydraulic Adapter, Carbon Steel Straight Fitting
PEHEL Hydraulic Model: P1CN P1DN/P1CN-RN P1DN-RN
QTY:
Type: NPT Male to Metric 24° Cone Male Adapter
End 1: NPT Male (tapered)
End 2: Metric Male 24° Cone
Material: Carbon steel
Brand: PEHEL, OEM
Surface Treatment: Zinc‑plated
1.NPT male to metric 24° cone male adapter, designed as a straight fitting for transitioning between NPT male threaded ports and metric 24° cone male connections.
2.NPT male end features tapered threads for metal‑to‑metal sealing when assembled with NPT female ports.
3.Metric 24° cone male end provides reliable sealing against corresponding female cones using the cone angle engagement.
4.Straight body configuration allows direct inline conversion between the two thread types without changing flow direction.
5.Manufactured from high‑strength carbon steel with anti‑rust surface treatment for durability.
