PART NO.THREAD TUBE O.D. DIMENSIONS
MPaE,F,G,H D1,D2,D3,D4 l1 L1 S1 S2 XC-12 M12X1.5 6 12 27 12 14 31.5 L XC-14 M14X1.5 8 14 29 12 17 XC-16 M16X1.5 10 15 30 14 19 XC-18 M18X1.5 12 17 32 17 22 XC-22 M22X1.5 15 21 36 19 27 XC-26 M26X1.5 18 23.5 40 24 32 XC-30 M30X2 22 27.5 44 27 36 16 L XC-36 M36X2 28 30.5 47 36 41 XC-45 M45X2 35 34.5 56 41 50 XC-52 M52X2 42 40 63 50 60 XD-14 M14X1.5 6 16 31 12 17 63 S XD-16 M16X1.5 8 17 32 14 19 XD-18 M18X1.5 10 17.5 34 17 22 XD-20 M20X1.5 12 21.5 38 17 24 XD-22 M22X1.5 14 22 40 19 27 XD-24 M24X1.5 16 24.5 43 24 30 40 S XD-30 M30X2 20 26.5 48 27 36 XD-36 M36X2 25 30 54 36 46 XD-42 M42X2 30 35.5 62 41 50 XD-52 M52X2 38 41 72 50 60 31.5 S Note:In case if you are interested to order the adapter in complete set with cutting ring

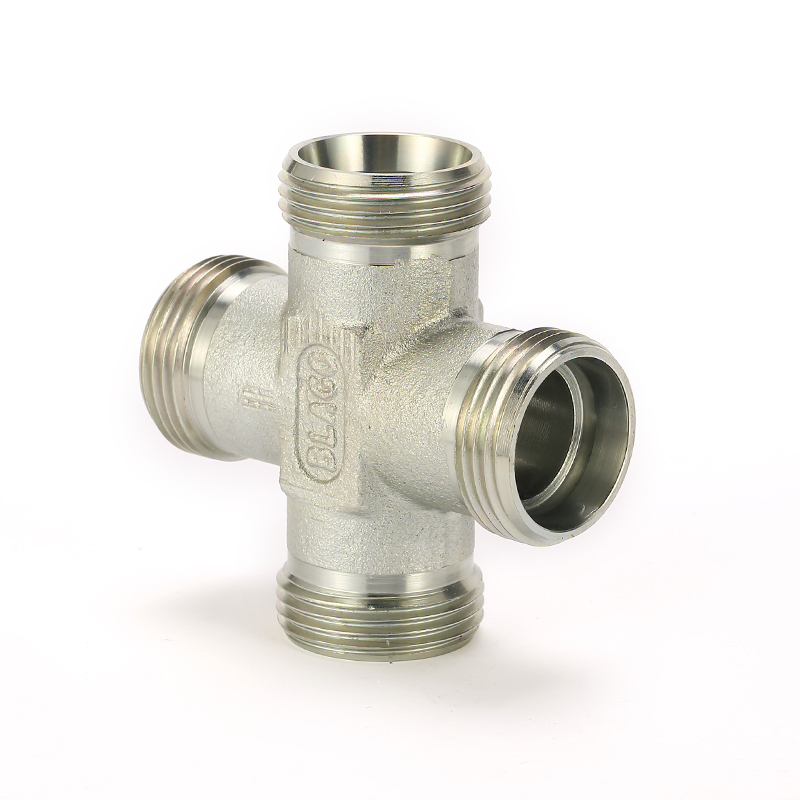

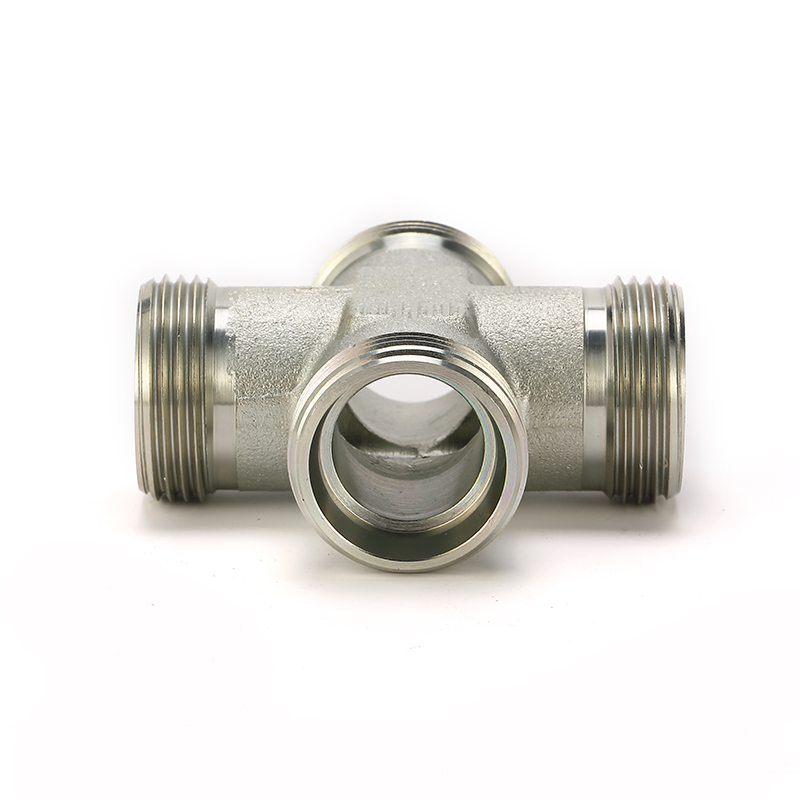

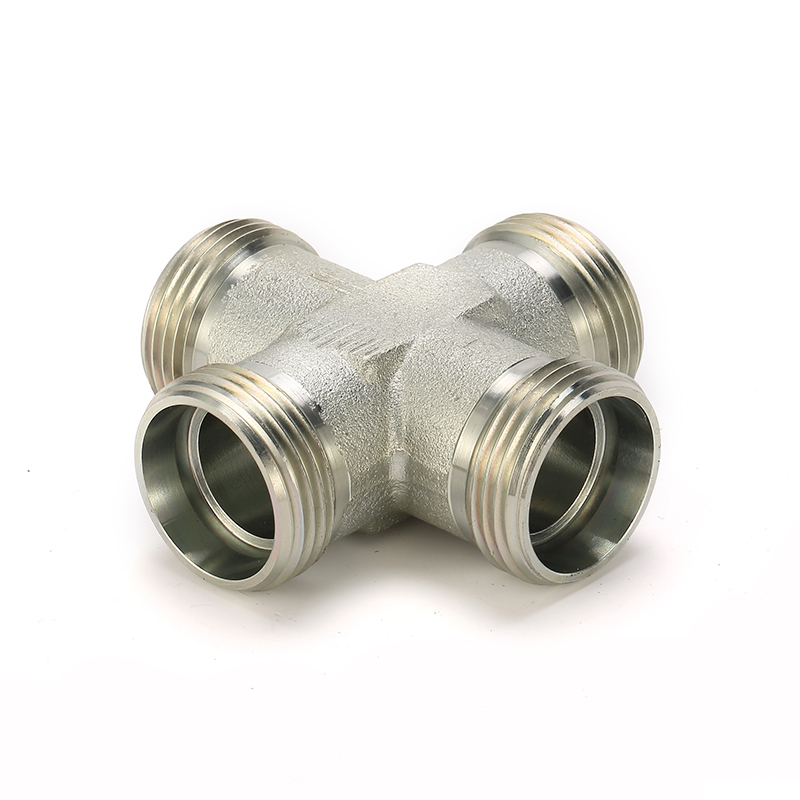

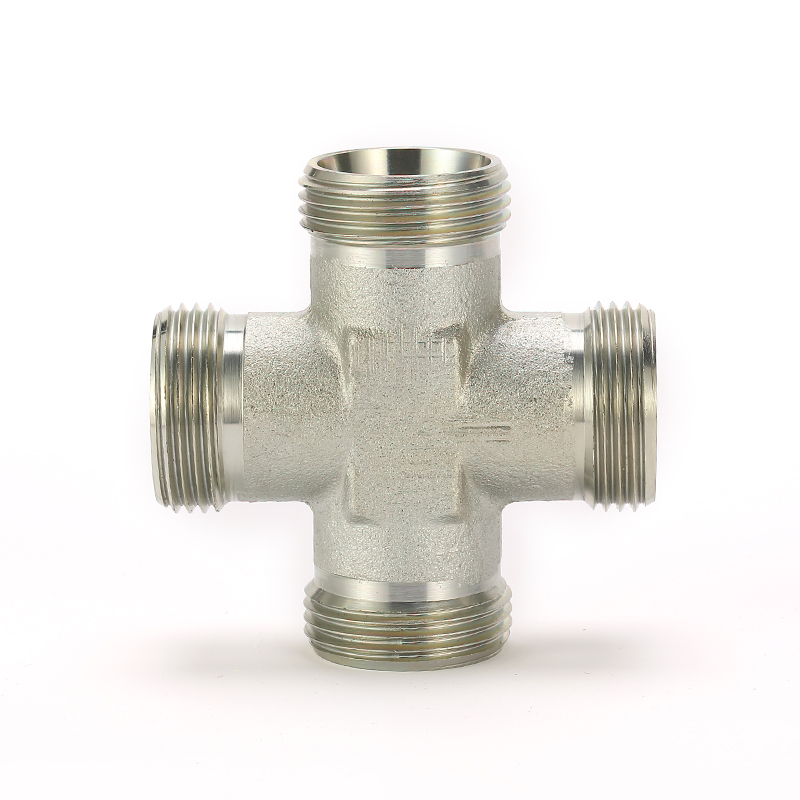

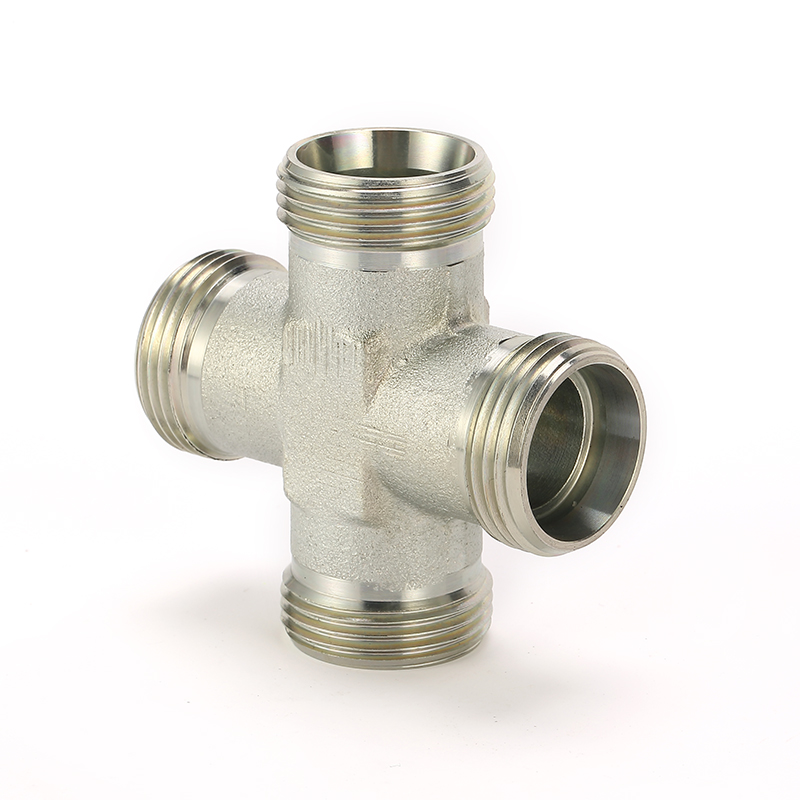

Cross Fittings
PEHEL Hydraulic Model: XC-XD
QTY:
