Home / Hydraulic Adapter / British Standard / BSP MALE DOUBLE USE FOR 60ºS EAT OR BOUNED SEAL-P1B

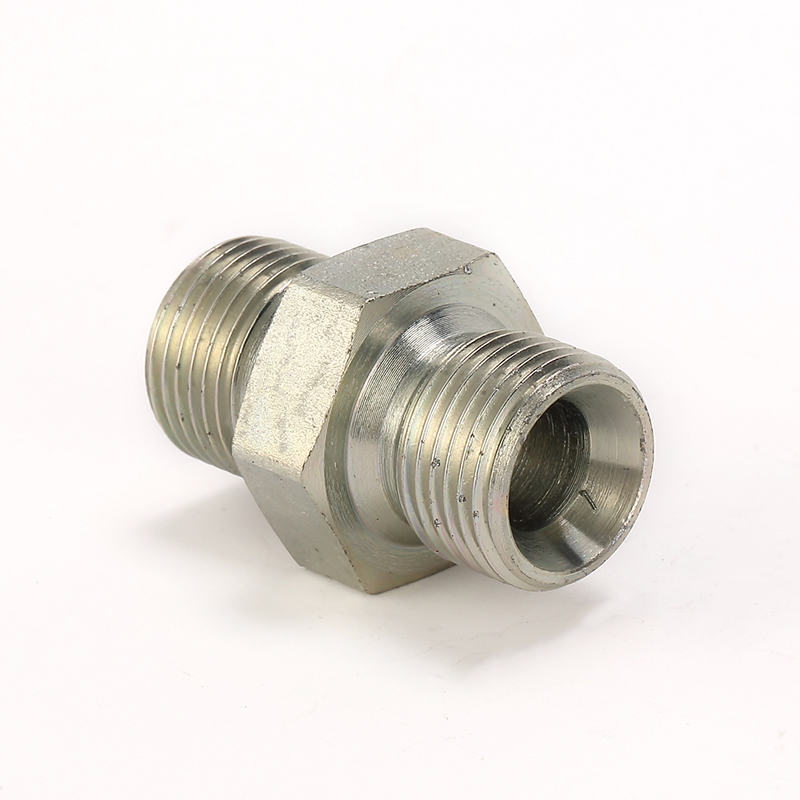

BSP MALE DOUBLE USE FOR 60ºS EAT OR BOUNED SEAL-P1B

BSP MALE DOUBLE USE FOR 60ºS EAT OR BOUNED SEAL-P1B

PEHEL Hydraulic Model: P1B

QTY:


  • Material:Carbon  steel

    Brand:Pehel,  OEM

    Color: Silver

    Connector Type: Adapter

    Thread Type: BSP

    Surface Treatment: CR3+ White Zinc Plated



  • About the item:



  • 1. Unique twin-thread design with BSP male thread on both ends —  maximizing space efficiency in one fastener.

  • 2.Choose between high-strength carbon steel​ and stainless steel​ grades — carbon steel comes with silver zinc plated​ finish, stainless steel offers superior corrosion resistance for harsh environments.

  • 3.Uniform silver zinc plating​ creates a sacrificial corrosion barrier, ideal for outdoor, industrial and humid applications — extends service life and reduces maintenance.

  • 4.Available as Pehel branded​ products or OEM​ private-label supply — custom sizes, thread specs, packaging and certifications available to meet bulk procurement needs.

  • 5. 60° cone seat sealing provides zero leakage via the close engagement of internal and external threads.

  • Specification
  • Features
  • You May Also Like
  • 代号 PART NO.
    螺纹 THREAD E
    螺纹 THREAD F
    尺寸 DIMENSIONS A
    尺寸 DIMENSIONS B
    尺寸 DIMENSIONS L
    尺寸 DIMENSIONS S1
    1B-02
    G1/8"X28
    G1/8"X28
    10
    10
    26
    14
    1B-02-04
    G1/8"X28
    G1/4"X19
    10
    12
    28
    16
    1B-02-06
    G1/8"X28
    G3/8"X19
    10
    12.5
    31.5
    22
    1B-02-08
    G1/8"X28
    G1/2"X14
    10
    16
    36
    27
    1B-04
    G1/4"X19
    G1/4"X19
    12
    12
    30
    19
    1B-04-06
    G1/4"X19
    G3/8"X19
    12
    13.5
    33.5
    22
    1B-04-08
    G1/4"X19
    G1/2"X14
    12
    16
    38
    27
    1B-04-10
    G1/4"X19
    G5/8"X14
    12
    17.5
    39.5
    30
    1B-06
    G3/8"X19
    G3/8"X19
    13.5
    13.5
    35
    22
    1B-06-08
    G3/8"X19
    G1/2"X14
    13.5
    16
    39.5
    27
    1B-06-10
    G3/8"X19
    G5/8"X14
    13.5
    17.5
    41
    30
    1B-06-12
    G3/8"X19
    G3/4"X14
    13.5
    18.5
    43
    32
    1B-08
    G1/2"X14
    G1/2"X14
    16
    16
    42
    27
    1B-08-10
    G1/2"X14
    G5/8"X14
    16
    17.5
    43.5
    30
    1B-08-12
    G1/2"X14
    G3/4"X14
    16
    18.5
    45.5
    32
    1B-10
    G5/8"X14
    G5/8"X14
    17.5
    17.5
    45
    30
    1B-10-12
    G5/8"X14
    G3/4"X14
    17.5
    18.5
    47
    32
    1B-10-16
    G5/8"X14
    G1"X11
    17.5
    20.5
    51.5
    41
    1B-12
    G3/4"X14
    G3/4"X14
    18.5
    18.5
    48
    32
    1B-12-16
    G3/4"X14
    G1"X11
    18.5
    20.5
    53.5
    41
    1B-12-20
    G3/4"X14
    G1 1/4"X11
    18.5
    20.5
    56
    50
    1B-16
    G1"X11
    G1"X11
    20.5
    20.5
    54
    41
    1B-16-20
    G1"X11
    G1 1/4"X11
    20.5
    20.5
    58
    50
    1B-16-24
    G1"X11
    G1 1/2"X11
    20.5
    23
    60.5
    55
    1B-20
    G1 1/4"X11
    G1 1/4"X11
    20.5
    20.5
    58
    50
    1B-20-24
    G1 1/4"X11
    G1 1/2"X11
    20.5
    23
    63
    55
    1B-24
    G1 1/2"X11
    G1 1/2"X11
    23
    23
    63
    55
    1B-24-32
    G1 1/2"X11
    G2"X11
    23
    25.5
    66.5
    70
    1B-32
    G2"X11
    G2"X11
    25.5
    25.5
    68
    70
    1B-40
    G2 1/2"X11
    G2 1/2"X11
    32
    32
    81
    90
    1B-48
    G3"X11
    G3"X11
    36
    36
    92
    100
  • Pehel/p1B/BSP MALE NIPPLE 60° Cone Seal
    Details

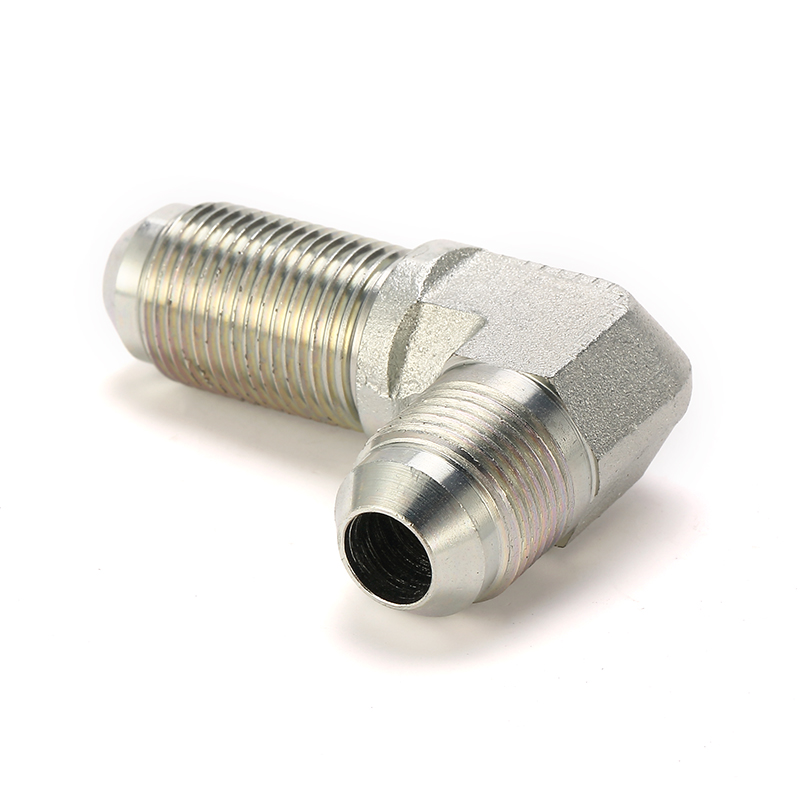

    PEHEL |90° Elbow JIC Male 74° Cone Seal Bulkhead

    Details

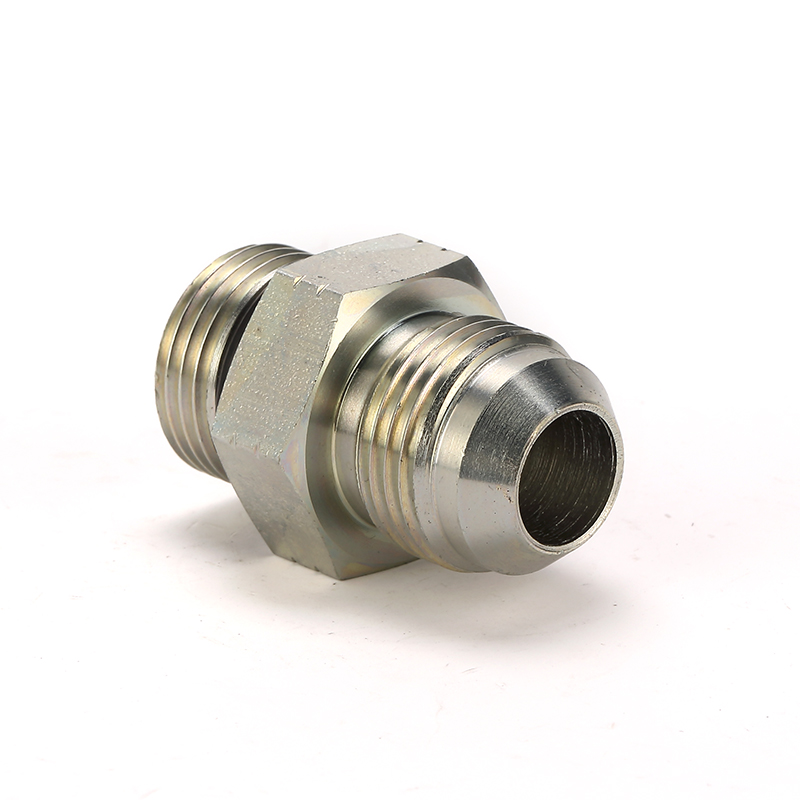

    Long JIC to ORB Adapter | 74° Cone Seal Male SAE O-Ring Male Fitting

    Details

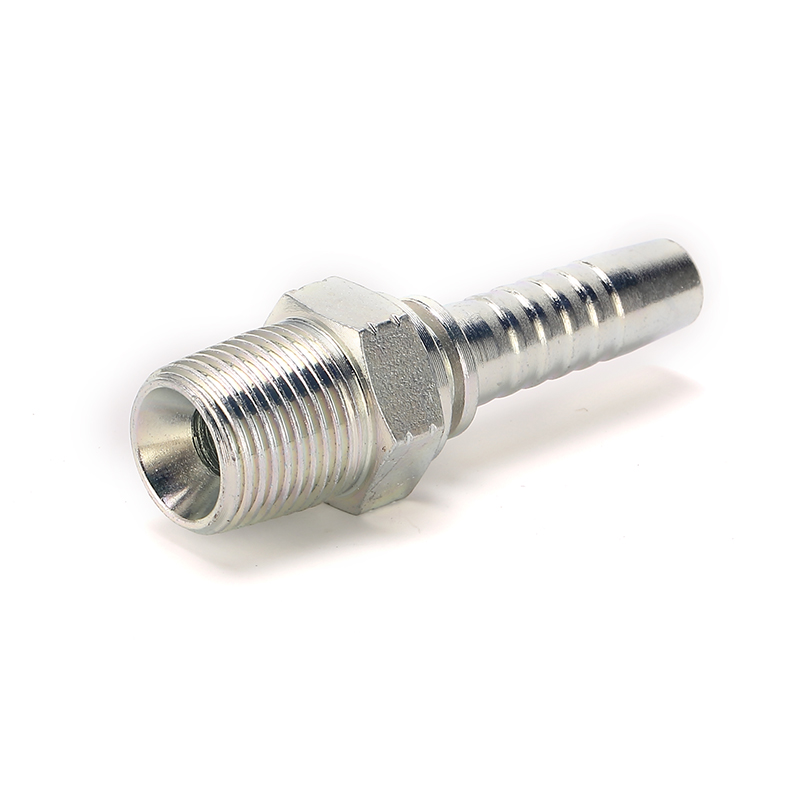

    Pehel/p15612/NPT Male 60° Cone Seal
