PEHEL|Metric Hydraulic Elbow Adapter ISO 8434-2 Male/Female 74° Cone 90° 2Q9

PEHEL Hydraulic Model: 2Q9

QTY:

Material:Carbon steel
Brand:Pehel, OEM
Color: Silver
Connector Type: elbow
Thread Type: Metric 74 Degree Cone Seal
Surface Treatment: Cr3+ White Zinc Plated
About the item:
· 1.Forged Construction: Ensures durability and strength for heavy-duty applications.
· 2.High Pressure Rating: Designed to withstand high-pressure hydraulic systems.
· 3. Zinc Plated Finish: Provides rust resistance and enhances longevity.
· 4. Strict tolerance crimp stem enables stable hose crimping, avoids hose pull-off & oil seepage.
· 5. Customizable Options: Available in various sizes and configurations for tailored solutions.

PART NO.	THREAD E	F	TUBE O.D. D	DIMENSIONS A	C	S1	S2	S3
2Q9-14	M14X1.5	M14X1.5	8	30.2	8.5	14	19	17
2Q9-16	M16X1.5	M16X1.5	10	32.5	8	16	22	19
2Q9-18	M18X1.5	M18X1.5	12	34	8	19	24	22
2Q9-22	M22X1.5	M22X1.5	14	37.5	10	22	27	27
2Q9-27	M27X1.5	M27X1.5	18	41.5	10	27	32	32
2Q9-30	M30X1.5	M30X1.5	20	45.8	11	30	36	36
2Q9-33	M33X2	M33X2	22	49.5	13	33	41	41
2Q9-36	M36X2	M36X2	25	51.5	13	36	41	41
2Q9-39	M39X2	M39X2	28	55.5	13	41	46	46
2Q9-45	M45X2	M45X2	34	62.5	15	48	55	50

Pehel / p03310 /FERRULE FOR SAE100R2AT/EN853 2SN HOSE
Details

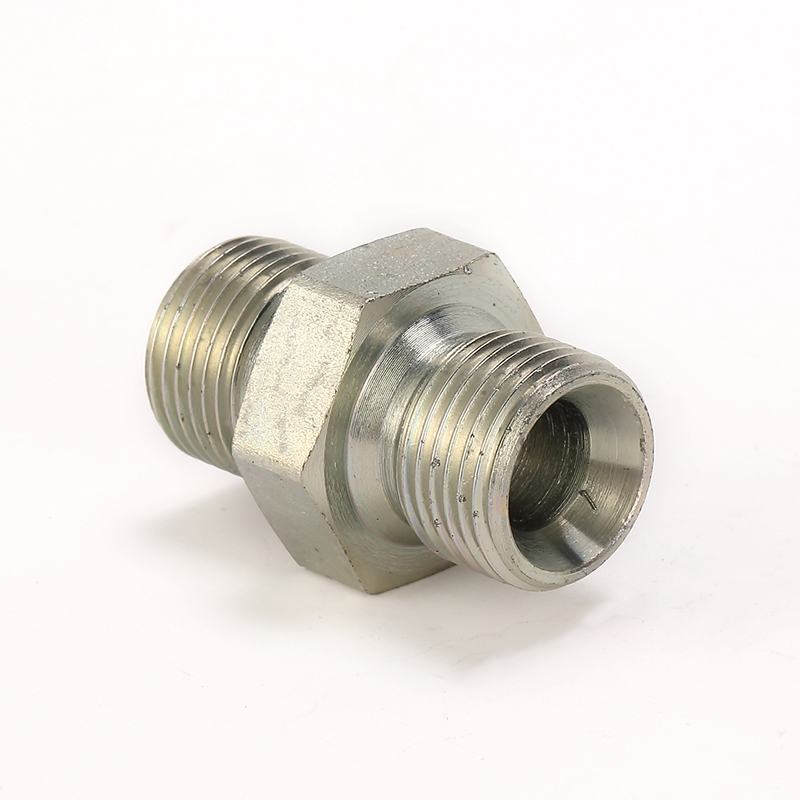

Pehel/p1B/BSP MALE NIPPLE 60° Cone Seal
Details

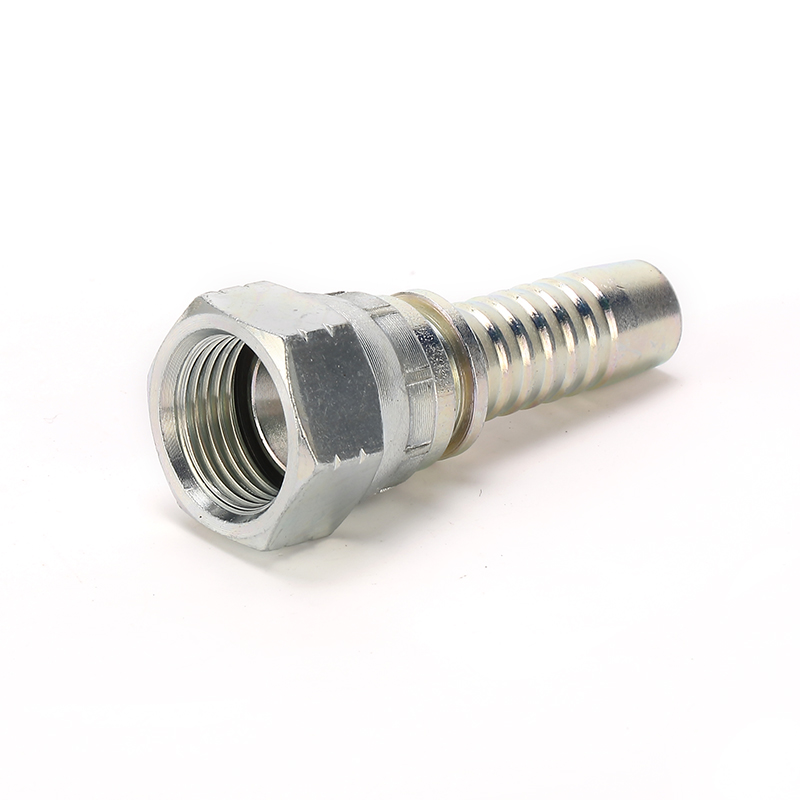

Pehel/ P26711/JIC Female 60° Cone Seal
