PART NO. THREAD DIMENSIONS E F A B L S1 S2 2JF-04 7/16"X20 9/16X18 14 8.5 35.5 14 19 2JF-06 9/16"X18 11/16"X16 14.1 10 38.5 17 22 2JF-08 3/4"X16 13/16"X16 16.7 11 45 22 27 2JF-10 7/8"X14 1"X14 19.3 13.5 51.5 24 30 2JF-12 1.1/16"X12 1.3/16"X12 21.9 15 58 30 36 2JF-16 1.5/16"X12 1.7/16"X12 23.1 15 62 36 41 2JF-20 1.5/8"X12 1.11/16"X12 24.3 15 64.5 46 50 Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.

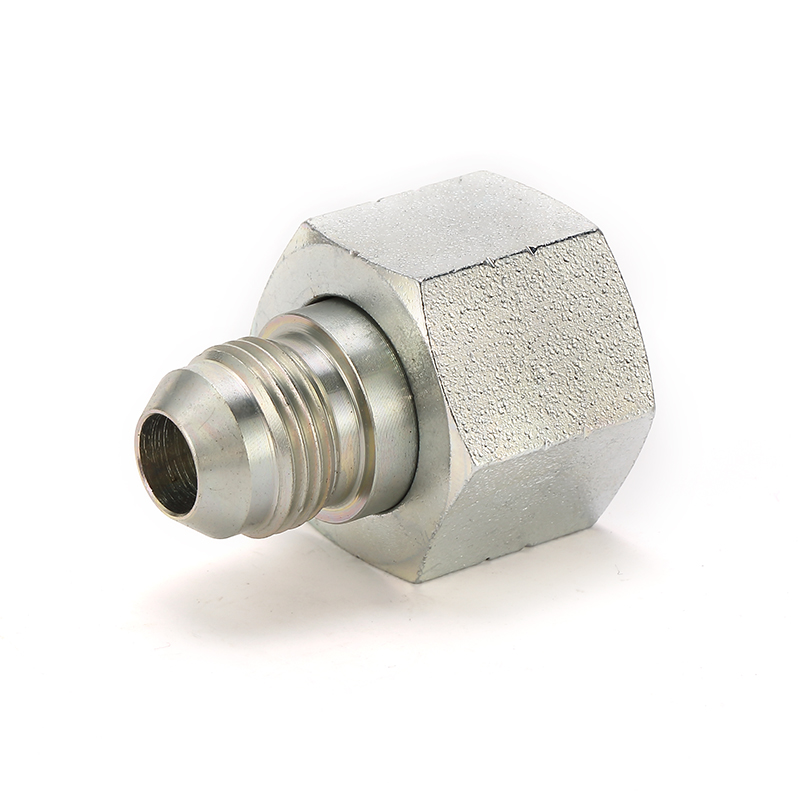

Pehel/2JF/JIC Male 74 Cone-ORFS Female Swivel Hydraulic Adapter
PEHEL Hydraulic Model: 2JF
QTY:
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver
Connector Type: Straight
Thread Type: JIC/ORFS
About the item:
1.300+ bar high pressure resistance
2.Precision-machined straight hydraulic adapters with concentric thread alignment, eliminating flow turbulence and pressure drop in high-flow hydraulic loops.
3.Interchangeable with ISO 8434 standard counterparts, no custom modification required for direct replacement in existing hydraulic systems.
