PART NO.
TUBE O.D. HOSE BORE DIMENSIONS DN DASH C H P51091-06-04 6 6 04 19 50 -06-06 6 10 06 19 55.25 -08-04 8 6 04 19 50 -08-05 8 8 05 19 53.5 -10-04 10 6 04 22 51.5 -10-06 10 10 06 22 58.8 -12-06 12 10 06 22 58.8 -14-06 14 10 06 22 58.8 -14-08 14 12 08 22 65 -16-08 16 12 08 22 65 -16-10 16 16 10 22 69.5 -18-10 18 16 10 24 72.5 -18-12 18 20 12 24 82 -22-14 22 22 14 28 88 -28-16 28 25 16 30 95.5 -34-20 34 32 20 33 108.5 -42-20 42 32 20 35 127 -42-24 42 40 24 35 127
Pehel/51091/ High Quality GB Metric 90º Elbow Standpipe Fitting/All Sizes Available
PEHEL Hydraulic Model: P51091
QTY:

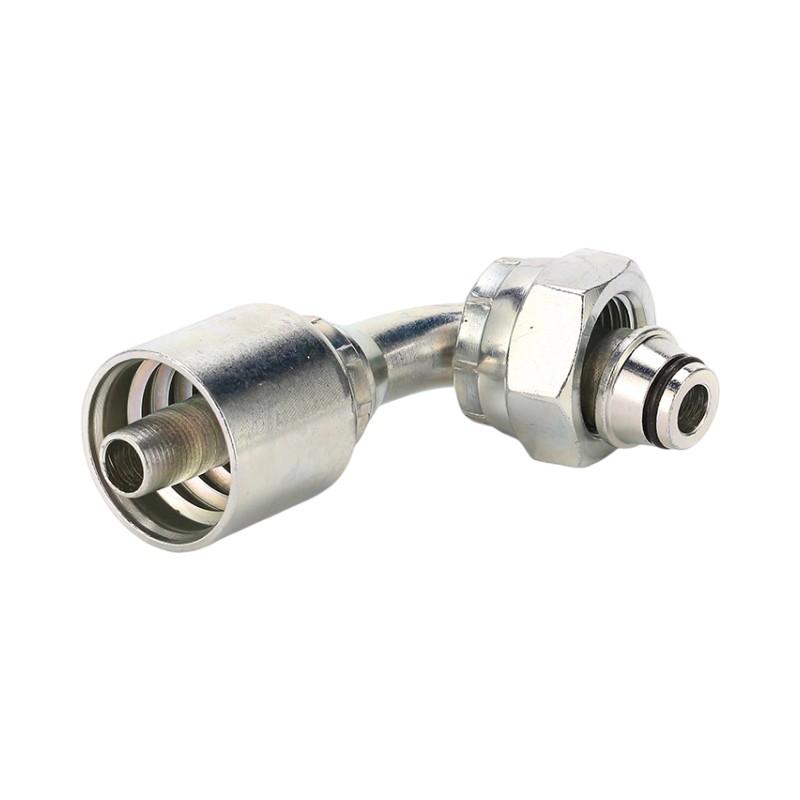

51091 Metric Standpipe 90° Elbow Fittings, GB Standard
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver Zinc plating
Connector Type: Elbow
Thread Type: Standpipe
About the item:
1.Zinc-plated carbon steel body with salt spray resistance up to 240 hours, effectively preventing corrosion in outdoor and humid working environments.
2.Full through-bore design maintains consistent internal flow diameter, avoiding flow restriction that causes system heat rise and efficiency loss.
3.Wide operating temperature range from -40℃ to +120℃, stable performance in extreme cold northern mines and high-temperature metallurgy workshops.
