PART NO. THREAD E HOSE BORE DIMENSIONS DN DASH C S2 P20112-36-12T M36X2 20 12 7 41 -36-14 M36X2 22 14 7 41 -39-16 M39X2 25 16 7 46 -42-16 M42X2 25 16 8.5 50 -45-20 M45X2 32 20 8.5 55 -52-24 M52X2 40 24 9 60 -64-32 M64X2 50 32 14 75 -65-32 M65X2 50 32 10 75

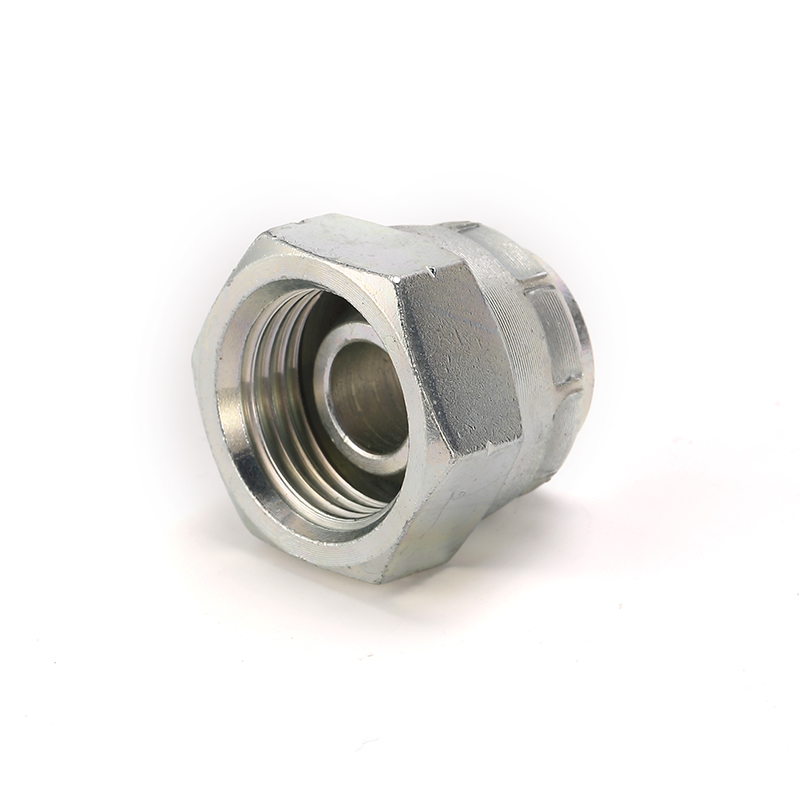

Pehel/20112-T/Metric Female Multiseal Swivel Straight Hose Fitting For 4 Wire Hoses
PEHEL Hydraulic Model: P20112-T
QTY:
Metric Female Multiseal Female Tube Fittings
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver Zinc plating
Connector Type: Straight
Thread Type: Metric Multiseal
About the item:
1.Precision-machined straight hydraulic adapters with concentric thread alignment, eliminating flow turbulence and pressure drop in high-flow hydraulic loops.
2.Interchangeable with ISO 8434 standard counterparts, no custom modification required for direct replacement in existing hydraulic systems.
3.Zinc-plated carbon steel body with salt spray resistance up to 240 hours, effectively preventing corrosion in outdoor and humid working environments.
