PART NO. THREAD O-RING DIMENSIONS E F F A B S1 S2 1BO9-02-04OG G1/8"X28 7/16"X20 8.92X1.83 19.8 27.2 11 17 1BO9-02-05OG G1/8"X28 1/2"X20 10.52X1.83 22.3 30 14 17 1BO9-04OG G1/4"X19 7/16"X20 8.92X1.83 25 30.5 14 17 1BO9-04-05OG G1/4"X19 1/2"X20 10.52X1.83 25 29.9 14 17 1BO9-04-06OG G1/4"X19 9/16"X18 11.89X1.98 24.5 31.8 14 19 1BO9-04-08OG G1/4"X19 3/4"X16 16.36X2.21 27.5 37.5 19 24 1BO9-06-04OG G3/8"X19 7/16"X20 8.92X1.83 27.5 31.5 16 17 1BO9-06OG G3/8"X19 9/16"X18 11.89X1.98 27.5 33.3 16 19 1BO9-06-08OG G3/8"X19 3/4"X16 16.36X2.21 28.5 37.5 19 24 1BO9-06-10OG G3/8"X19 7/8"X14 19.18X2.46 31 44 22 27 1BO9-08OG G1/2"X14 3/4"X16 16.36X2.21 34.5 40 22 24 1BO9-08-10OG G1/2"X14 7/8"X14 19.18X2.46 34.5 44 22 27 1BO9-08-12OG G1/2"X14 1.1/16"X12 23.47X2.95 37.5 51 27 32 1BO9-10OG G5/8"X14 7/8"X14 19.18X2.46 35 44 22 27 1BO9-12OG G3/4"X14 1.1/16"X12 23.47X2.95 40 51 27 32 1BO9-12-08OG G3/4"X14 3/4"X16 16.36X2.21 40 43 27 24 1BO9-12-10OG G3/4"X14 7/8"X14 19.18X2.46 40 47 27 27 1BO9-12-16OG G3/4"X14 1.5/16"X12 29.74X2.95 41 54.5 33 41 1BO9-16OG G1"X11 1.5/16"X12 29.74X2.95 46 54.5 33 41 1BO9-16-12OG G1"X11 1.1/16"X12 23.47X2.95 46 54.5 33 32 1BO9-16-20OG G1"X11 1.5/8"X12 37.46X3.00 50.5 59.5 41 50 1BO9-20OG G1.1/4"X11 1.5/8"X12 37.46X3.00 50.5 59.5 41 50 1BO9-20-16OG G1.1/4"X11 1.5/16"X12 29.74X2.95 50.5 59.5 41 41 1BO9-20-24OG G1.1/4"X11 1.7/8"X12 43.69X3.00 54.5 63 48 55 1BO9-24OG G1.1/2"X11 1.7/8"X12 43.69X3.00 57.5 63 48 55

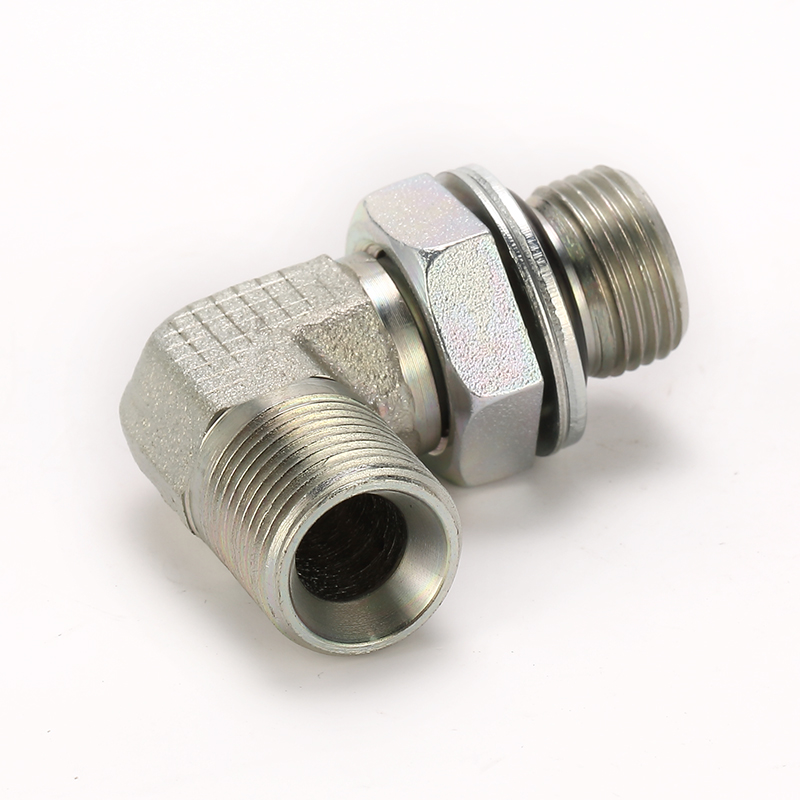

Pehel | P1BO9-OG | Hydraulic Elbow BSP Male 60 Seat/SAE O-Ring Boss Adjustable Adapter
PEHEL Hydraulic Model: 1BO9-OG
QTY:
Material: Carbon steel
Brand: Pehel
Color: Silver
Thread: BSP/SAE
Size: 1/4"-2"
About the item:
1. Adjustable adapter design – allows rotation for precise alignment after tightening.
2. Dual-thread compatibility – connects BSP thread and SAE thread systems seamlessly.
3. BSP thread option – parallel or tapered threads for leak-proof sealing.
4. SAE thread option – O-ring boss or straight threads for high-pressure reliability.
5. Durable steel body – corrosion-resistant for long service life.
