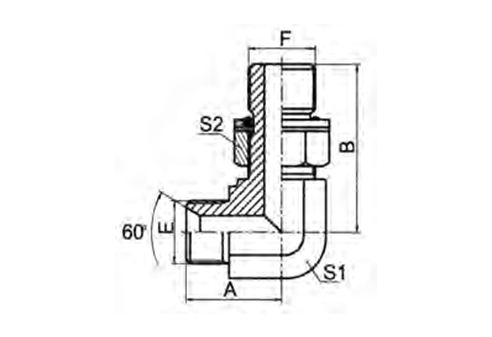

THREAD O-RING DIMENSIONS PART NO. E F F A B S1 S2 1BG9-04OG G1/4"X19 G1/4"X19 O111 24.5 31.5 14 19 1BG9-04-06OG G1/4"X19 G3/8"X19 O113 26.5 36.8 16 22 1BG9-06OG G3/8"X19 G3/8"X19 O113 28 36.8 16 22 1BG9-06-08OG G3/8"X19 G1/2"X14 O115 31 43.2 22 27 1BG9-08OG G1/2"X14 G1/2"X14 O115 34.5 43.2 22 27 1BG9-08-12OG G1/2"X14 G3/4"X14 O119 40 49.3 27 32 1BG9-12OG G3/4"X14 G3/4"X14 O119 40 49.3 27 32 1BG9-12-16OG G3/4"X14 G1"X11 O217 45 53 33 41 1BG9-16OG G1"X11 G1"X11 O217 46 54 33 41 1BG9-20-16OG G1.1/4"X11 G1"X11 O217 50.5 58 41 41 1BG9-20OG G1.1/4"X11 G1.1/4"X11 O222 51.5 58 41 50 1BG9-24OG G1.1/2"X11 G1.1/2"X11 O224 58.5 63 48 55
PEHEL | 90° BSP Male 60° Seat to BSP Male O‑Ring Adjustable Stud Elbow, Hydraulic Adapter
PEHEL Hydraulic Model: 1BG9-OG
QTY:

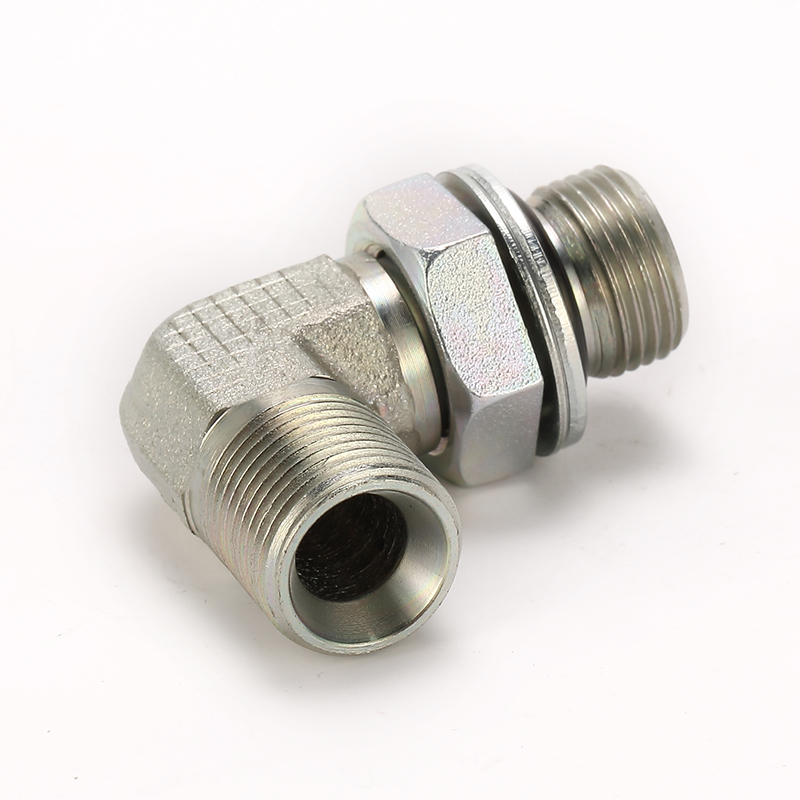

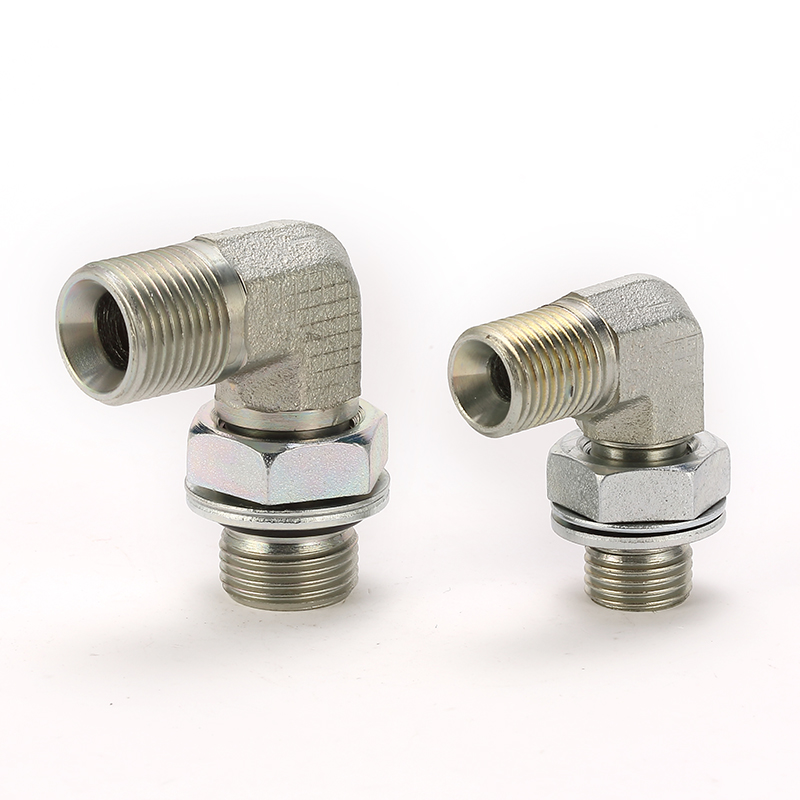

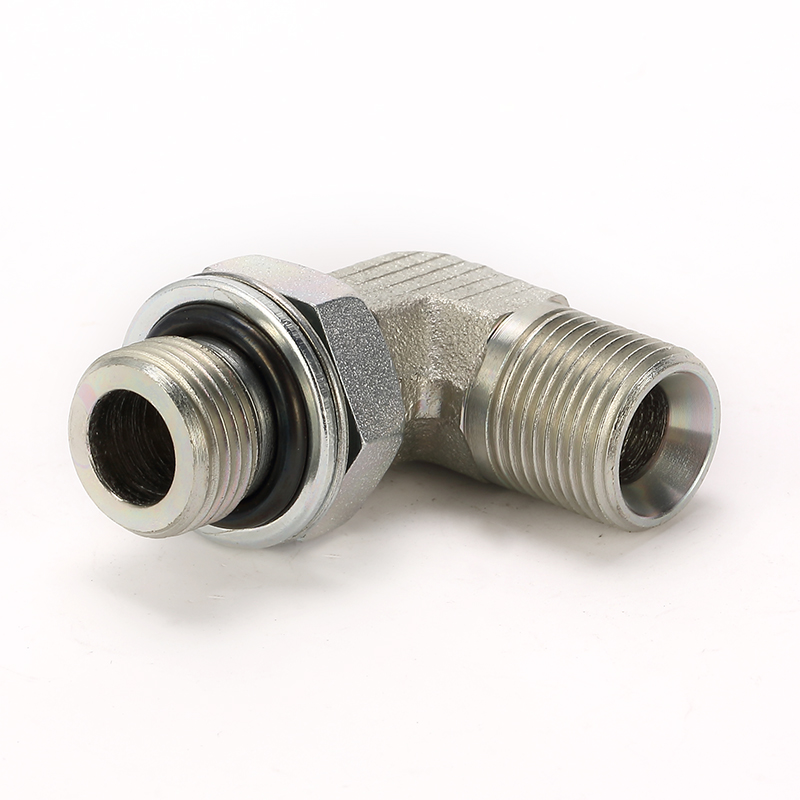

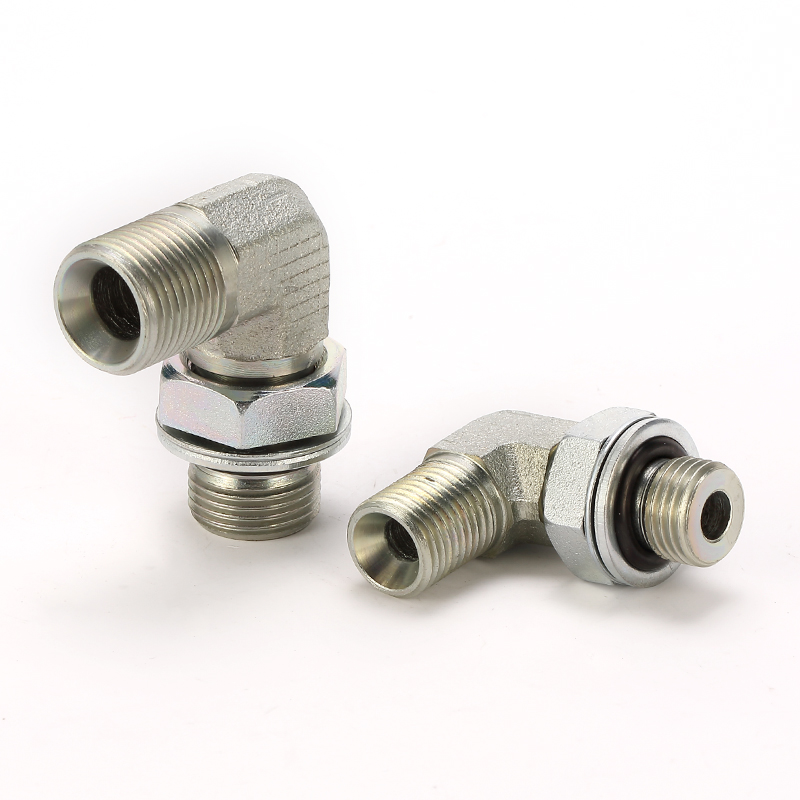

Type: 90° Elbow Adapter
End 1: BSP Male 60° Cone Seat
End 2: BSP Male with O‑Ring (Adjustable Stud End)
Material: Carbon steel
Brand: PEHEL, OEM
Surface Treatment: Zinc‑plated
About the item:
1.90° elbow adapter featuring a BSP male 60° cone seat on one end and a BSP male O‑ring adjustable stud end on the other, designed for hydraulic systems requiring directional change and orientation flexibility.
2.The BSP male 60° cone end provides reliable metal‑to‑metal sealing when mated with BSP female 60° cone ports.
3.The BSP male O‑ring adjustable stud end allows free rotation during installation for precise alignment, with the O‑ring sealing against the port face to ensure leak‑free performance.
4.Manufactured from high‑strength carbon steel with anti‑rust surface treatment for extended service life in demanding hydraulic environments.
5.Precision machined threads and sealing surfaces ensure consistent fit and reliable sealing performance.
