THREAD DIMENSIONS PART NO. E F A B S1 1N9-02 Z1/8"X27 Z1/8"X27 21 21 11 1N9-02-04 Z1/8"X27 Z1/4"X18 23.5 25.5 14 1N9-04 Z1/4"X18 Z1/4"X18 25.5 25.5 14 1N9-04-06 Z1/4"X18 Z3/8"X18 28 31 19 1N9-04-08 Z1/4"X18 Z1/2"X14 30.5 36.5 22 1N9-06 Z3/8"X18 Z3/8"X18 31 31 19 1N9-06-08 Z3/8"X18 Z1/2"X14 33.8 37.3 22 1N9-08 Z1/2"X14 Z1/2"X14 37.3 37.3 22 1N9-08-12 Z1/2"X14 Z3/4"X14 40 44 27 1N9-12 Z3/4"X14 Z3/4"X14 44 44 27 1N9-12-16 Z3/4"X14 Z1"Xl1.5 46.5 50 33 1N9-16 Z1"X11.5 Z1"Xl1.5 50 50 33 1N9-20 Z1.1/4"X11.5 Z1.1/4"X11.5 54 54 41 1N9-24 Z1.1/2"X11.5 Z1.1/2"X11.5 63 63 48 1N9-32 Z2"X11.5 Z2"X11.5 68 68 63

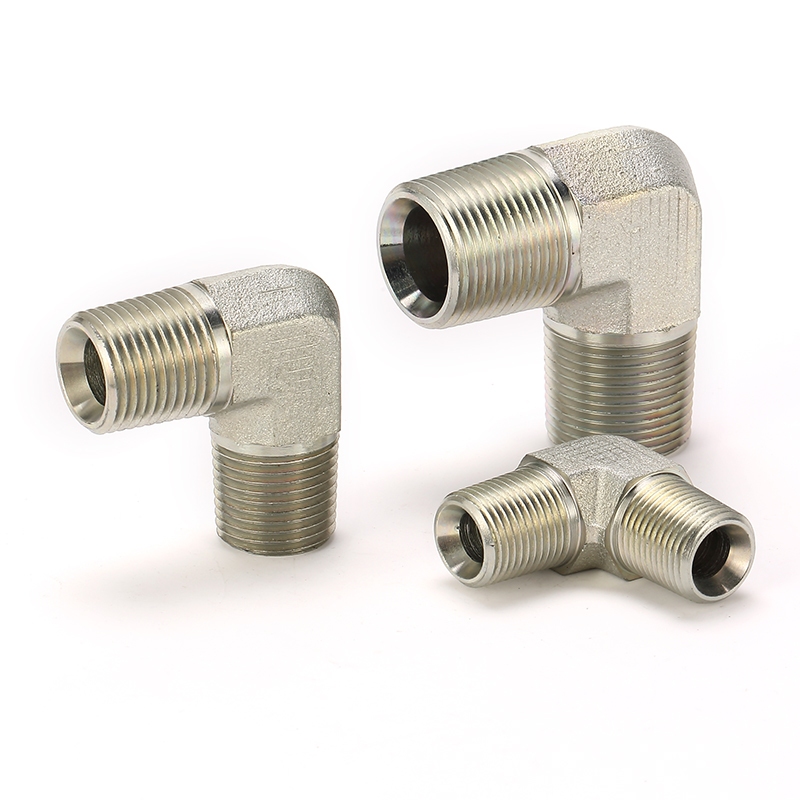

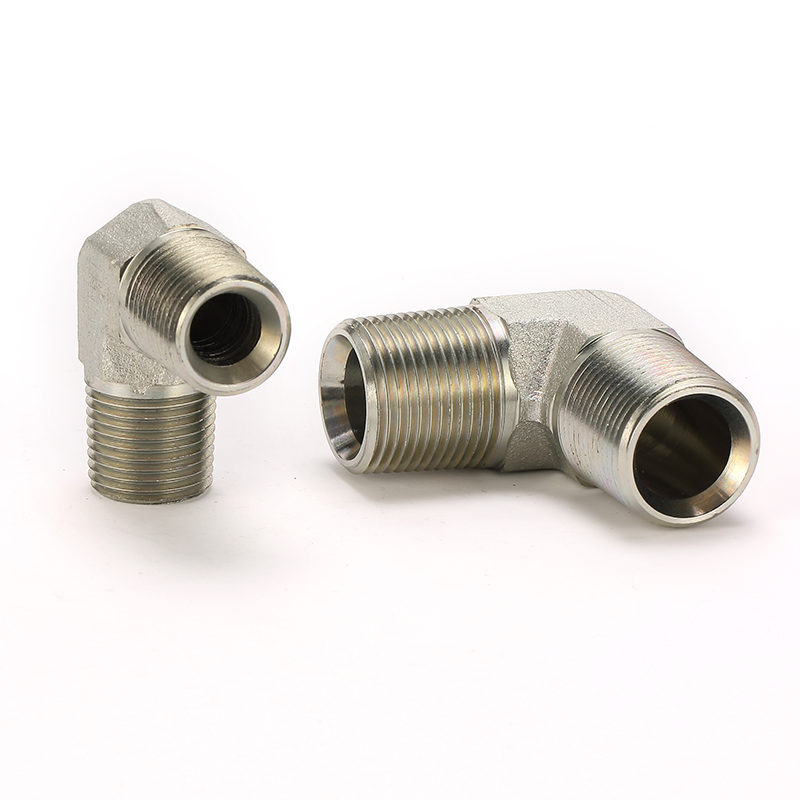

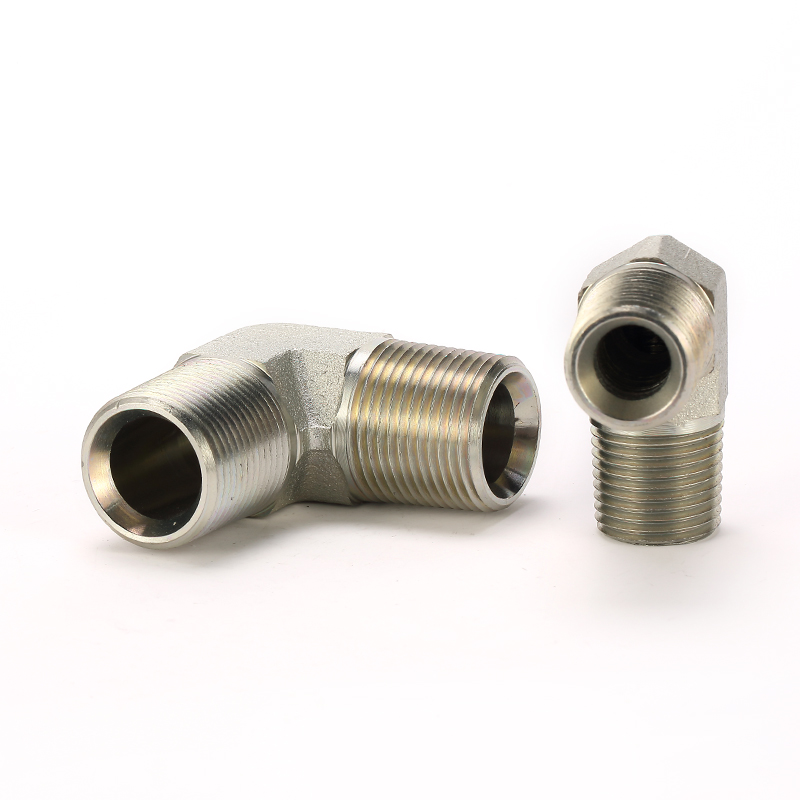

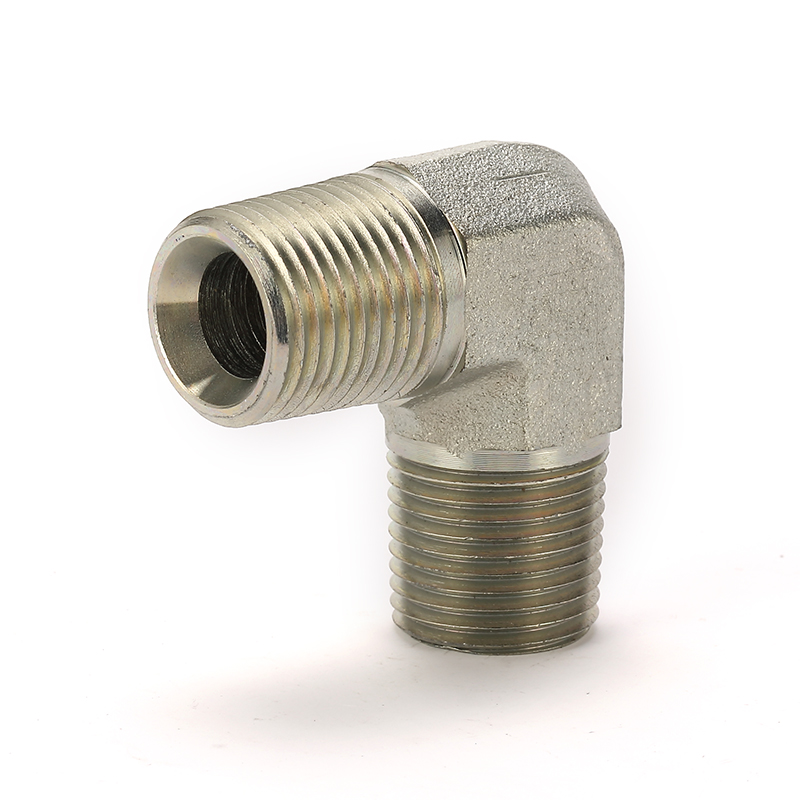

Zinc Plated 90° Elbow Fitting NPT Male Thread Pipeline Connector
PEHEL Hydraulic Model: P1N9
QTY:
Material: Carbon steel, stainless steel
Brand: Pehel, OEM
Color: Silver color zinc plating
Connector Type:
Thread Type:
About the item:
1. This 90 degree NPT male elbow adopts precision thread processing for tight, gap-free pipeline connection.2. Optional carbon steel and stainless steel materials suit various industrial and hydraulic working conditions.3. Premium silver color zinc plating endows the NPT male elbow with excellent anti-rust and anti-corrosion performance.4. Standard NPT male thread design ensures universal compatibility with most industrial pipeline accessories.5. Supports Pehel brand and OEM customization to meet bulk wholesale and personalized processing needs.
