Hydraulic 90° Elbow Adapter – BSP Male 60° Seat to BSPT Female

PEHEL Hydraulic Model: 5BT9

QTY:

Material:Carbon steel
Brand:Pehel, OEM
Color: Silver
Connector Type: elbow
Thread Type: BSP BSPT
Surface Treatment: CR3+ White Zinc Plated
About the item:
· 1.Forged Construction: Ensures durability and strength for heavy-duty applications.
· 2.High Pressure Rating: Designed to withstand high-pressure hydraulic systems.
· 3. Zinc Plated Finish: Provides rust resistance and enhances longevity.
· 4. Strict tolerance crimp stem enables stable hose crimping, avoids hose pull-off & oil seepage.
5. Customizable Options: Available in various sizes and configurations for tailored solutions.

PART NO.	THREAD E	THREAD F	A	B	S1
5BT9-04	G1/4"X19	Rc1/4"X19	27.5	25	19
5BT9-04-02	G1/4"X19	Rc1/8"X28	25.5	20	16
5BT9-04-06	G1/4"X19	Rc3/8"X19	30.5	27	24
5BT9-06	G3/8"X19	Rc3/8"X19	32	27	24
5BT9-06-04	G3/8"X19	Rc1/4"X19	28.5	25	19
5BT9-06-08	G3/8"X19	Rc1/2"X14	36	31.5	30
5BT9-08	G1/2"X14	Rc1/2"X14	38.5	31.5	30
5BT9-08-06	G1/2"X14	Rc3/8"X19	35.5	27	24
5BT9-08-12	G1/2"X14	Rc3/4"X14	41	37	33
5BT9-12	G3/4"X14	Rc3/4"X14	43.5	37	33
5BT9-12-08	G3/4"X14	Rc1/2"X14	41.5	31.5	30
5BT9-12-16	G3/4"X14	Rc1" X11	48	43	41
5BT9-16	G1"X11	Rc1" X11	50.5	43	41
5BT9-16-12	G1"X11	Rc3/4"X14	46	37	33

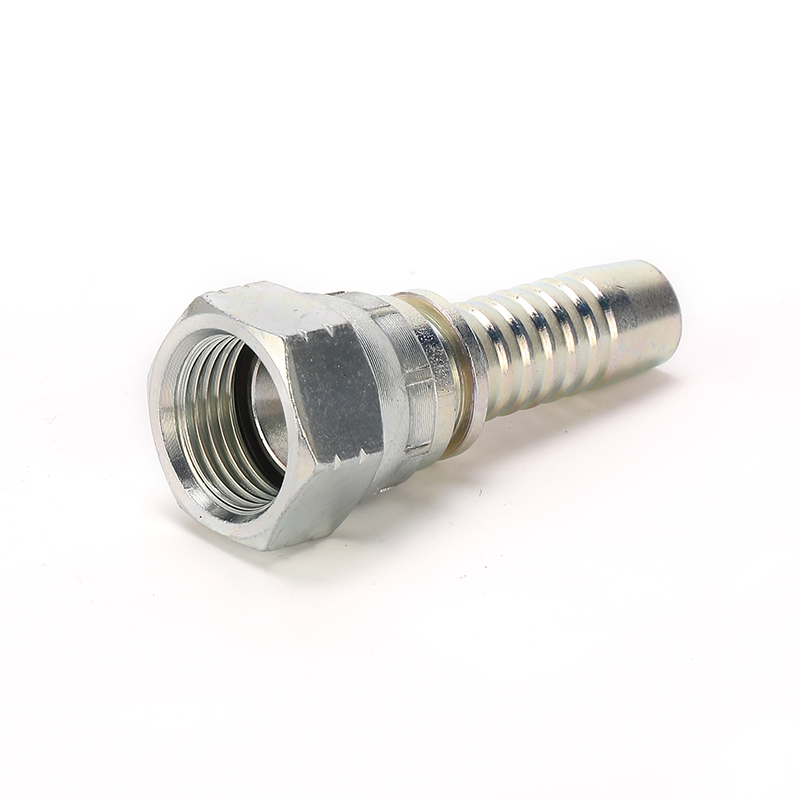

Pehel/p20211-t/Metric Female Flat Seat
