PART NO. THREAD E HOSE BORE DIMENSIONS DN DASH A B C S1 S2 26712-06-06PK AST 9/16"X18 10 06 58.2 10.2 29.2 17.46 19 26712-08-08PK AST 3/4"X16 12 08 65.5 10.8 31 20.64 24 26712-10-08PK AST 7/8"X14 12 08 72 12.3 37.5 22.22 27 26712-10-10PK AST 7/8"X14 16 10 72 12.3 35.2 24 27 26712-12-12PK AST 1.1/16"X12 20 12 80 14.5 40.9 27 32 26712-16-12PK AST 1.5/16"X12 20 12 84 15.5 44.9 32 38 26712-16-16PK AST 1.5/16"X12 25 16 91 15.5 44.2 35 38 26712-20-20PK AST 1.5/8"X12 32 20 100 16 52 47 50

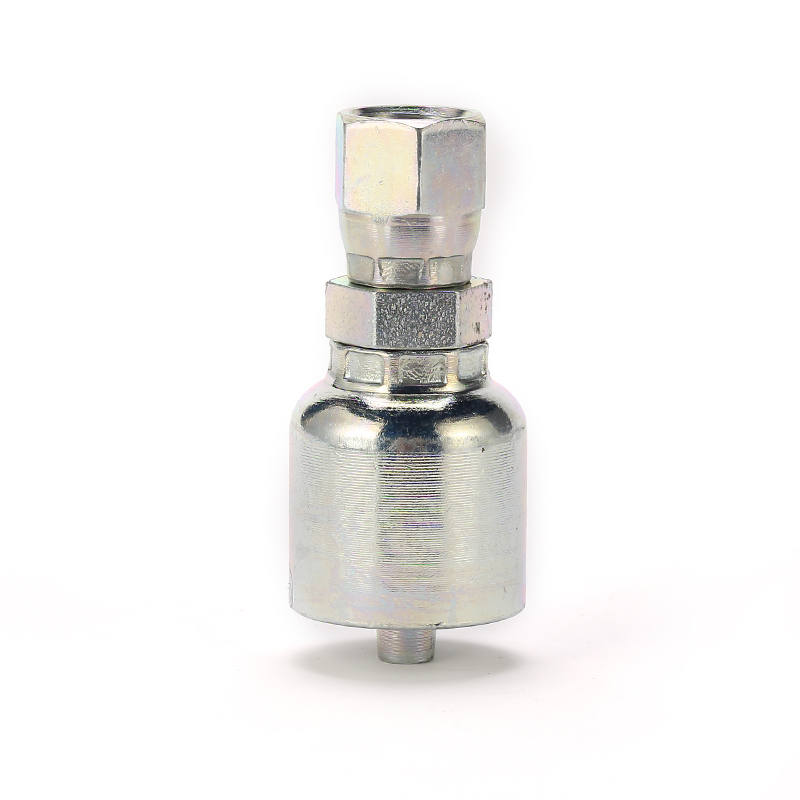

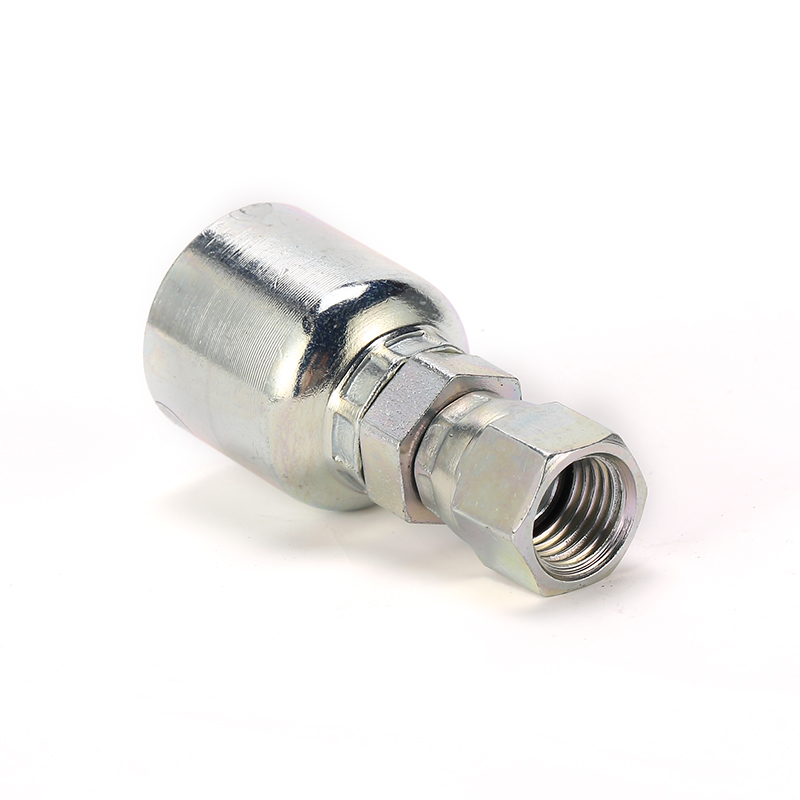

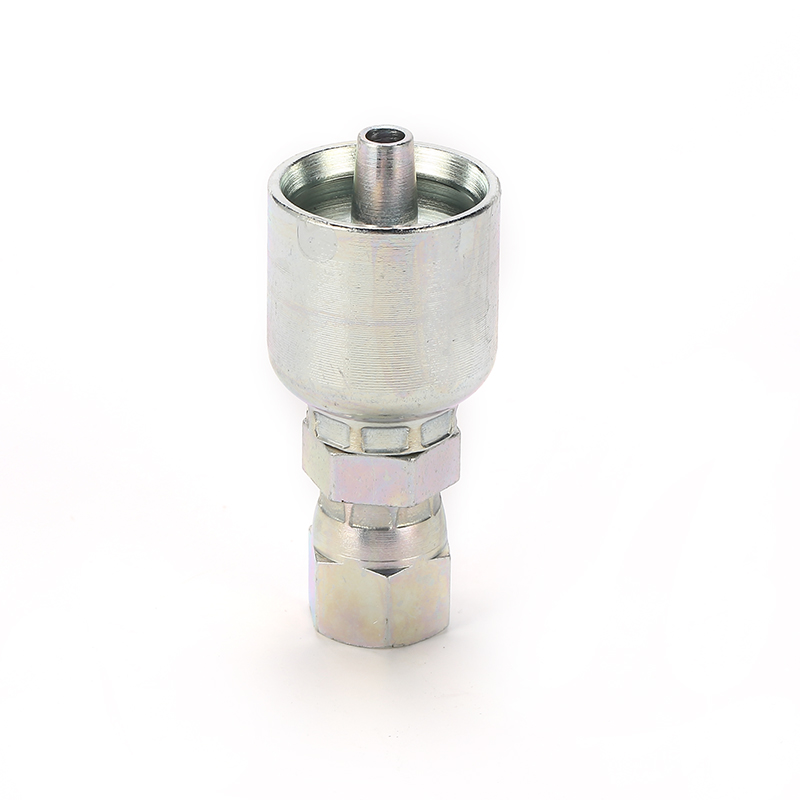

PEHEL | JIC Female 74° Cone Seat One Piece Fitting for 4 Wire Spiral Hose
PEHEL Hydraulic Model: P26712-PK
QTY:
Jic Female One Piece Fitting
Material: Carbon steel
Brand: PEHEL, OEM
Connector Type: One Piece Crimp Fitting / Hose Adapter
Thread Type: JIC Female 74° Cone Seat
Hose Compatibility: 4-wire spiral hoses (SAE 4SH, 100R12, etc.)
Angle: Straight (also available in 45° & 90° elbow )
About the item:
1.JIC female 74° cone seat one piece fitting, engineered as a crimp-style hydraulic hose adapter for 4-wire spiral hoses in high-pressure fluid power systems.
2.Female JIC threads with 74° cone seat design provide metal-to-metal sealing contact, delivering reliable leak-proof performance under extreme pressure and impulse conditions.
3.One piece body construction with pre-compressed ferrule eliminates potential leak paths found in multi-piece assemblies, enhancing overall strength and reliability.
4.Designed for crimping onto 4-wire spiral hoses (SAE 4SH / 100R12 etc.), ensuring a robust, long-lasting hold that withstands heavy-duty industrial applications.
5.Manufactured from high-strength carbon steel with anti-rust surface treatment, offering excellent durability and corrosion resistance in demanding hydraulic environments.
