代号 PART NO. 法兰型号 FLANGE SIZE 软管 HOSE BORE - 公称内径 DN 软管 HOSE BORE - 标号 DASH 尺寸 A 尺寸 C 尺寸 D 尺寸 H 尺寸 L 87693-12-12 3/4" 20 12 75.5 41.3 31.7 66 8.9 87693-16-12 1" 20 12 75.5 47.6 38 68 9.6 87693-16-16 1" 25 16 89.3 47.6 38 73.5 9.6 87693-20-16 1.1/4" 25 16 89.3 54 43.6 78.5 10.4 87693-20-20 1.1/4" 32 20 106 54 43.6 86.5 10.4 87693-24-20 1.1/2" 32 20 106 63.5 50.8 89.5 12.7 87693-24-24 1.1/2" 40 24 124.3 63.5 50.8 103 12.7 87693-32-24 2" 40 24 124.3 79.4 66.5 103 12.7 87693-32-32 2" 50 32 150.5 79.4 66.5 123.3 12.7
90° SAE Flange 6000 PSI
PEHEL Hydraulic Model: 87693
QTY:

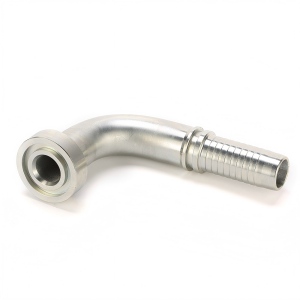

China 90° SAE Interlock 6000psl Flange Carbon Steel Hose Fitting
- 1.Full SAE Standard Compatibility Manufactured strictly according to SAE J518 and ISO 6162 standards. Perfectly interchangeable with Parker, Eaton and mainstream global brands, suitable for 2-wire and 4-wire spiral hydraulic hoses.
-
2.High Pressure & Vibration Resistant One-piece forged structure supports working pressure up to 6000 PSI (31.5MPa). Anti-shock and anti-pulsation performance ensures no blow-off, no leakage and no loosening under long-term high-pressure operation.
-
3.Cyanide-Free High Salt Spray Compliance Adopts upgraded cyanide-free galvanizing + nano sealing technology. Fully RoHS, REACH and CBAM compliant. Over 500-hour salt spray resistance, completely avoiding rust and coating peeling, ideal for EU and North American export projects.
-
4.Zero Leakage & Stable Flow Precision CNC machining guarantees smooth inner bore and perfect flange sealing flatness. 12-12 equal diameter design provides stable flow rate with zero hydraulic leakage in continuous operation.
-
5.Wide Temperature & Harsh Environment Adaptability Works stably from -40℃ to 120℃. Suitable for construction machinery, mining, marine and all corrosive & outdoor working conditions.
-
6.High Consistency & Fast Lead Time Mass production with strict tolerance control. High batch consistency, perfect for bulk export orders and long-term OEM supply.
- 90° SAE Flange 6000 PSI
