PART NO. THREAD E HOSE BORE DIMENSIONS DN DASH A B C H S2 24292-06-06PK AST 11/16"X16 10 06 61.5 8 32.5 32.5 22 24292-08-08PK AST 13/16"X16 12 08 77.5 11.5 43 43 24 24292-10-10PK AST 1"X14 16 10 92.5 12.5 55.7 55.7 30 24292-12-12PK AST 1.3/16"X12 20 12 103 13 63.9 63.9 36 24292-16-16PK AST 1.7/16"X12 25 16 124 14 77.2 77.2 41 24292-20-20PK AST 1.11/16"X12 32 20 138.8 15 90.8 90.8 50
PEHEL | 90° ORFS Female Elbow, Flat Seal One Piece Hydraulic Fitting
PEHEL Hydraulic Model: P24292-PK
QTY:

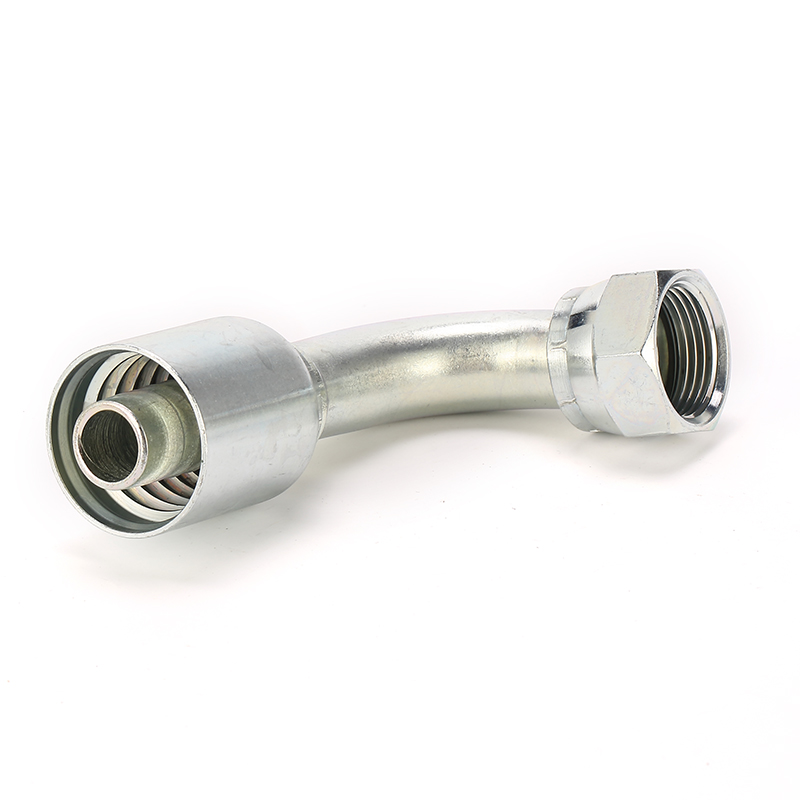

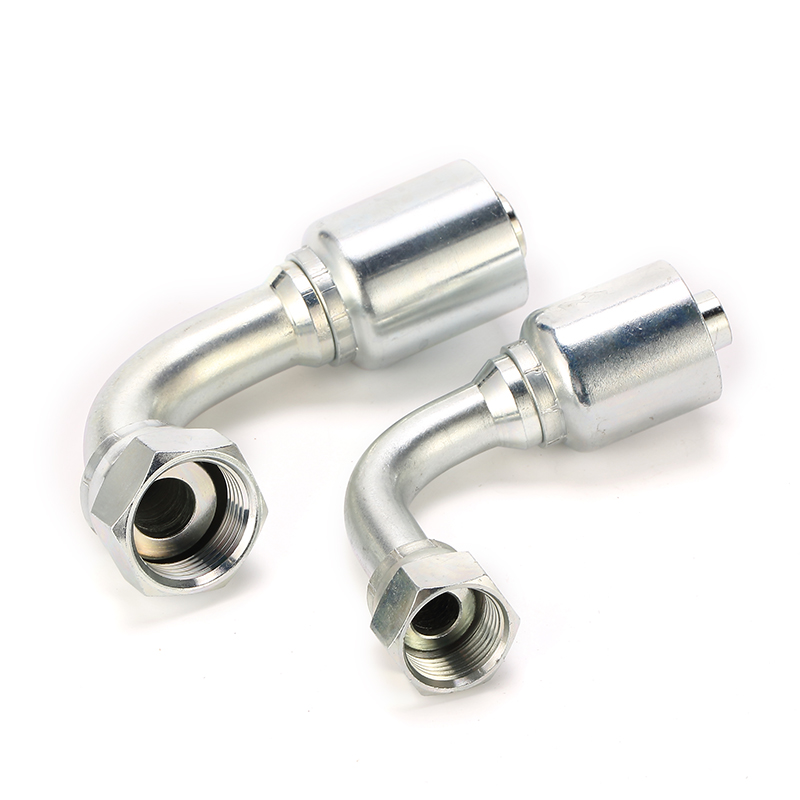

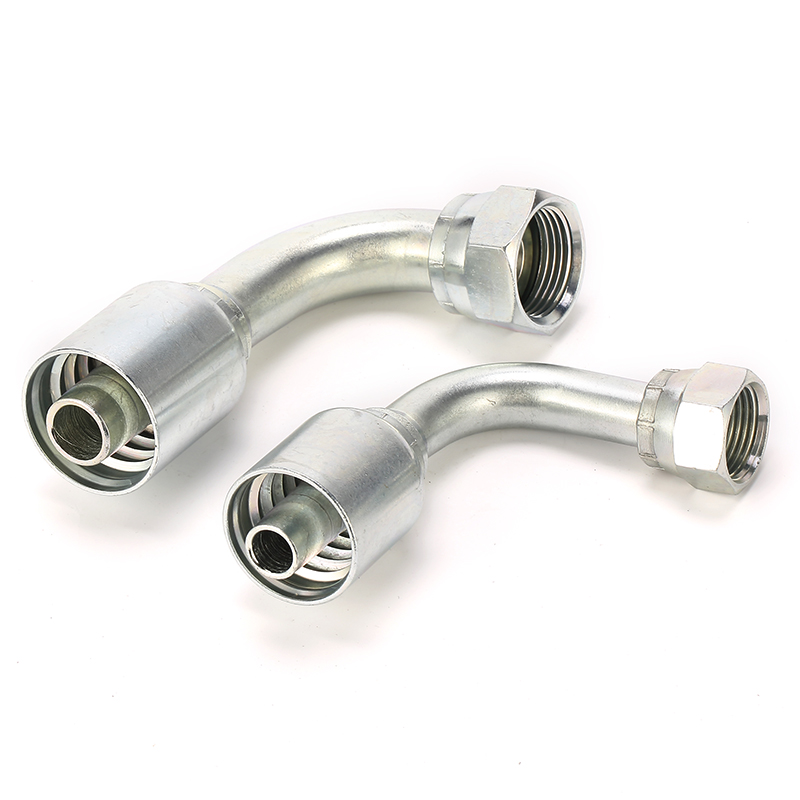

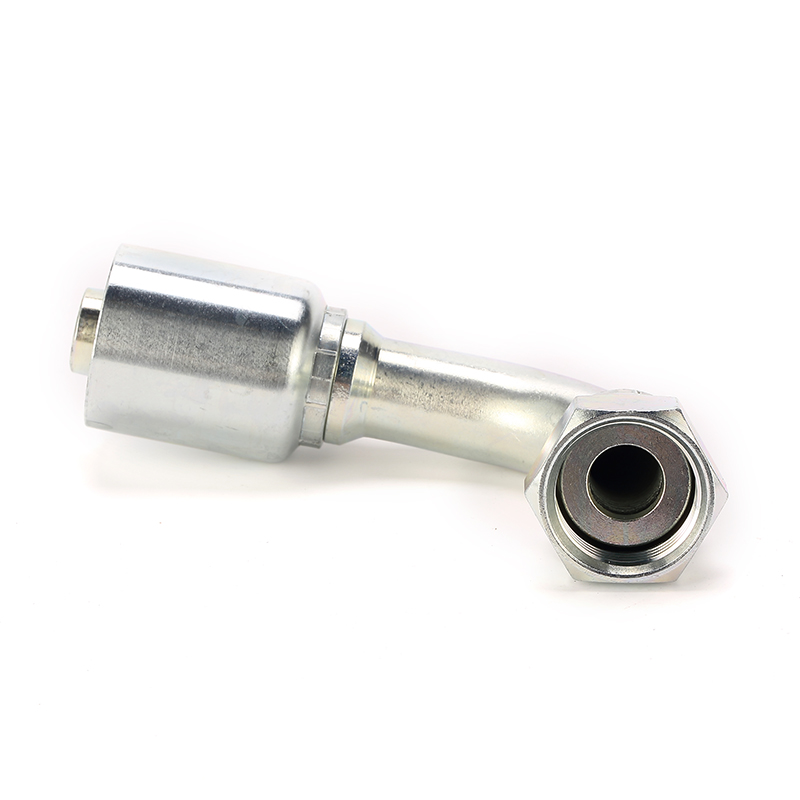

One Piece Fittings Female Swivel Nut ORFS O-ring Face Seal Hydraulic Hose Fittings 90 Elbow
Material: Carbon steel
Brand: PEHEL, OEM
Angle: 90° Elbow
Connector Type: Elbow / One Piece Fitting
Thread Type: ORFS Female
Sealing: Flat Face Seal
About the item:
1.90° ORFS female flat seal elbow designed as a one piece hydraulic fitting for directional changes in ORFS hydraulic systems.
2.Female ORFS threads conform to standard ORFS dimensions with flat sealing face, providing reliable leak-free performance without additional seals or O-rings.
3.One piece body construction eliminates potential leak paths found in multi-piece assemblies, enhancing overall reliability and strength.
4.90° elbow configuration allows efficient redirection of fluid flow in tight spaces, optimizing hydraulic circuit layout and saving installation space.
5.Manufactured from high-strength carbon steel with anti-rust surface treatment, ensuring excellent durability and long service life in demanding hydraulic environments.
