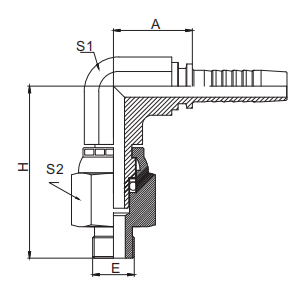

PART NO. THREAD E HOSE BORE DIMENSIONS DN DASH A B C H S1 20491-14-04WPK AST M14X1.5 6 04 51 29 1.1 29 17 20491-16-05WPK AST M16X1.5 8 05 58 34 0.7 33 19 20491-18-06WPK AST M18X1.5 10 06 61 32.5 1.6 34 22 20491-22-08WPK AST M22X1.5 12 08 75 41 1.4 42 27 20491-26-08WPK AST M26X1.5 12 08 74 37 2 43 32 20491-26-10WPK AST M26X1.5 16 10 83 44.2 2 49 32
Pehel | 45° Metric Female 24°Cone O‑ring L.T. Hydraulic Fitting
PEHEL Hydraulic Model: P20441W-PK
QTY:
Hydraulic Metric 45deg Light Series Hose Fitting
24 Cone O-Ring Seal L. T 45o Metric Female 24o Cone Fitting
Standard: DIN Material: Medium Carbon Steel Connection: Female Surface Treatment: Chrome Head Type: Round Stock: Yes Color: White or Yellow
Finish: Zinc Plated
Transport Package: Plastic Papaer+ Carton Box+Wppden Pallet
Specification: SGS
About the item:
- 1.This 45° metric female 24° cone o‑ring fitting adopts light‑type structure for compact installation space.
- 2.Available in carbon steel and stainless steel, this L.T. hydraulic fitting adapts to various working scenarios.
- 3.Silver zinc plating surface treatment enhances rust‑proof performance for the metric 24° cone hydraulic connector.
- 4.Precision 24° cone sealing surface with o‑ring ensures leak‑free connection for hydraulic pipeline system.
- 5.45‑degree angled design of this hydraulic fitting optimizes hose routing and avoids pipeline torsion.
