PART NO. THREAD E HOSE BORE DIMENSIONS DN DASH C S2 Per hundred weight Weight per case P15611-02-04 Z1/8"-27 6 4 10 12 1.7 500 P15611-04-04 Z1/4"-18 6 4 14 17 3.3 300 P15611-04-05 Z1/4"-18 8 5 14 17 3.3 300 P15611-04-06 Z1/4"-18 10 6 14 17 4 200 P15611-06-04 Z3/8"-18 6 4 15 19 4.4 300 P15611-06-05 Z3/8"-18 8 5 15 19 4.6 200 P15611-06-06 Z3/8"-18 10 6 15 19 5 200 P15611-06-08 Z3/8"-18 12 8 15 19 7 150 P15611-08-06 Z1/2"-14 10 6 19 22 7.3 150 P15611-08-08 Z1/2"-14 12 8 19 22 7.9 120 P15611-08-10 Z1/2"-14 16 10 19 22 10 200 P15611-12-08 Z3/4"-14 12 8 19 30 12 200 P15611-12-10 Z3/4"-14 16 10 19 30 12 180 P15611-12-12 Z3/4"-14 20 12 19 30 15 150 P15611-12-16 Z3/4"-14 25 16 19 32 23 80 P15611-16-10 Z1"-11.5 16 10 24 36 21 80 P15611-16-12 Z1"-11.5 20 12 24 36 23.2 80 P15611-16-16 Z1"-11.5 25 16 24 36 26.4 70 P15611-20-16 Z1.1/4"-11.5 25 16 25 46 42.4 50 P15611-20-20 Z1.1/4"-11.5 32 20 25 46 45.3 40 P15611-24-24 Z1.1/2"-11.5 40 24 26 50 65.2 30 P15611-32-32 Z 2"-11.5 50 32 26 65 99.7 15
15611 M NPT Straight Two-Piece Crimp Hydraulic Hose connector – Pehel
PEHEL Hydraulic Model: P15611
QTY:

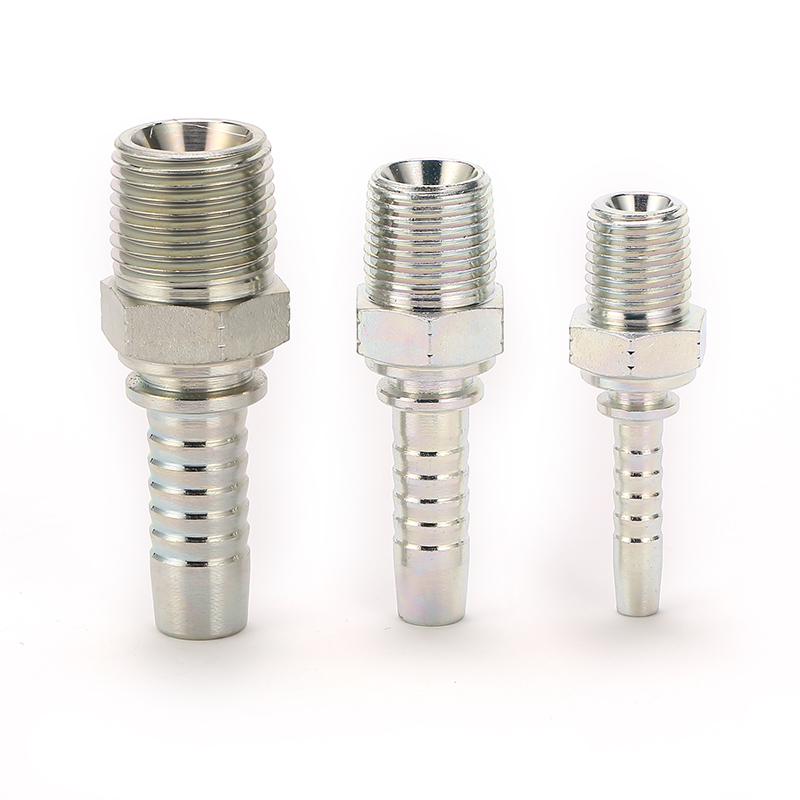

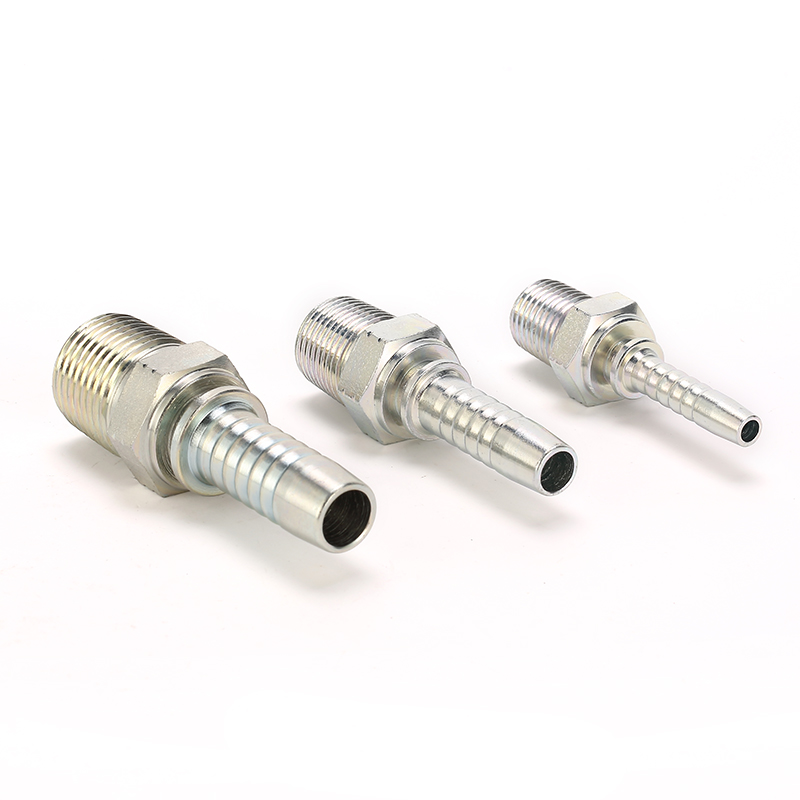

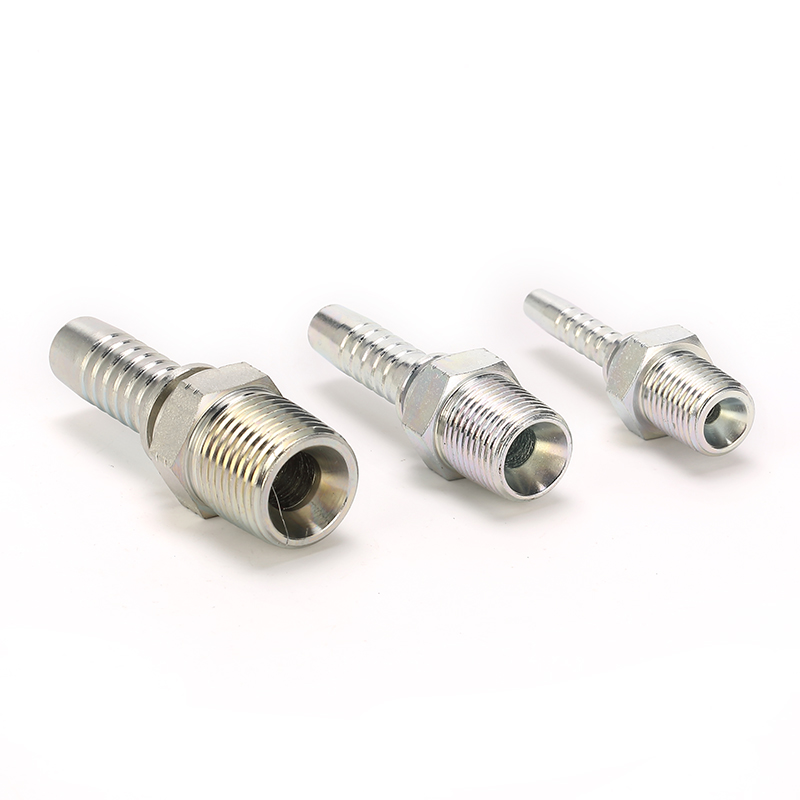

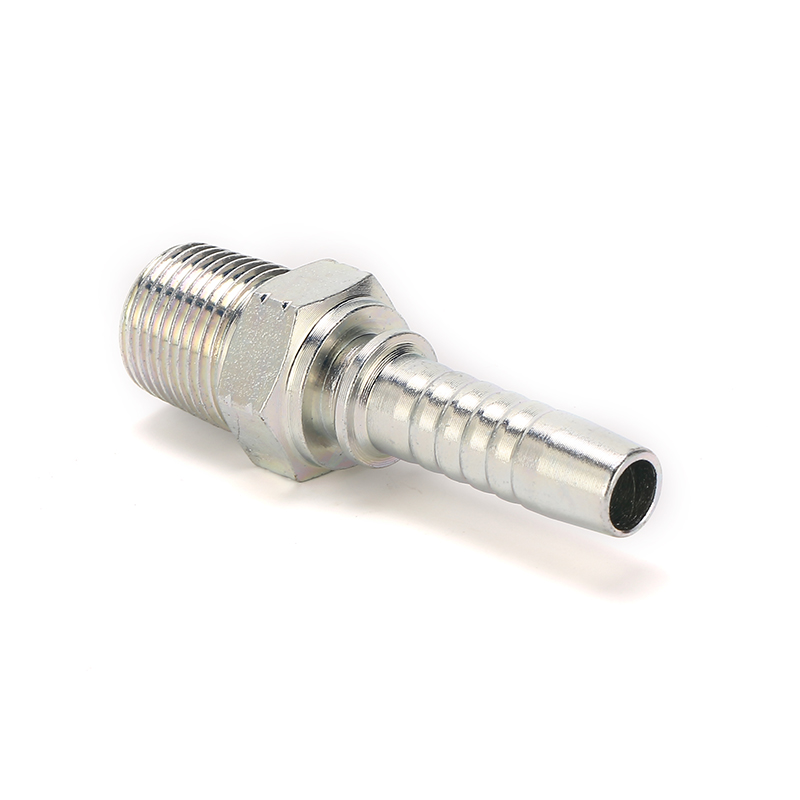

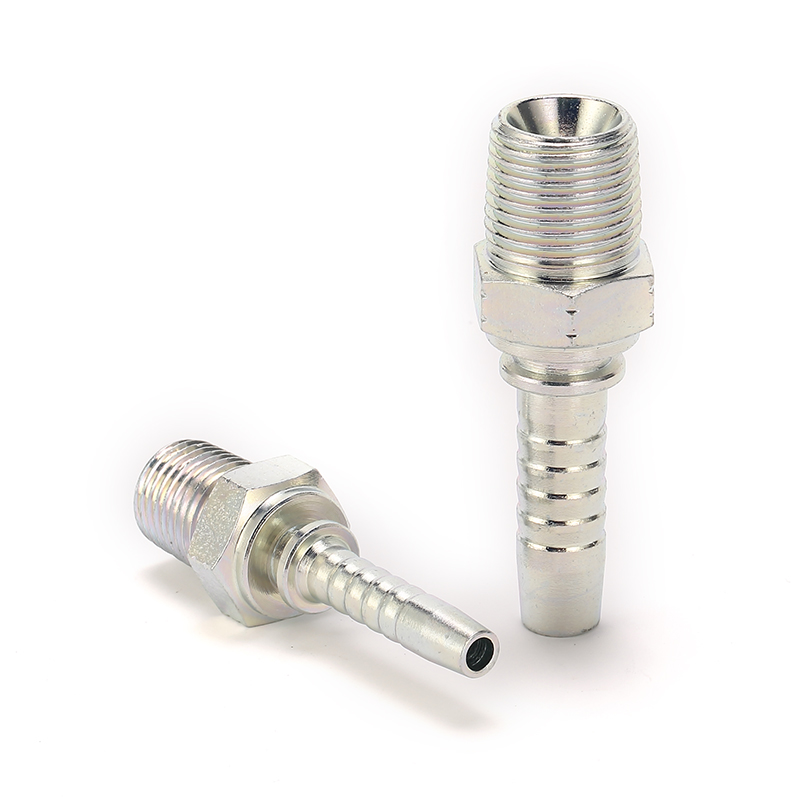

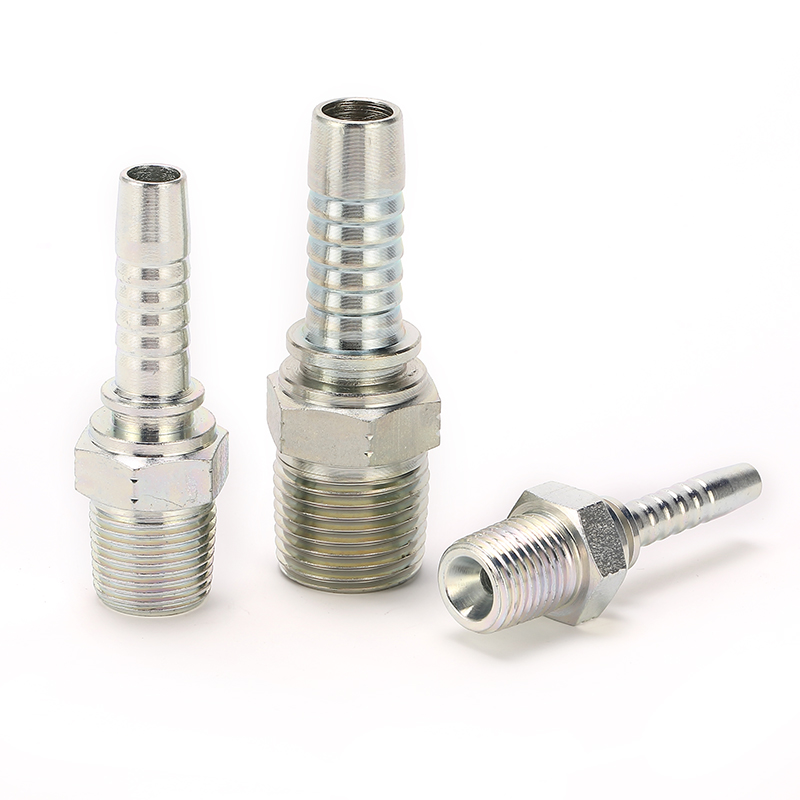

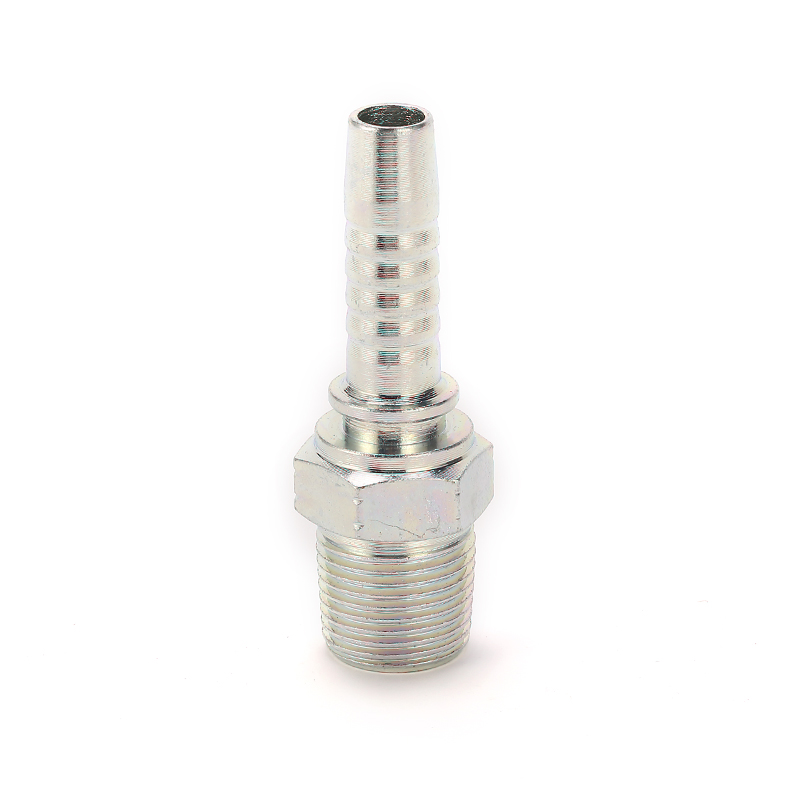

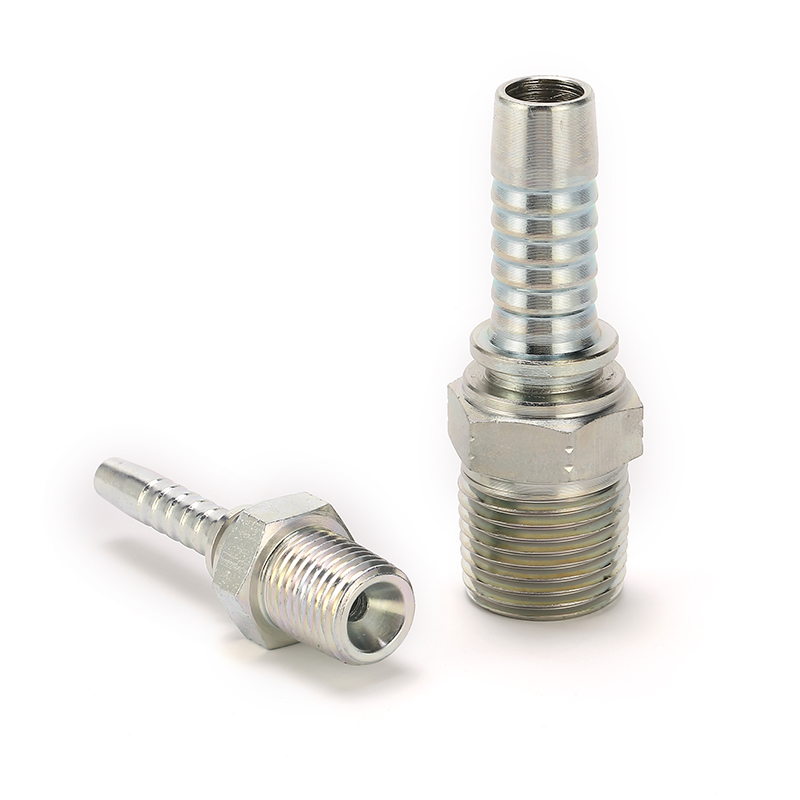

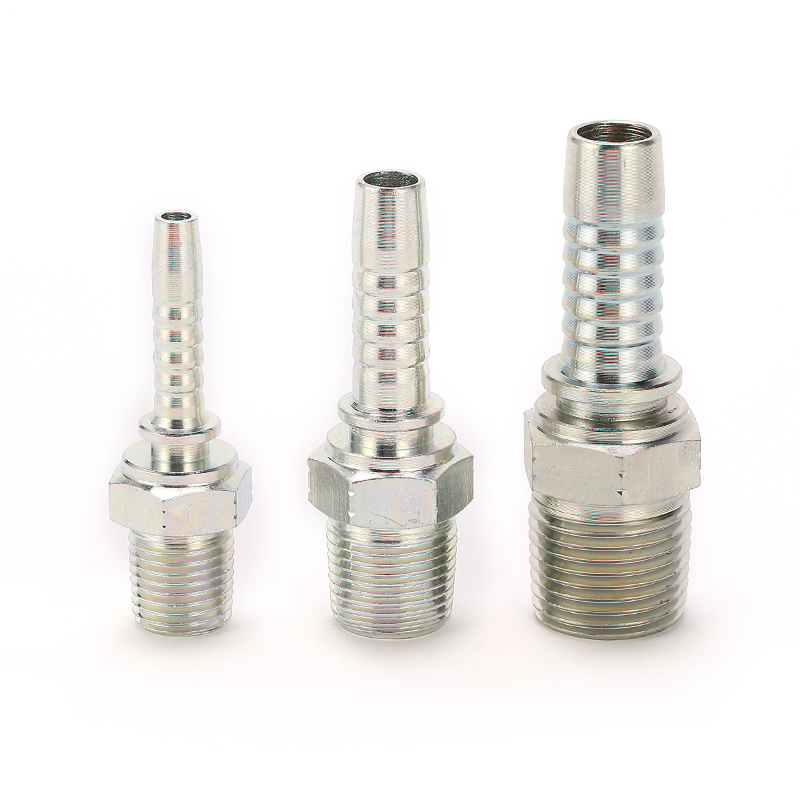

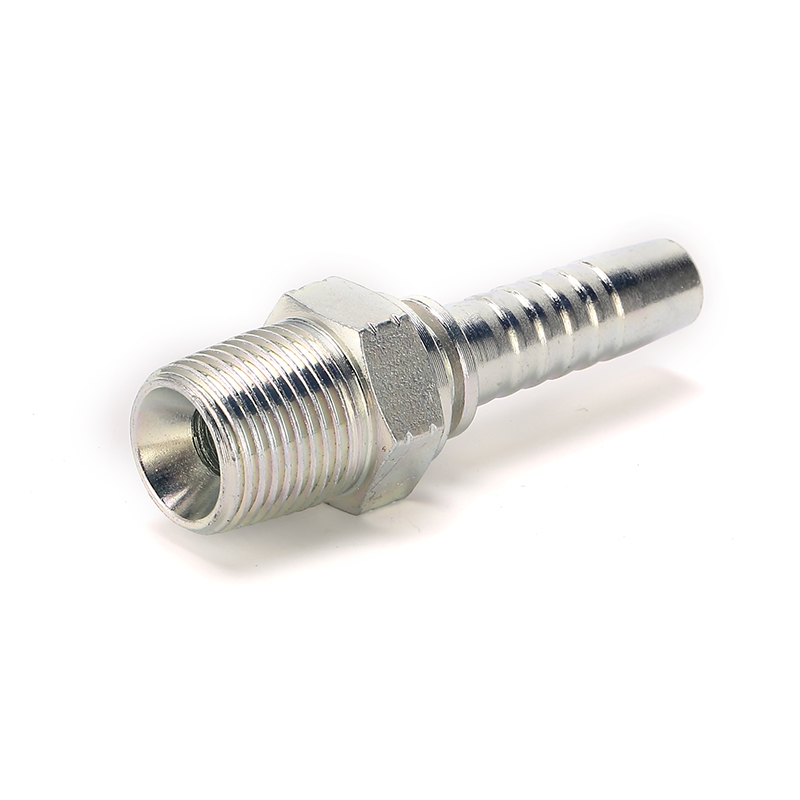

15611 M NPT Straight Two Piece Crimp Hydraulic Hose Fittings
Material: Carbon steel, stainless steel
Brand: Pehel, OEM
Color: Silver color zinc plating
Connector Type:
Thread Type:
About the item:
- 1.Two-piece crimp construction for maximum hose retention – the body-and-ferrule NPT hydraulic hose fitting grips the hose firmly through the full crimp cycle, preventing pull-out under high impulse pressure.
- 2.Straight NPT thread design – tapered NPT threads on this straight crimp hose fitting form a self-sealing connection that holds tight in most hydraulic systems.
- 3.Part-number traceability (15611 M) – this two piece crimp hydraulic fitting keeps standard dimensions and interchangeability, simplifying replacement and inventory management.
- 4.Durable material options – silver color zinc plated carbon steel for general duty, or stainless steel NPT hose fittings for corrosive and washdown environments.
- 5.Crimp-ready consistency – every Pehel two-piece crimp fitting is machined to tight tolerances, so your crimp machine produces uniform, repeatable hose assemblies.
