NPT,SAE,PT thread for all parts is available
PEHEL | Hydraulic Valve Subplate with A-B-P-T Ports, Custom Thread Sizes and Positions Available
PEHEL Hydraulic Model: PHS5A12P
QTY:

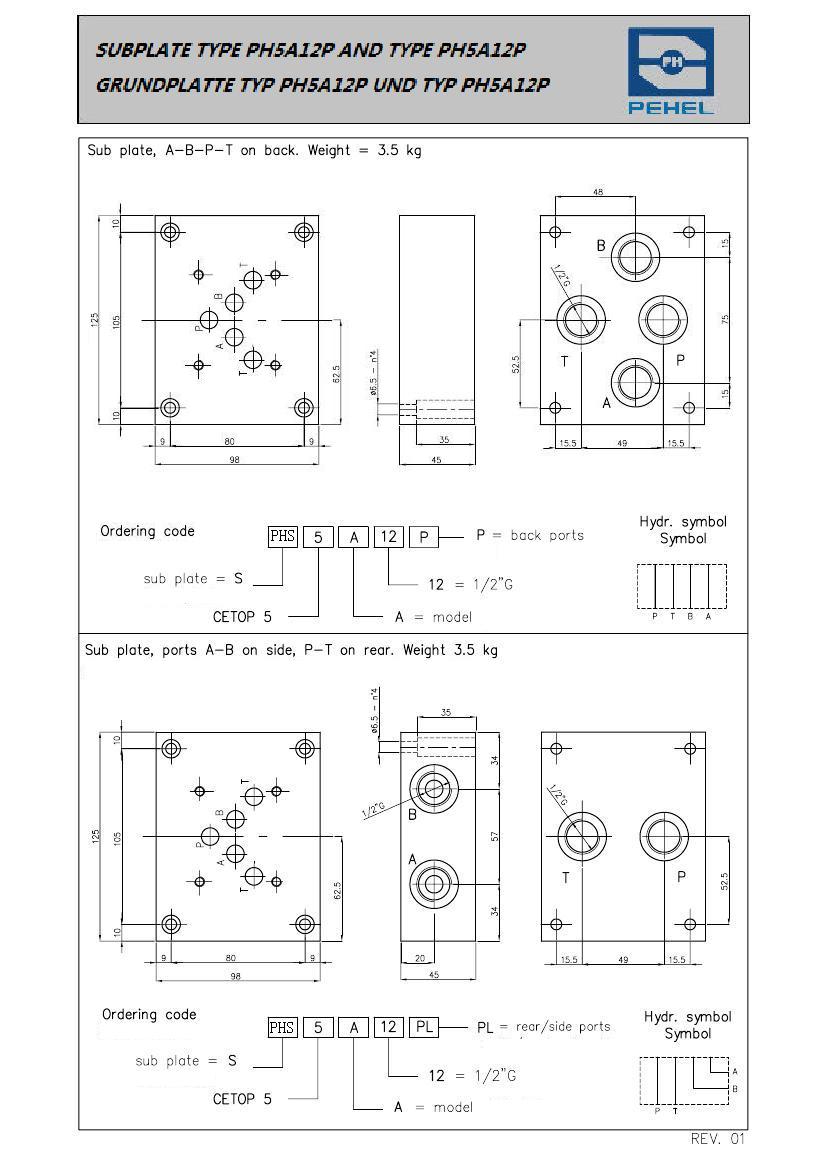

- 1. Sub plate, A-B-P-T on back. Weight=3.5kg
2. Sub plate, ports A-B on side, P-T on rear. Weight=3.5kg
3. Scientific design and precise manufacturing
4. High performance and cost effective. Type: Hydraulic Valve Subplate
Ports: A, B, P, T (4-way)
Thread Options: G, NPT, SAE, Metric (customizable)
Port Positions: Side, Bottom, Rear (as required)
Material: Carbon steel
Brand: PEHEL, OEM
About the item:
1.Hydraulic valve subplate designed with standard A, B, P, T ports for mounting directional control valves and other hydraulic components.
2.Port sizes and thread types available in G (BSPP), NPT, SAE, or metric threads to meet specific system requirements.
3.Port positions can be configured on side, bottom, or rear faces according to installation needs.
4.Manufactured from high-strength carbon steel with anti-rust surface treatment for reliable performance in hydraulic systems.
5.Precision machined sealing surfaces and threaded ports ensure leak-free interface between valve and subplate.
