THREAD DIMENSIONS PART NO. E F L S1 7N-02 Z1/8"X27 Z1/8"X27 24 17 7N-02-04 Z1/8"X27 Z1/4"X18 27 19 7N-02-06 Z1/8"X27 Z3/8"X18 30 22 7N-04 Z1/4"X18 Z1/4"X18 29 19 7N-04-06 Z1/4"X18 Z3/8"X18 31 22 7N-04-08 Z1/4"X18 Z1/2"X14 35 30 7N-06 Z3/8"X18 Z3/8"X18 29 22 7N-06-08 Z3/8"X18 Z1/2"X14 38 30 7N-06-12 Z3/8"X18 Z3/4"X14 40 36 7N-08 Z1/2"X14 Z1/2"X14 38 30 7N-08-12 Z1/2"X14 Z3/4"X14 43 36 7N-12 Z3/4"X14 Z3/4"X14 39 36 7N-12-16 Z3/4"X14 Z1"X11.5 45.5 41 7N-16 Z1"X11.5 Z1""X11.5 48 41 7N-20 Z1.1/4"X11.5 Z1.1/4"X11.5 49 50 7N-24 Z1.1/2"X11.5 Z1.1/2"X11.5 49 60 7N-32 Z2"X11.5 Z2"X11.5 50 70

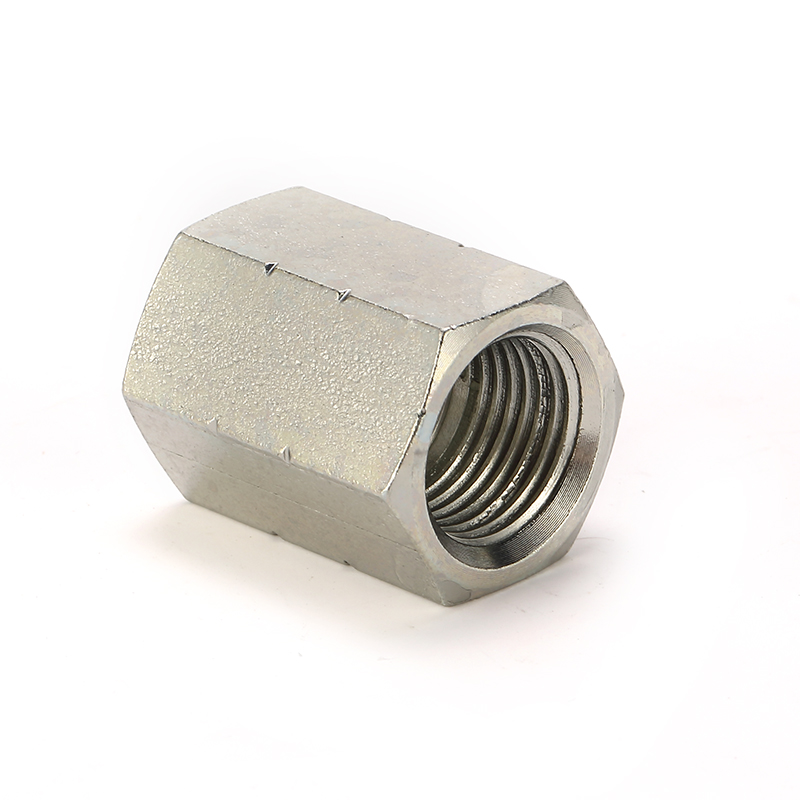

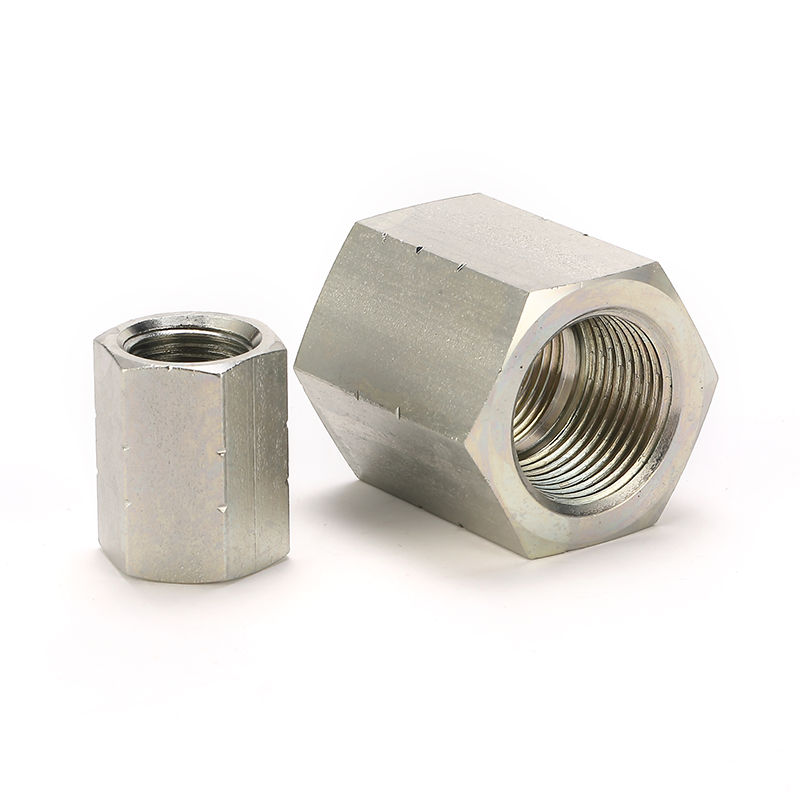

Pehel | NPT Female Nut | Carbon Steel Zinc Plated Thread Fitting
PEHEL Hydraulic Model: P7N
QTY:
Material: Carbon steel, stainless steel
Brand: Pehel, OEM
Color: Silver color zinc plating
Connector Type: nut
Thread Type: NPT
About the item:
- 1.This NPT Female nut adopts precision machining to guarantee tight NPT thread sealing without leakage.
- 2.Carbon steel NPT Female nut with silver zinc plating delivers excellent rust resistance for hydraulic pipelines.
- 3.We provide stainless steel NPT Female nut option to meet demanding corrosive working conditions.
- 4.Standard size NPT Female nut fits perfectly with common hydraulic pipe fittings for easy assembly.
- 5.High tensile strength structure makes our NPT Female nut stable under continuous high-pressure operation.
