PEHEL | Subplate with G Thread Ports, A-B Side Mounting, P-T Side or Rear Mounting

PEHEL Hydraulic Model: PHS5B..PL

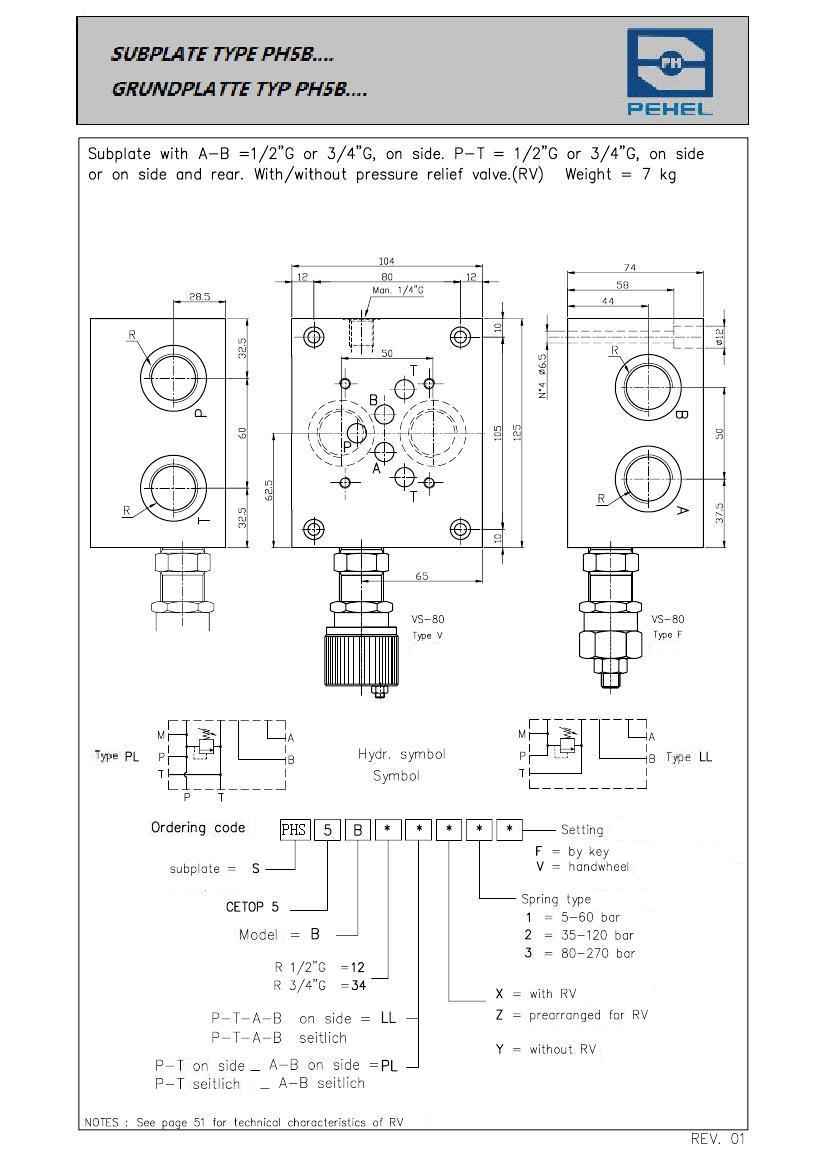

• 1. Subplate with A-B=1/2”G or 3/4”G, on side. P-T =1/2”G or 3/4”G, on side or on side and rear.
  2. With/without pressure relief valve.(RV)
  3. Weight=7kg
  4. up to 8 stations
  5.  Superior in quality and competitive in price

• • Type: Hydraulic Valve Subplate

  • Brand: PEHEL, OEM

  • Material: Carbon steel

  • A-B Ports: Side, G1/2" or G3/4"

  • P-T Ports: Side only or Side + Rear, G1/2" or G3/4"

  • Surface Treatment: Anti-rust treated




    1. About the item:

       1.Hydraulic valve subplate designed for mounting directional control valves, featuring G thread ports for fluid connections.

    2. 2.A-B ports located on the side, available in either G1/2" or G3/4" thread size.

    3. 3.P-T ports configurable on the side only, or on both side and rear, with either G1/2" or G3/4" thread size.

    4. 4.Manufactured from high-strength carbon steel with anti-rust surface treatment for reliable performance in hydraulic systems.

    5. 5.Precision machined sealing surfaces ensure leak-free interface between valve and subplate.
