PART NO. THREAD DIMENSIONS E A L S2 9F-04 9/16"X18 8.5 18 19 9F-06 11/16"X16 10 22 22 9F-08 13/16"X16 11 24 27 9F-10 1"X14 13.5 28 30 9F-12 1.3/16"X12 15 30 36 9F-16 1.7/16"X12 15 32 41 9F-20 1.11/16"X12 15 32 50 9F-24 2"X12 16 33 60

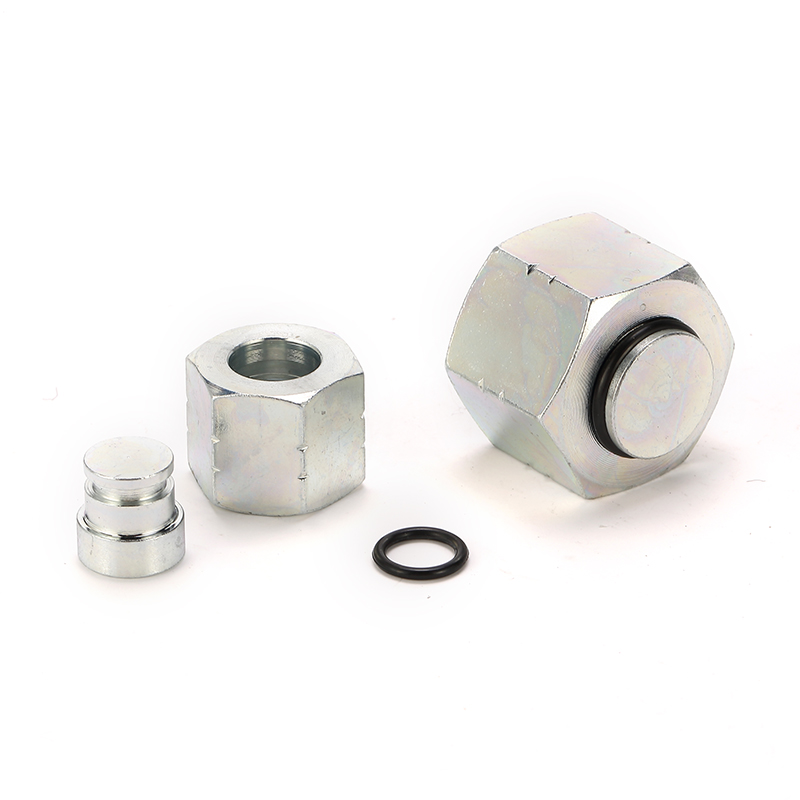

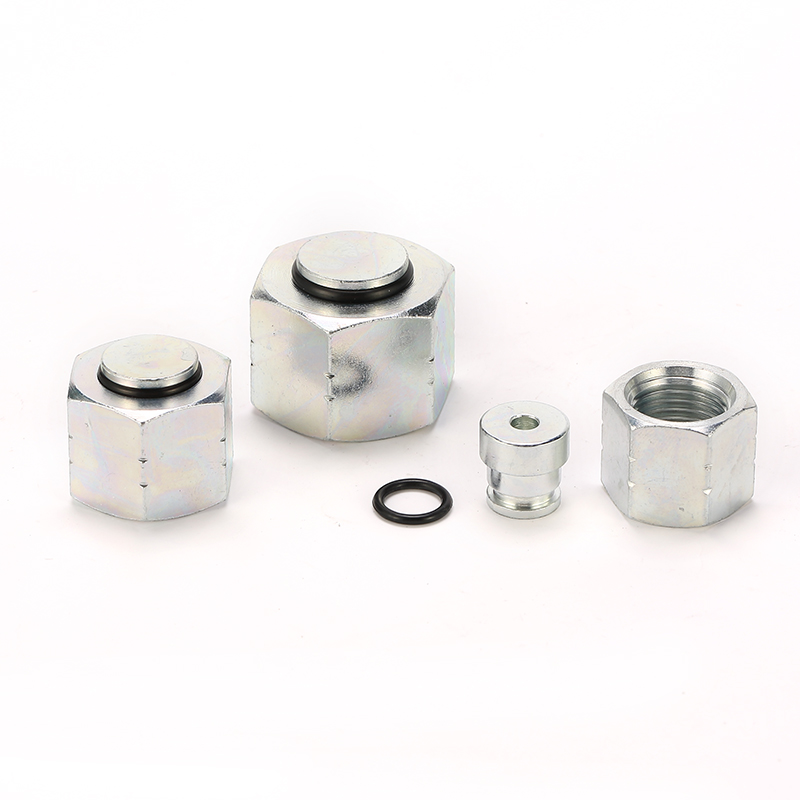

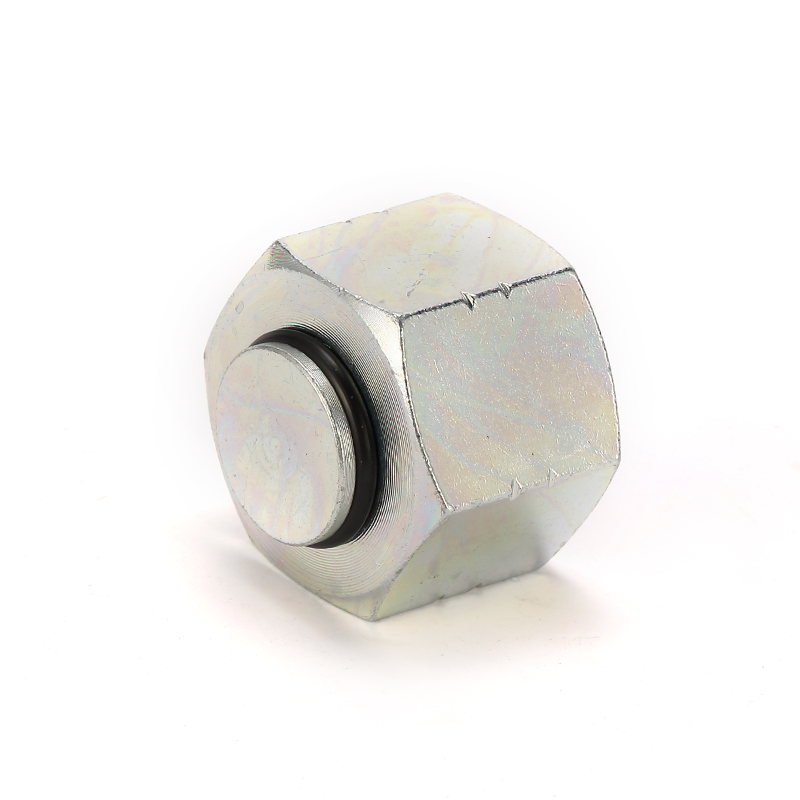

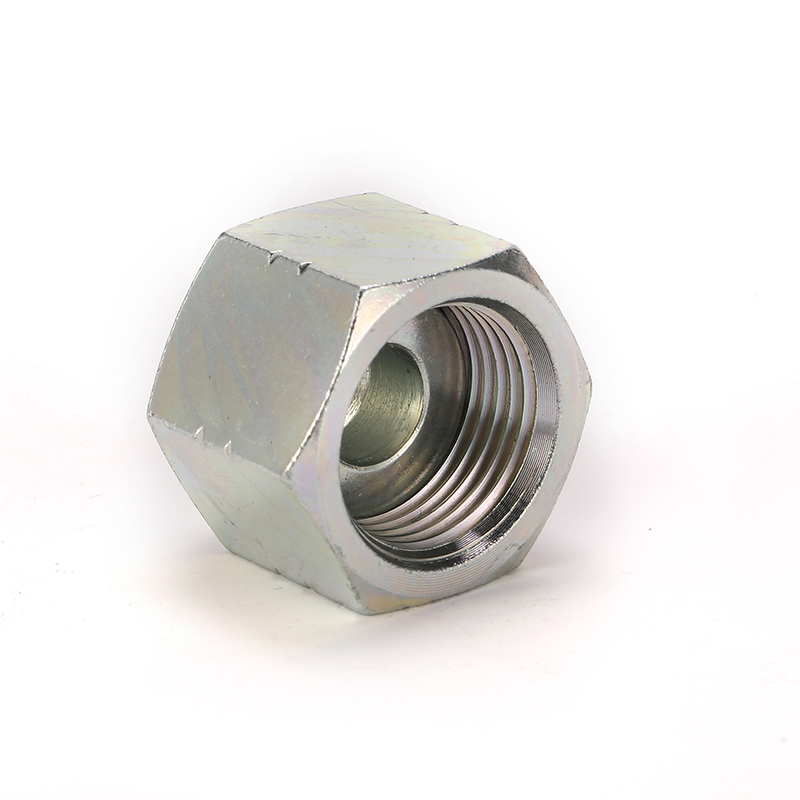

PEHEL | ORFS Female Flat Plug, Hydraulic Port Cap with ORFS Female Thread, Carbon Steel
PEHEL Hydraulic Model: 9F
QTY:
Material: Carbon steel
Brand: PEHEL, OEM
Color: Silver (zinc-plated)
Connector Type: Plug / Cap Plug
Thread Type: ORFS Female (standard ORFS thread
About the item:
1.ORFS female flat plug with integrated O-ring provides reliable face seal, effectively preventing oil leakage and contamination ingress at ORFS hydraulic ports.
2.Precision-machined flat sealing face with O-ring groove ensures positive sealing under pressure, eliminating the need for additional sealants or tape.
3.Female ORFS threads guarantee precise compatibility with standard ORFS male connectors and adapters for quick, secure installation.
4.Made of high-strength carbon steel with zinc-plated anti-rust surface treatment, offering excellent corrosion resistance and long service life in demanding environments.
5.Ideal for capping open ORFS ports during maintenance, transport, or storage, protecting hydraulic systems from dust, dirt, and moisture.
