PART NO. THREAD DIMENSIONS E F G A B C S1 HN-02 Z1/8"X27 Z1/8"X27 Z1/8"X27 20 20 24.5 16 HN-04 Z1/4"X18 Z1/4"X18 Z1/4"X18 25 25 28.5 19 HN-06 Z3/8"X18 Z3/8"X18 Z3/8"X18 27 27 33.5 24 HN-08 Z1/2"X14 Z1/2"X14 Z1/2"X14 35 35 42.5 30 HN-12 Z3/4"X14 Z3/4"X14 Z3/4"X14 37 37 45.2 33 HN-16 Z1"X11.5 Z1"X11.5 Z1"X11.5 44 44 54.7 41 HN-20 Z1.1/4"X11.5 Z1.1/4"X11.5 Z1.1/4"X11.5 48 48 58.5 48

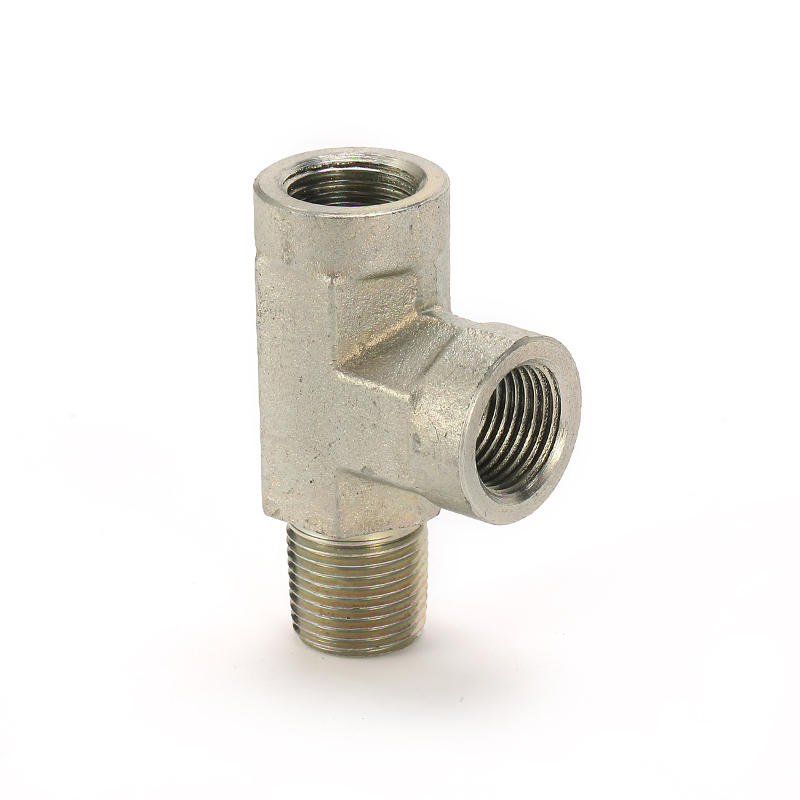

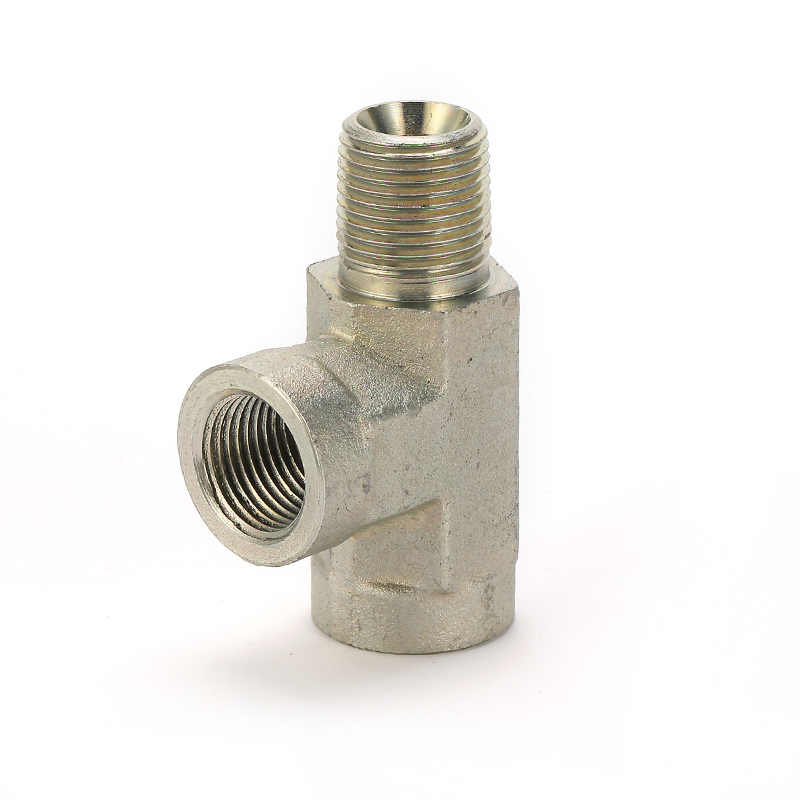

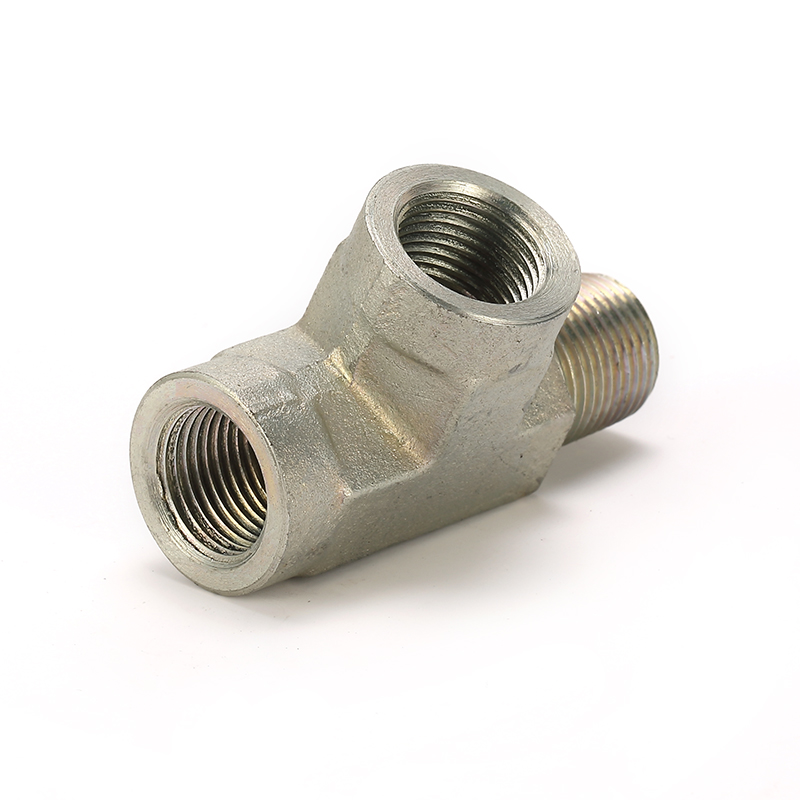

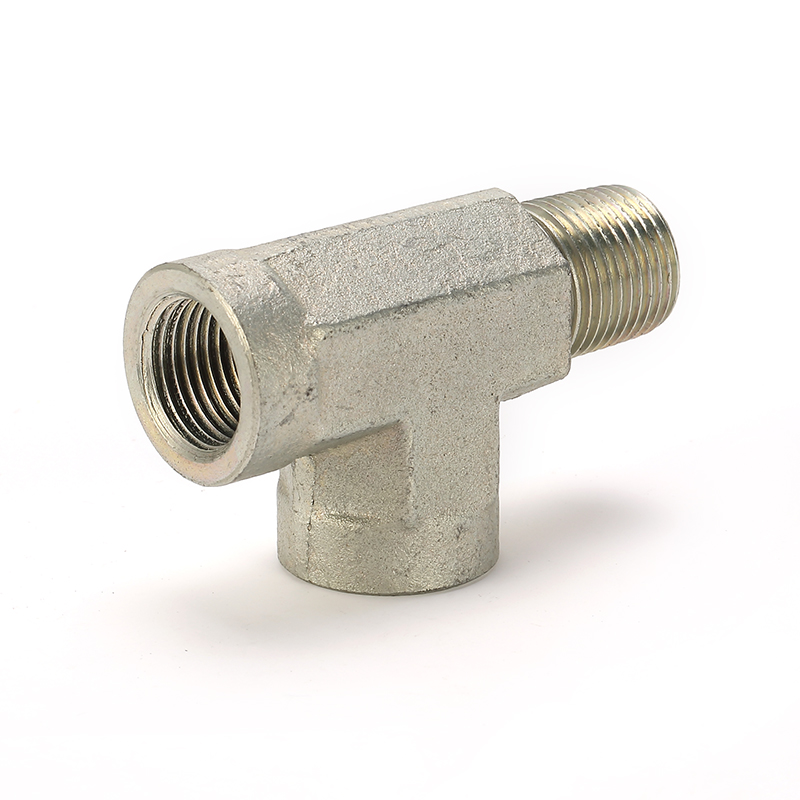

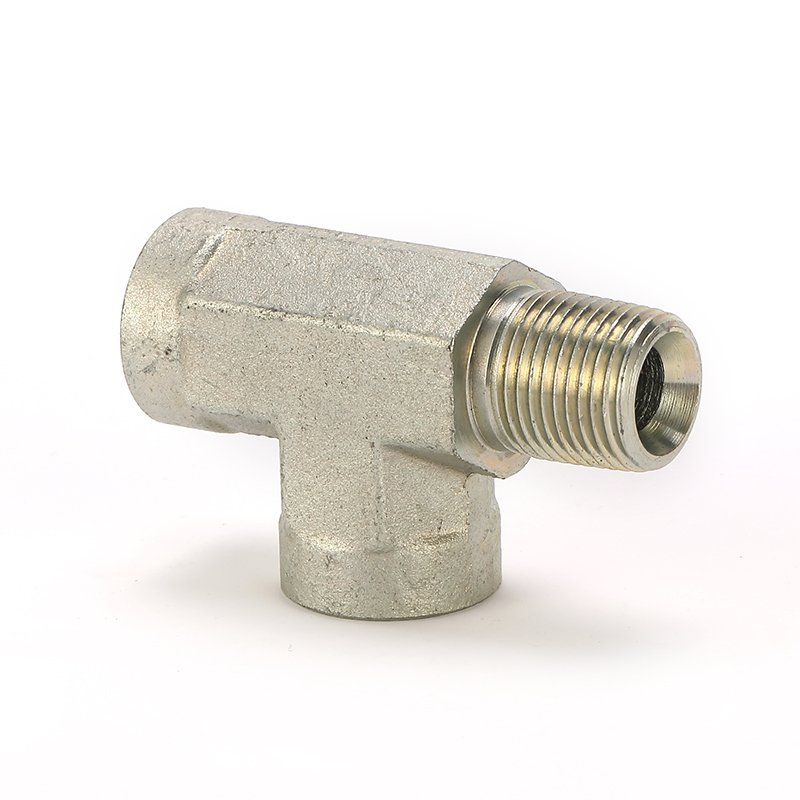

3 Way NPT Thread Connector Double NPT Female & Single NPT Male Hydraulic Adapter
PEHEL Hydraulic Model: HN
QTY:
Material: Carbon steel, stainless steel
Brand: Pehel, OEM
Color: Silver color zinc plating
Connector Type:
Thread Type:
- About the item:
- This 3 way NPT fitting features two NPT female threads and one NPT male thread for multi-branch hydraulic pipeline connection.
- Made of carbon steel and stainless steel, the NPT female NPT male adapter has excellent pressure resistance for heavy-duty hydraulic equipment.
- The silver zinc plating surface of the triple port NPT connector provides reliable anti-rust performance and extends service life.
- Pehel brand and OEM custom services are available for the 3 port NPT threaded coupling, meeting bulk wholesale customization needs.
- Precision machined NPT threads on this hydraulic pipe fitting ensure tight connection, effectively preventing oil leakage during operation.
