PART NO. THREAD E HOSE BORE DIMENSIONS DN DASH A H S1 S2 15691KSW-04-04 Z1/4"X18 6 04 25 47.5 16 17 15691KSW-06-04 Z3/8"X18 6 04 25 50.5 16 22 15691KSW-06-06 Z3/8"X18 10 06 25 50.5 16 22 15691KSW-08-06 Z1/2"X14 10 06 28 55.5 19 24 15691KSW-08-08 Z1/2"X14 12 08 28.5 55.5 19 24 15691KSW-12-10 Z3/4"X14 16 10 35.5 69 27 32 15691KSW-12-12 Z3/4"X14 20 12 36 69 27 32 15691KSW-16-12 Z1"X11.5 20 12 32 75 33 36 15691KSW-16-16 Z1"X11.5 25 16 30.7 75 33 36 15691KSW-20-20 Z1.1/4"X11.5 32 20 40.5 83 41 46
PEHEL | Hydraulic 90 NPT Swivel Male Thread Hose Fitting | Easy To Install
PEHEL Hydraulic Model: 15691KSW
QTY:

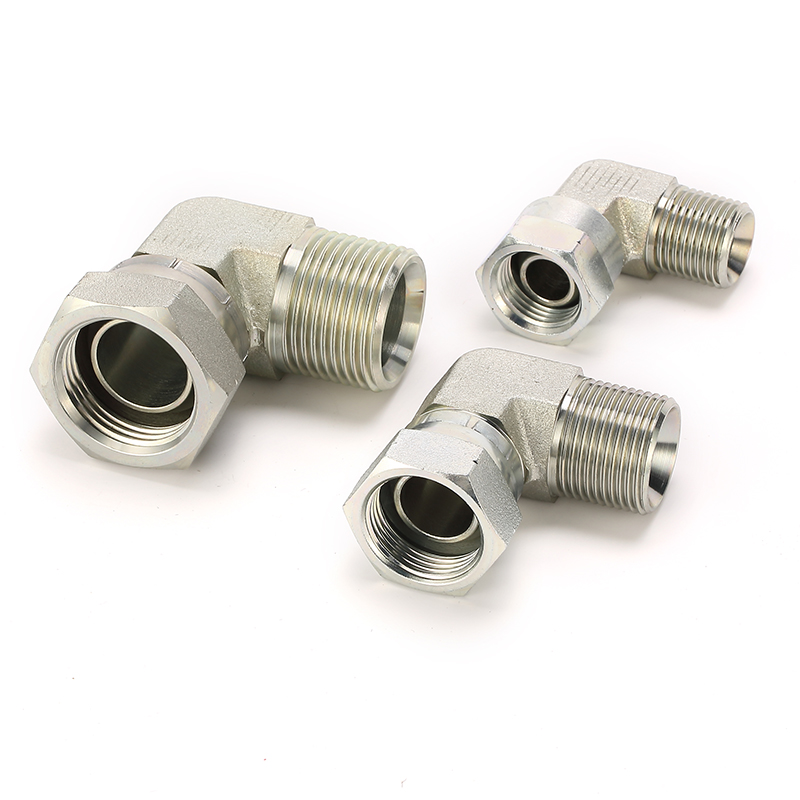

90° NPT Swivel Male 15691KSW Hose Factory
Material: Carbon steel, Stainless Steel, Aluminium, Brass
Brand: Pehel, OEM
Color: Silver
Connector Type: 90 Elbow
Thread Type: Hydraulic Hose Fitting
1. Standard size for wide-range hydraulic hose applications
2. Designed for high-pressure hydraulic systems
3. Superior structural strength, anti-deformation under extreme pressure
4. Premium carbon steel construction for long-term service life
