THREAD DIMENSIONS PART NO. E F A B L S2 S3 3J-04 7/16"X20 7/16"X20 9.5 9.5 19 17 17 3J-05 1/2"X20 1/2"X20 9 9 21 19 19 3J-06 9/16"×18 9/16"×18 9.5 9.5 21 19 19 3J-06-08 9/16"X18 3/4"×16 9.5 10.8 23 19 24 3J-08 3/4"×16 3/4"×16 10.8 10.8 24 24 24 3J-10 7/8""X14 7/8"×14 12 12 27 27 27 3J-12 1.1/16"×12 1.1/16"×12 13 13 27.5 32 32 3J-16 1.5/16"X12 1.5/16"×12 14 14 30.5 41 41 3J-20 1.5/8"×12 1.5/8"X12 15 15 35 50 50 3J-24 1.7/8"×12 1.7/8"×12 19 19 37 55 55

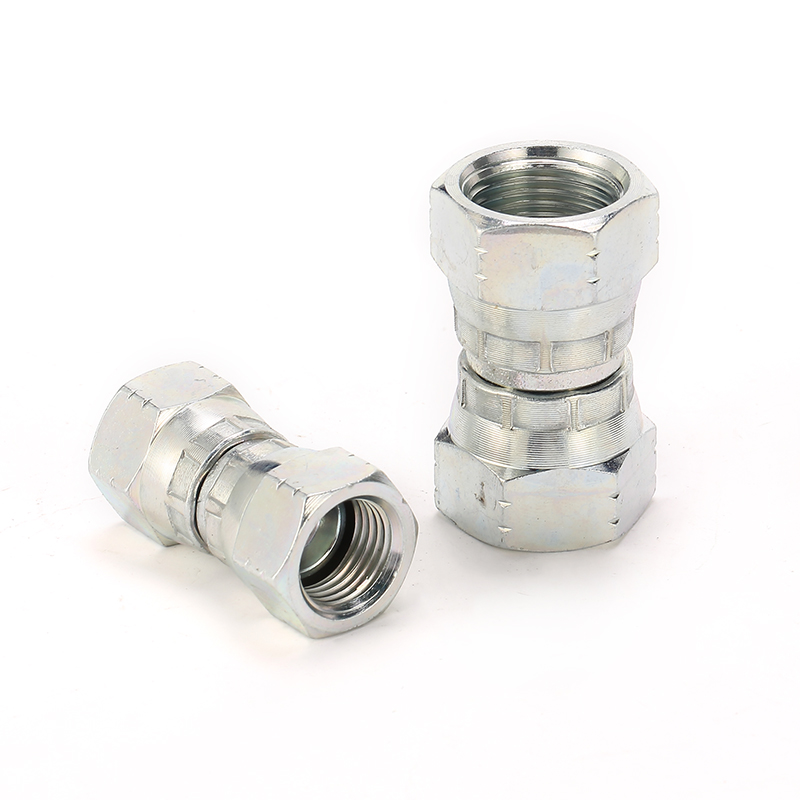

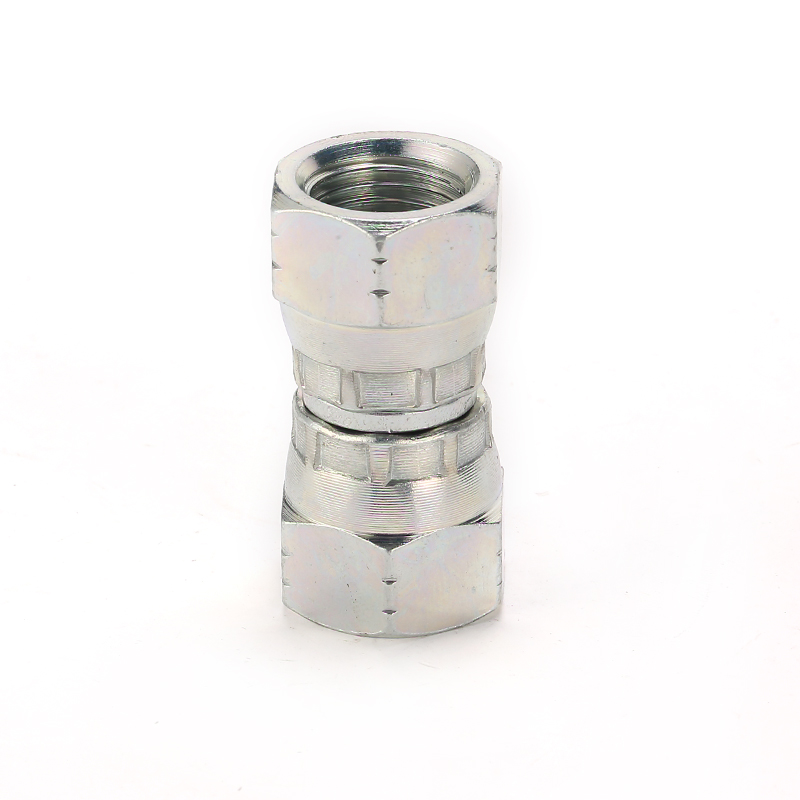

PEHEL | JIC FEMALE 74° SEAT HYDRAULIC HOSE ADAPTER| Full CNC PRECISION MACHING
PEHEL Hydraulic Model: P3J
QTY:
Material: Carbon steel, Stainless Steel, Aluminium, Brass
Brand: Pehel, OEM
Color: Silver
Connector Type: Straight
Thread Type: Hydraulic Hose Adapter
1. Full CNC precision machining, strictly controlled dimensional tolerance
2. Material certificate, pressure test report & salt spray report available
3. Full sizes in stock, fast delivery for small sample orders
4. Independent moisture & rust-proof packaging, no corrosion during long sea transport
5. Custom non-standard drawing support, mold opening for special angles & threads
