NPT,SAE,PT thread for all parts is availableParameter Details Model Base PHM207 Type Monoblock valve with side ports Port Sizes A-B = 1" G、P = 1" G，T = 1¼" G Connection Configuration Parallel connection Relief Valve (RV) Option Available (with / without / pre-arranged) Standard Spring Ranges 0 = 1.7–70 bar Number of Sections 2, 3, or 4 Hydraulic Symbol CETOP 7 Weight (approx.) Depended
Pehel | PHM207 | Hydraulic Carbon Steel Manifold Block

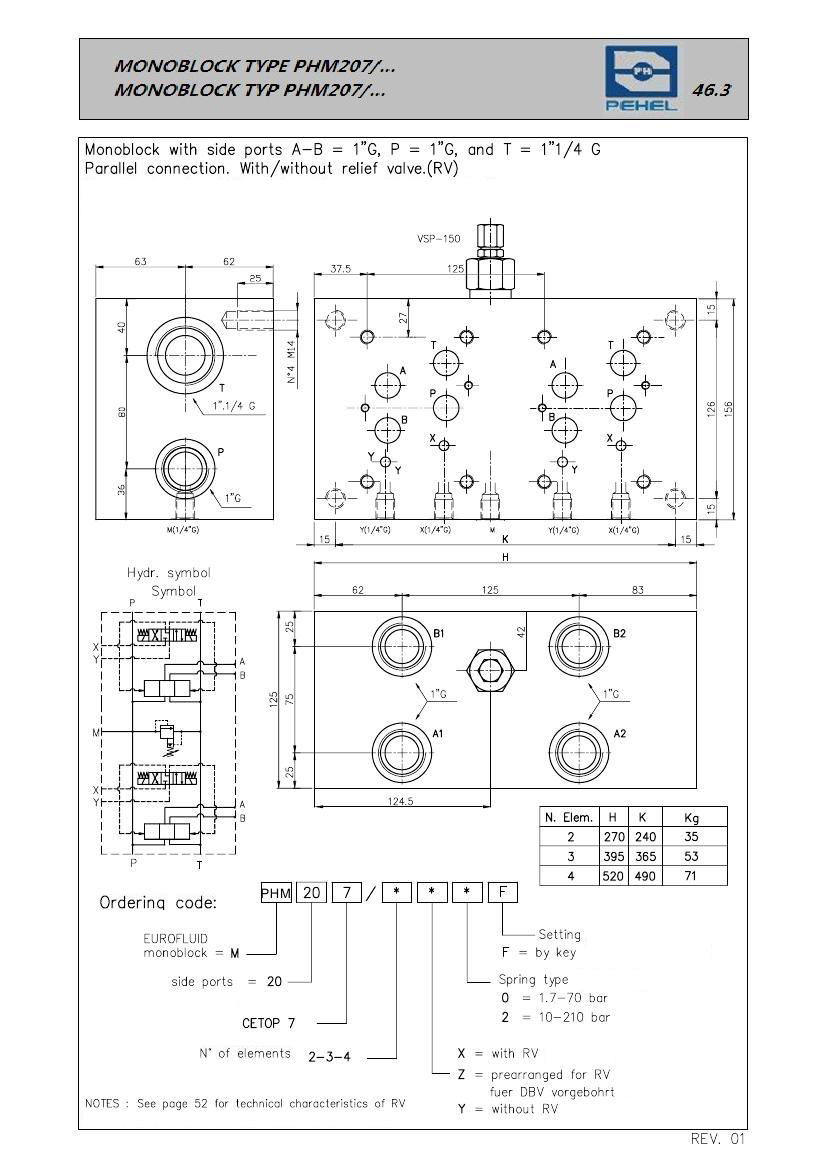

PEHEL Hydraulic Model: PHM207/
QTY:
- 1. Monoblock with side ports A-B=1”G, and T=1”1/4 G
2. Parallel connection. With/without relief valve. (RV)
3. up to8 stations
4. NPT, SAE, PT thread for all parts is available
5. Scientific design and precise manufacturing Material: Carbon steel
Brand: Pehel
Color: Silver
OEM Designed: Yes
Surface Treatment: Zinc Plated
About the item:
1. Compact integration – combines multiple valve functions in one block.
2. Customizable ports – tailored drilling for specific hydraulic circuits.
3. Leak-free operation – precision-machined surfaces minimize fluid loss.
4. Space-saving design – eliminates complex piping and fittings.
5. Durable construction – high-strength material for high-pressure systems.
