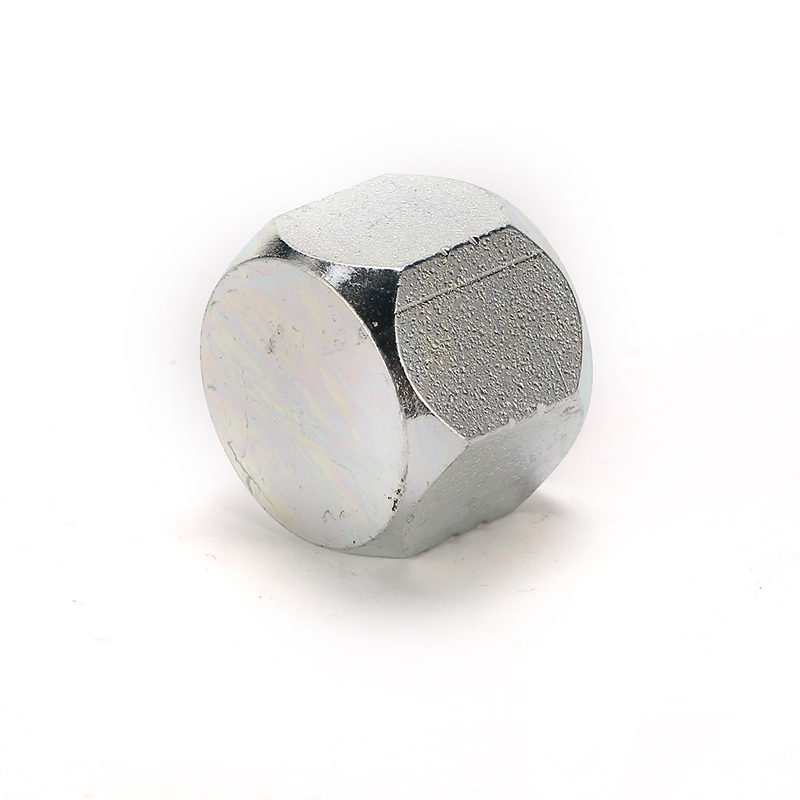

JIC 74 Degree Female Plug Carbon Steel Zinc Plated Hydraulic Pipe Fitting

JIC 74 Degree Female Plug Carbon Steel Zinc Plated Hydraulic Pipe Fitting

PEHEL Hydraulic Model: P9J-CAP

QTY:

  • Material: Carbon steel, stainless steel

    Brand: Pehel, OEM

    Color: Silver color zinc plating

    Connector Type: Sealing plug type

    Thread Type:Standard JIC thread

  • About the item:
    1. The JIC 74 female plug features standard 74-degree angle design for precise hydraulic pipe matching and tight sealing.
    2. Premium carbon and stainless steel material makes thishydraulic pipe plug high-strength and pressure-resistant.
    3. Silver zinc plated surface effectively resists rust and corrosion, extending the service life of the JIC hydraulic fitting.
    4. Precision machined zinc plated plug ensures zero leakage in industrial hydraulic pipeline sealing systems.
    5. Standard JIC thread structure enables quick and stable installation for this steel pipe plug in various equipment.

  • Specification
  • You May Also Like

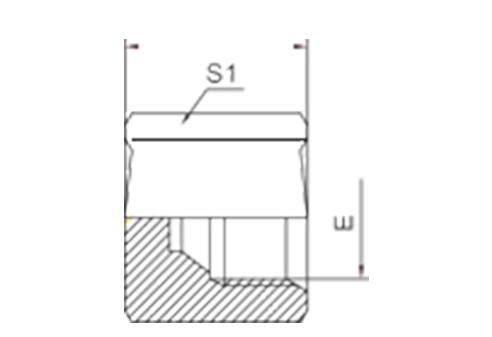

  • THREADDIMENSIONS
    PART NO.
    ELS1
    9J-04CAP7/16"X2015.114
    9J-05CAP1/2"X2015.517
    9J-06CAP9/16"X181619
    9J-08CAP3/4"X161924
    9J-10CAP7/8"X1421.427
    9J-12CAP1.1/16"X122332
    9J-16CAP1.5/16"X1225.841
    9J-20CAP1.5/8"X122750
    9J-24CAP1.7/8"X1230.260
    9J-32CAP2.1/2"X1236.575
