PEHEL | Modular Block for Pressure Reducing Valve, Hydraulic Sandwich Block with P-T 1/2" G Ports

PEHEL Hydraulic Model: PHM223R

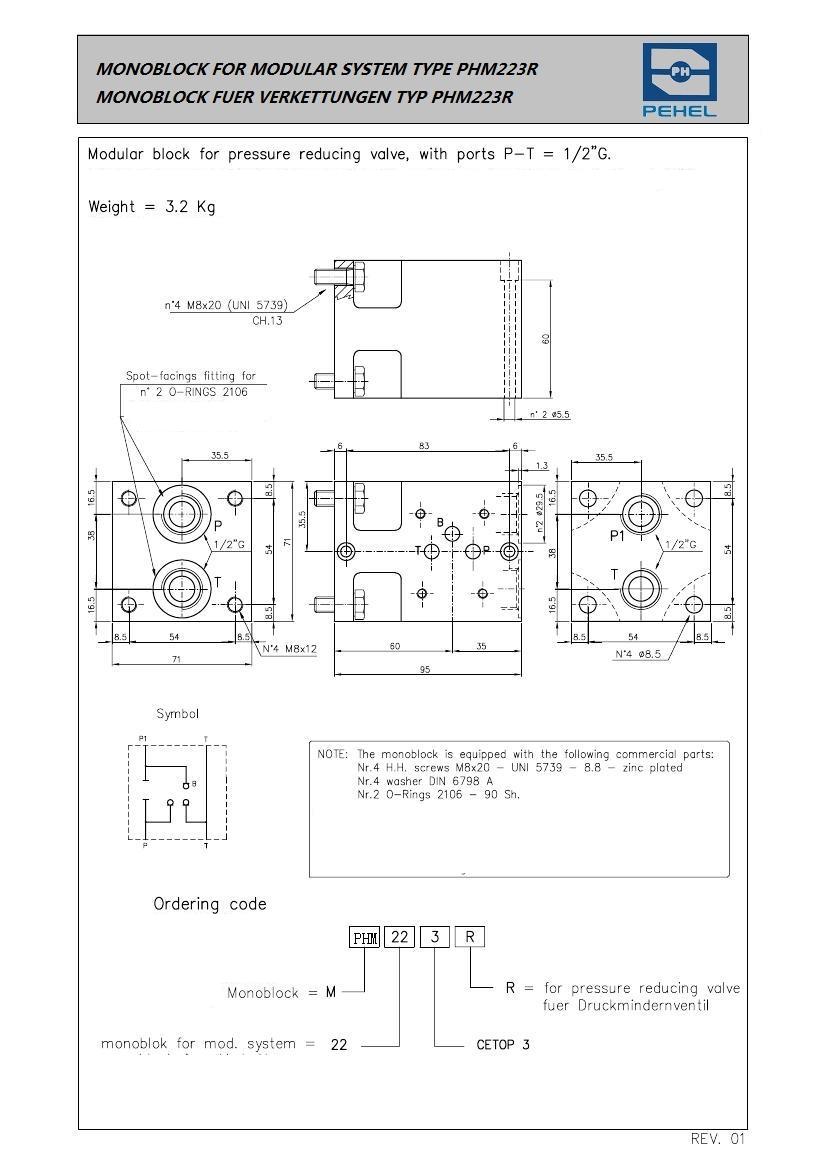

• 1. Modular block for pressure reducing valve, with ports P-T=1/2”G.
  2. Weight=3.2kg
  3. High performance and cost effective.
  4. NPT, SAE, PT thread for all parts is available

• • Type: Modular Block for Pressure Reducing Valve

  • Ports: P-T 1/2" G

  • Weight: 3.2 kg

  • Material: Carbon steel

  • Brand: PEHEL, OEM

  • Surface Treatment: Anti-rust coated

  • Thread Options: NPT, SAE, PT (available upon request)




    1. 1.Modular block designed for mounting pressure reducing valves in hydraulic systems, featuring P-T ports with 1/2" G threads.

    2. 2.Sandwich type construction allows easy integration into existing hydraulic circuits.

    3. 3.Manufactured from high-strength carbon steel with anti-rust surface treatment for reliable performance.

    4. 4.Precision machined mounting surfaces and port threads ensure leak-free interface with valves and fittings.

    5. 5.Delivers high performance with excellent cost effectiveness for hydraulic system applications.
