Pehel | PHM213 | Hydraulic Manifold Block

PEHEL Hydraulic Model: PHM213

QTY:

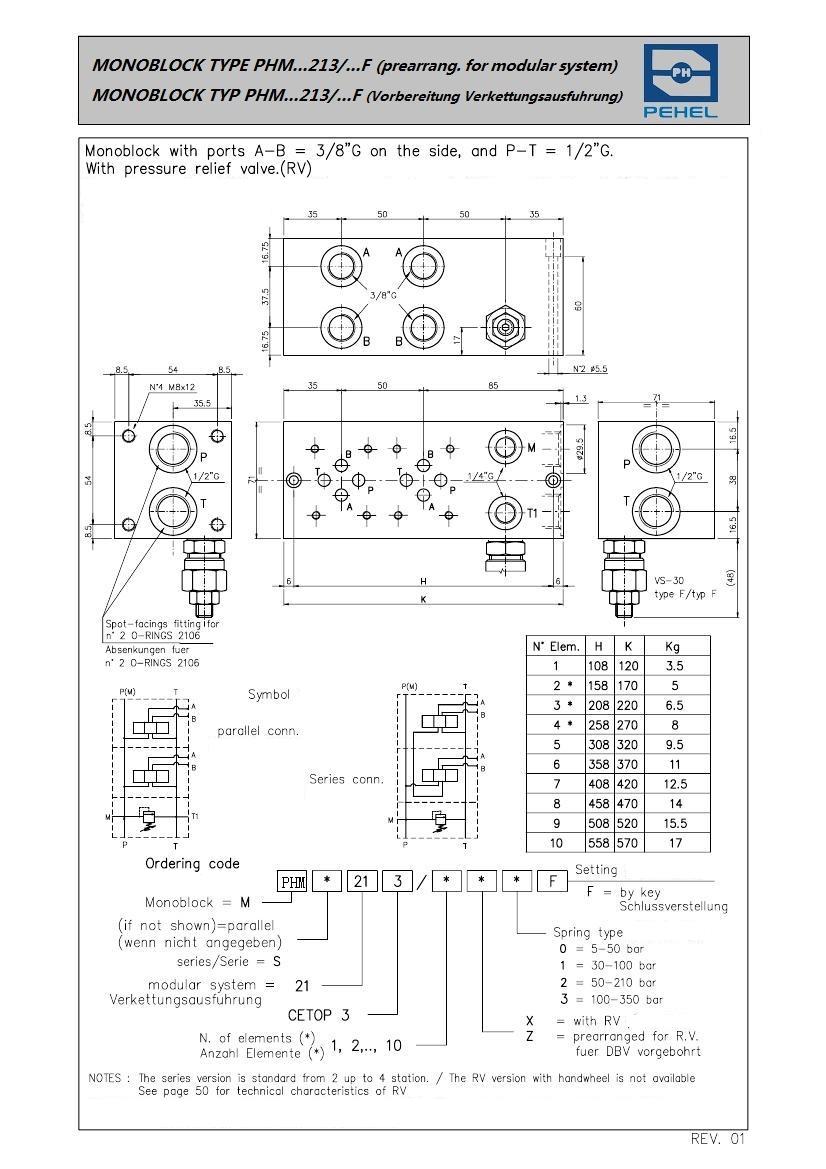

  • 1. Monoblock with ports A-B=3/8”G on the side, and P-T=1/2”G
    2. With pressure relief valve. (RV)
    3. up to 8 stations
    4. Superior in quality and competitive in price
  • Material: Aluminum

    Brand: Pehel, OEM

    Color: Silver

    Surface Treatment: Oxidation


  • About the item:


    1. 1. The hydraulic oil block and manifold reduce piping and leaks.

    2. 2. The oil block integrates valves into one compact unit.

    3. 3. The manifold subplate simplifies installation and alignment.

    4. 4. The hydraulic oil block enables customized circuit design.

    5. 5. The manifold and manifold subplate improve system reliability.

  • You May Also Like


  • N.of elements
    H(mm)K(mm)KG
    11081203.5
    21581705
    32082206.5
    42582708
    53083209.5
    635837011
    740842012.5
    845847014
    950852015.5

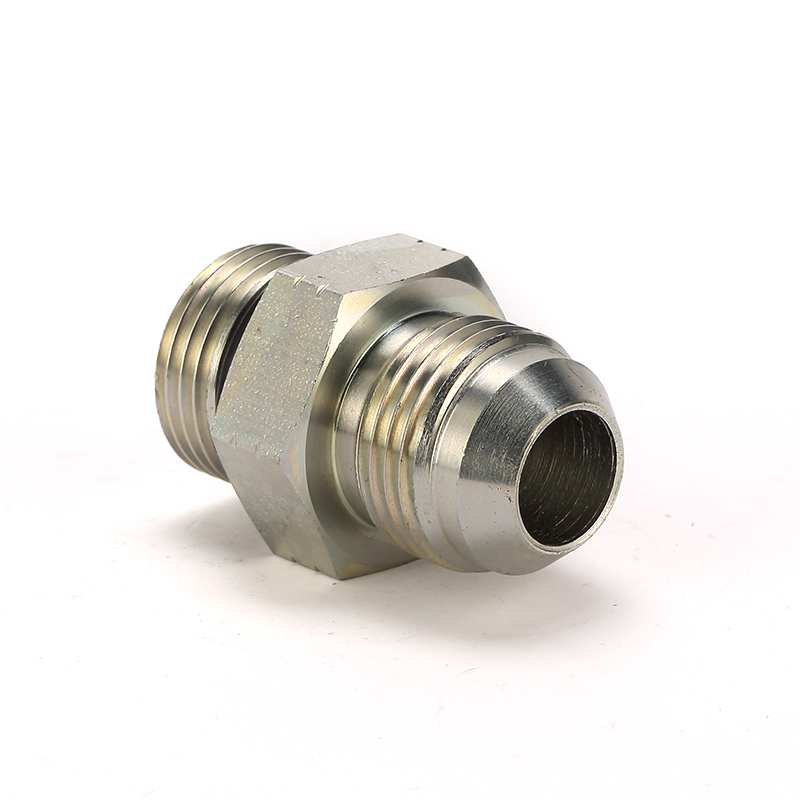

  • Pehel/P1JO/JIC Male to SAE O-ring Male Adapter

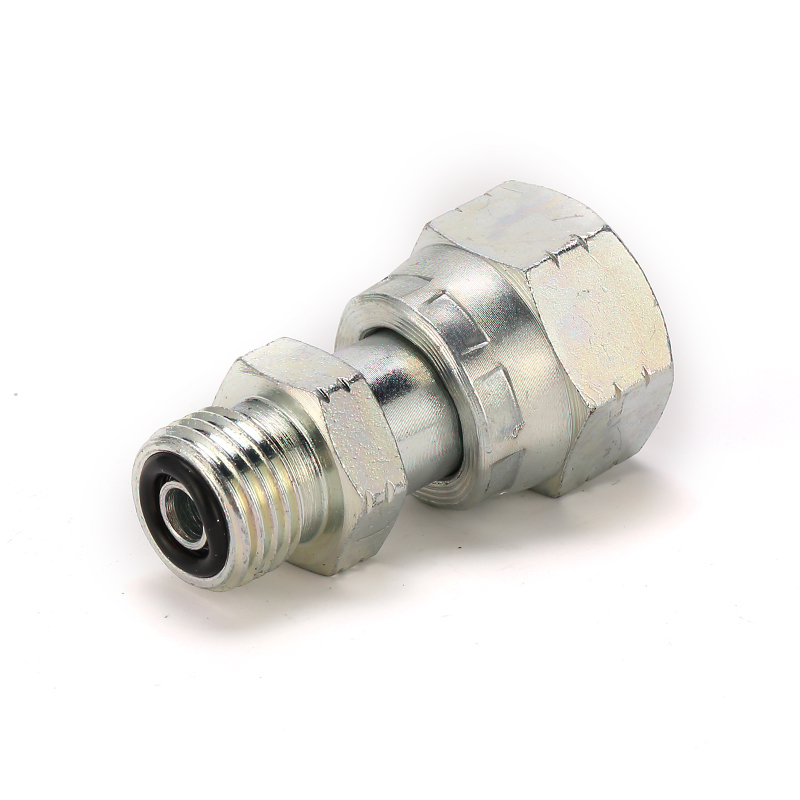

    Pehel/P2F/ORFS male to swivel female hose adapter

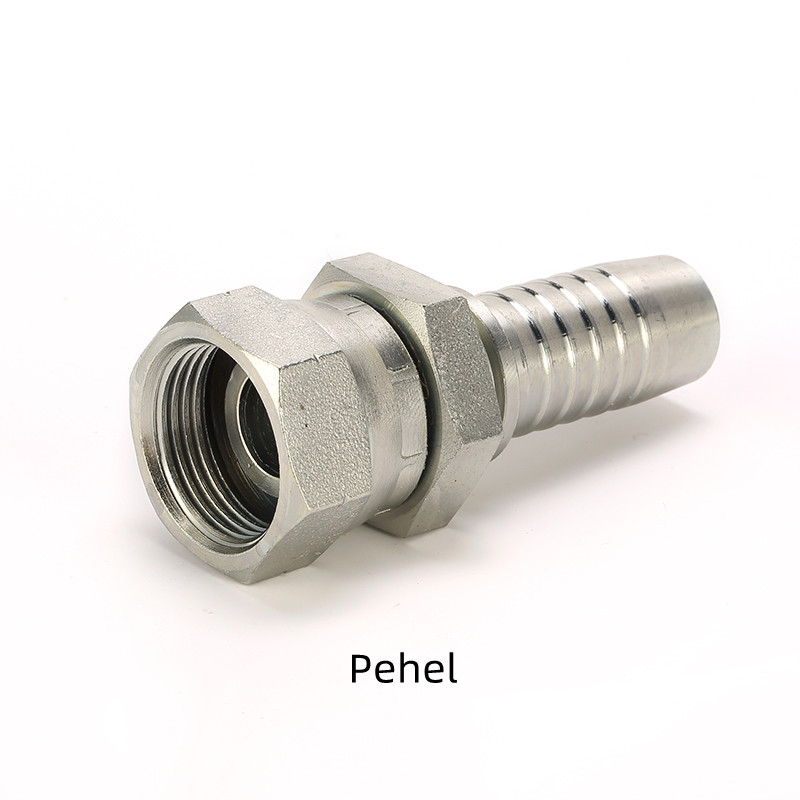

    Pehel/P22611D/BSPP Double Hex Female Hose Fitting

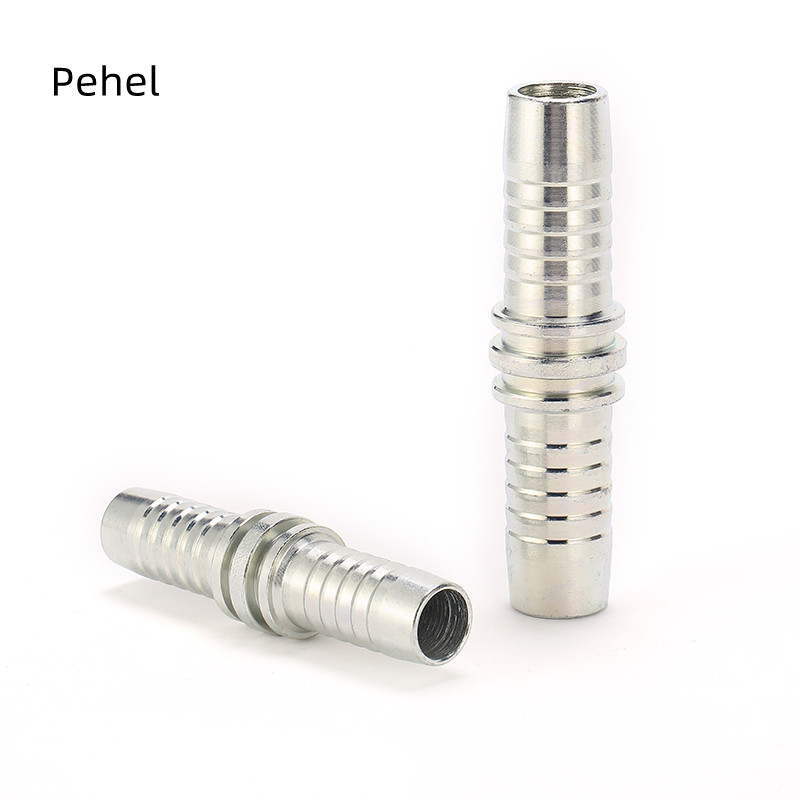

    Pehel/P90011/Hydraulic Double Hose Connector
