Item Description Type Monoblock valve body Model PHM253 Ports A-B = 1/2" G (side)；P-T = 3/4" G Standard Feature With/without pressure relief valve (RV). Pre-arranged for 2/2 bypass valve (N.A. or N.C.) Mounting Interface CETOP 3 Mounting Holes 4 × M10×15 (depth) Weight Range 6.3 ~ 22.8 Kg (depending on length) Circuit Type Parallel connection
Pehel | PHM253...FK| Hydraulic Manifold Oil Blocks
PEHEL Hydraulic Model: PHM253...FK
QTY:

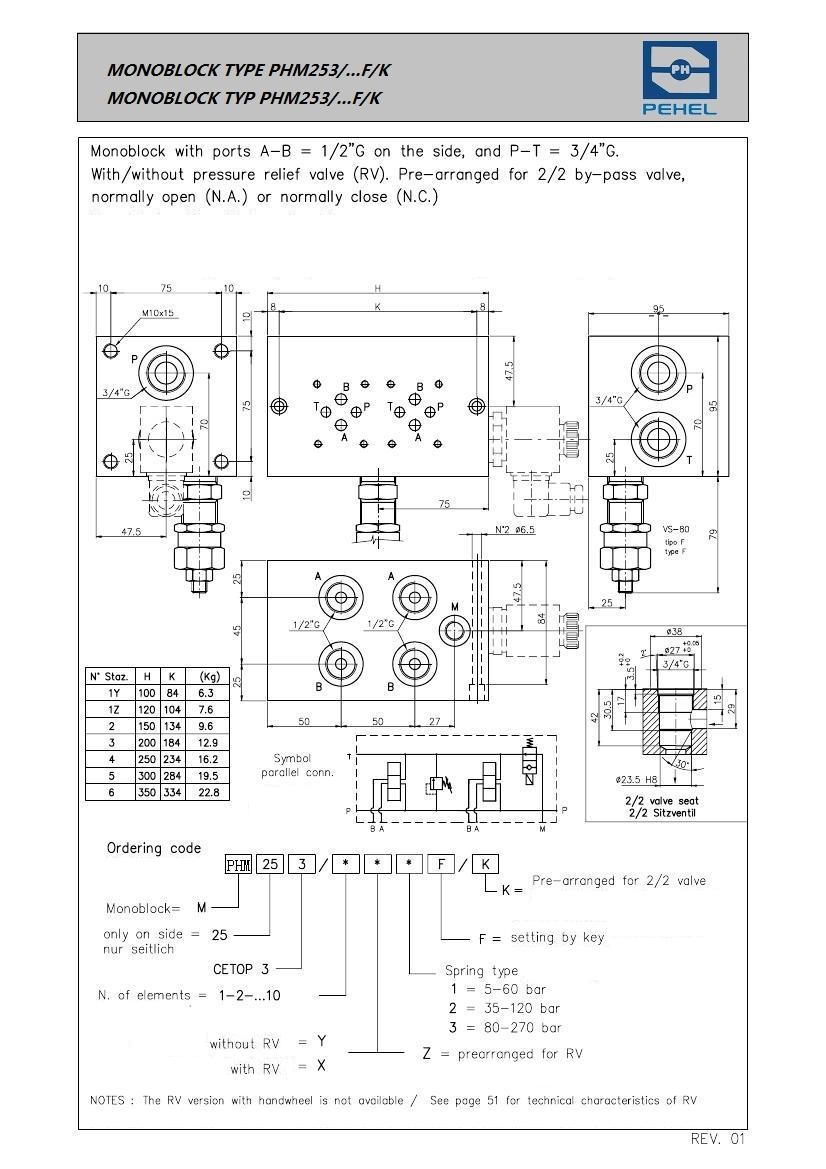

- 1. Monoblock with ports A-B=1/2”G on the side, and P-T=3/4”G
2. With/ without pressure relief valve. (RV)
3. Pre-arrange for 2/2 by pass valve, normally open (N.A.) or normally close (N.C.).
4. Superior in quality and competitive in price
5. Scientific design and precise manufacturing Material: Carbon steel/Aluminum
Brand: Pehel
Color: Silver
OEM Designed: Yes
Surface Treatment: Zinc Plated
Customized: Yes
About the items:
1.Compact manifold block – integrates multiple valve functions into a single unit.
2. Customizable oil block – tailored porting and drilling for specific hydraulic circuits.
3. Standardized subplate interface – conforms to CETOP, ISO, or NFPA mounting patterns.
4. Leak-free design – precision-machined mating surfaces minimize external leakage.
5. Space-saving solution – eliminates complex piping and simplifies system maintenance.
