PART NO. THREAD TUBE O.D. DIMENSIONS E D A L S1 S2 4Q-10 M10X1 5 12.5 18.5 12 14 4Q-12 M12X1.5 6 15.7 21.7 14 14 4Q-14 M14X1.5 8 17 23 17 17 4Q-16 M16X1.5 10 18 24 17 19 4Q-18 M18X1.5 12 18 24 19 22 4Q-22 M22X1.5 14 19.5 27.5 24 27 4Q-24 M24X1.5 16 20 30 27 30 4Q-27 M27X1.5 18 20 30 30 32 4Q-30 M30X1.5 20 23 34 32 36 4Q-33 M33X2 22 26 37 34 41 4Q-36 M36X2 25 25 38 38 41 4Q-39 M39X2 28 26 39 41 46 4Q-42 M42X2 32 28.5 41.5 46 50 4Q-45 M45X2 34 28.5 41.5 46 50 Note: In case if you are interested to order the adapter in complete set with sleeve and nut ,it is necessary to insert suffix "RN" after our part no.,for example 4Q-18RN

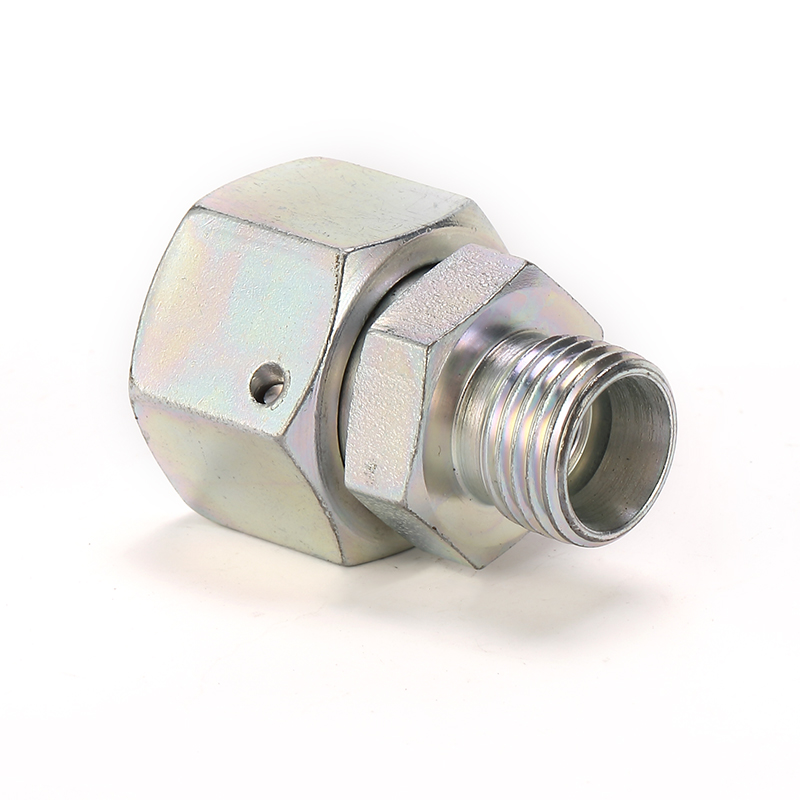

Pehel/4Q/No Leak Metric Male 74 Cone Plug/Easy To Assemble
PEHEL Hydraulic Model: 4Q
QTY:
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver Zinc plating
Connector Type: Plug
Thread Type: Metric 74 cone
About the item:
1.Zinc-plated carbon steel body with salt spray resistance up to 240 hours, effectively preventing corrosion in outdoor and humid working environments.
2.Reliable Manufacturing Quality:15+ years of professional hydraulic component production experience, certified quality control system.
3.Precision sealing: Zero leakage under high pressure.
4.High Precision: Precisely manufactured for smooth installation/disassembly, enhancing system stability.
