THREAD TUBE O.D. DIMENSIONS PART NO. MPa E F D1 D2 I1 L1 S1 S2 S3 2C-12-14 M12X1.5 M14X1.5 6 8 24 31 14 14 17 31.5 L 2C-12-16 M12X1.5 M16X1.5 6 10 25 32 17 14 19 2C-14-16 M14X1.5 M16X1.5 8 10 25.5 32.5 17 17 19 2C-12-18 M12X1.5 M18X1.5 6 12 25 32 17 14 22 2C-14-18 M14X1.5 M18X1.5 8 12 27 34 17 17 22 2C-16-18 M16X1.5 M18X1.5 10 12 28 35 17 19 22 2C-12-22 M12X1.5 M22X1.5 6 15 29 36 22 14 27 2C-14-22 M14X1.5 M22X1.5 8 15 30 37 22 17 27 2C-16-22 M16X1.5 M22X1.5 10 15 30 37 22 19 27 2C-18-22 M18X1.5 M22X1.5 12 15 30 37 22 22 27 2C-12-26 M12X1.5 M26X1.5 6 18 31.5 38.5 24 14 32 2C-14-26 M14X1.5 M26X1.5 8 18 32.5 39.5 24 17 32 2C-16-26 M16X1.5 M26X1.5 10 18 32.5 39.5 24 19 32 2C-18-26 M18X1.5 M26X1.5 12 18 32.5 39.5 24 22 32 2C-22-26 M22X1.5 M26X1.5 15 18 33.5 40.5 24 27 32 2C-12-30 M12X1.5 M30X2 6 22 34.5 41.5 30 14 36 16 L 2C-14-30 M14X1.5 M30X2 8 22 35.5 42.5 30 17 36 2C-16-30 M16X1.5 M30X2 10 22 35.5 42.5 30 19 36 2C-18-30 M18X1.5 M30X2 12 22 35.5 42.5 30 22 36 2C-22-30 M22X1.5 M30X2 15 22 36.5 43.5 30 27 36 2C-26-30 M26X1.5 M30X2 18 22 36 43.5 30 32 36 2C-12-36 M12X1.5 M36X2 6 28 36.5 43.5 36 14 41 2C-14-36 M14X1.5 M36X2 8 28 37.5 44.5 36 17 41 2C-16-36 M16X1.5 M36X2 10 28 37.5 44.5 36 19 41 2C-18-36 M18X1.5 M36X2 12 28 37.5 44.5 36 22 41 2C-22-36 M22X1.5 M36X2 15 28 38.5 45.5 36 27 41 2C-26-36 M26X1.5 M36X2 18 28 38 45.5 36 32 41 2C-30-36 M30X2 M36X2 22 28 38.5 46 36 36 41 2C-12-45 M12X1.5 M45X2 6 35 42.5 49.5 46 14 50 2C-14-45 M14X1.5 M45X2 8 35 43.5 50.5 46 17 50 2C-16-45 M16X1.5 M45X2 10 35 43.5 50.5 46 19 50 2C-18-45 M18X1.5 M45X2 12 35 42 49 46 22 50 2C-22-45 M22X1.5 M45X2 15 35 43 50 46 27 50 2C-26-45 M26X1.5 M45X2 18 35 44 51.5 46 32 50 2C-30-45 M30X2 M45X2 22 35 46 53.5 46 36 50 2C-36-45 M36X2 M45X2 28 35 46 53.5 46 41 50 2C-12-52 M12X1.5 M52X2 6 42 46 53 50 14 60 2C-14-52 M14X1.5 M52X2 8 42 47 54 50 17 60 2C-16-52 M16X1.5 M52X2 10 42 47 54 50 19 60 2C-18-52 M18X1.5 M52X2 12 42 47 54 50 22 60 2C-22-52 M22X1.5 M52X2 15 42 48 55 50 27 60 2C-26-52 M26X1.5 M52X2 18 42 47.5 55 50 32 60 2C-30-52 M30X2 M52X2 22 42 49.5 57 50 36 60 2C-36-52 M36X2 M52X2 28 42 51.5 59 50 41 60 2C-45-52 M45X2 M52X2 35 42 48.5 59 50 50 60

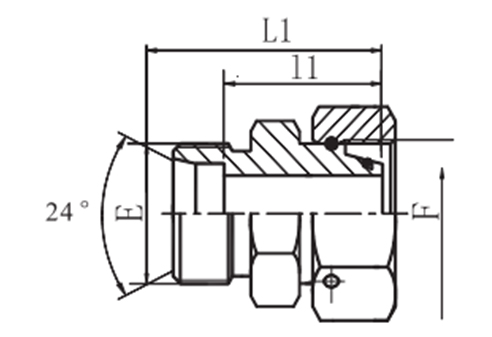

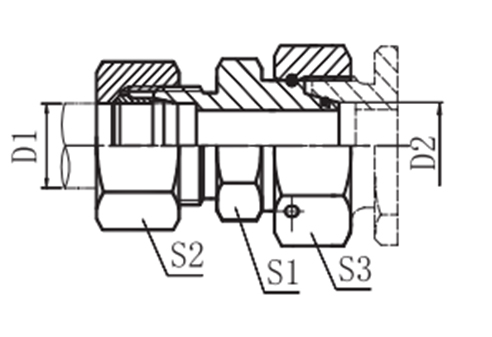

Reducer Tube Adaptor with Swivel NUT
PEHEL Hydraulic Model: P2C/P2C-RN
QTY:
