PART NO. THREAD TUBE O.D. DIMENSIONS E F D A B L S1 S2 1QN-12-02 M12X1.5 Z1/8"X27 6 15.7 10.5 32 14 14 1QN-12-04 M12X1.5 Z1/4"X18 6 15.7 15 36.5 14 14 1QN-14-02 M14X1.5 Z1/8"X27 8 17 10.5 33 17 17 1QN-14-04 M14X1.5 Z1/4"X18 8 17 15 38 17 17 1QN-16-04 M16X1.5 Z1/4"X18 10 18 15 39 19 19 1QN-16-06 M16X1.5 Z3/8"X18 10 18 16 40 19 19 1QN-18-04 M18X1.5 Z1/4"X18 12 18 15 39 19 22 1QN-18-06 M18X1.5 Z3/8"X18 12 18 16 40 19 22 1QN-18-08 M18X1.5 Z1/2"X14 12 18 19.5 45.5 24 22 1QN-22-08 M22X1.5 Z1/2"X14 14 19.5 19.5 47 24 27 1QN-27-06 M27X1.5 Z3/8"X18 18 20 16.5 46 30 32 1QN-27-08 M27X1.5 Z1/2"X14 18 20 19 49 30 32 1QN-27-16 M27X1.5 Z1"X11.5 18 20 24 55 36 32 1QN-36-16 M36X2 Z1"X11.5 25 25 25.5 63 41 41 1QN-39-16 M39X2 Z1"X11.5 28 26 25.5 64.5 41 46 1QN-45-16 M45X2 Z1"X11.5 34 28.5 25.5 67 46 50 1QN-45-20 M45X2 Z1.1/4"X11.5 34 28.5 26.5 68 46 50 1QN-45-24 M45X2 Z1.1/2"X11.5 34 28.5 27.5 71 50 50 Note In case if you are interested to order the adapter in complete set with sleeve and nut ,it is necessary to insert suffix "RN" after our part no.,for example 1QN-18-08RN

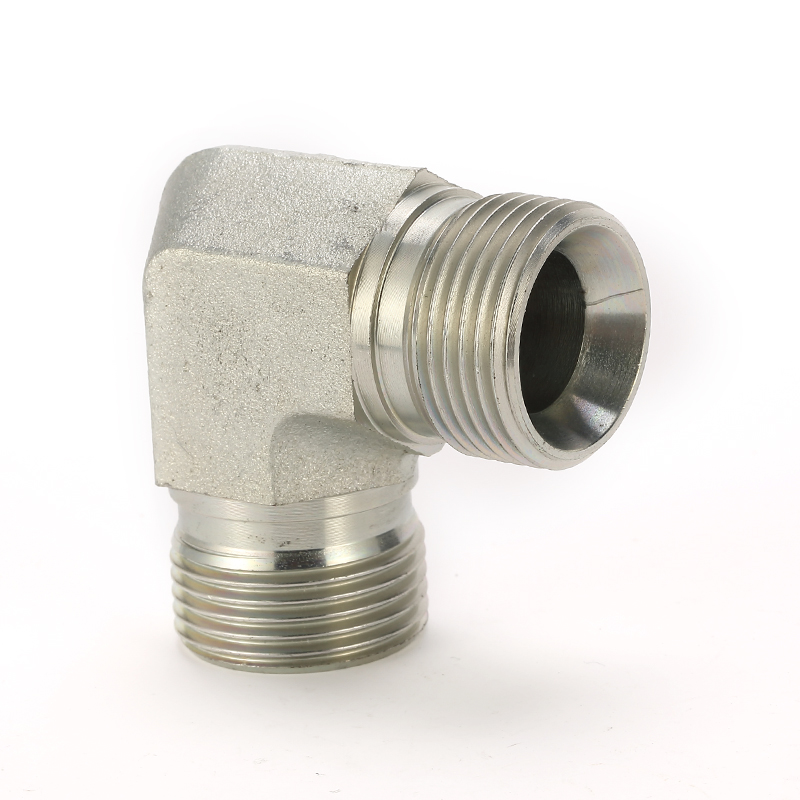

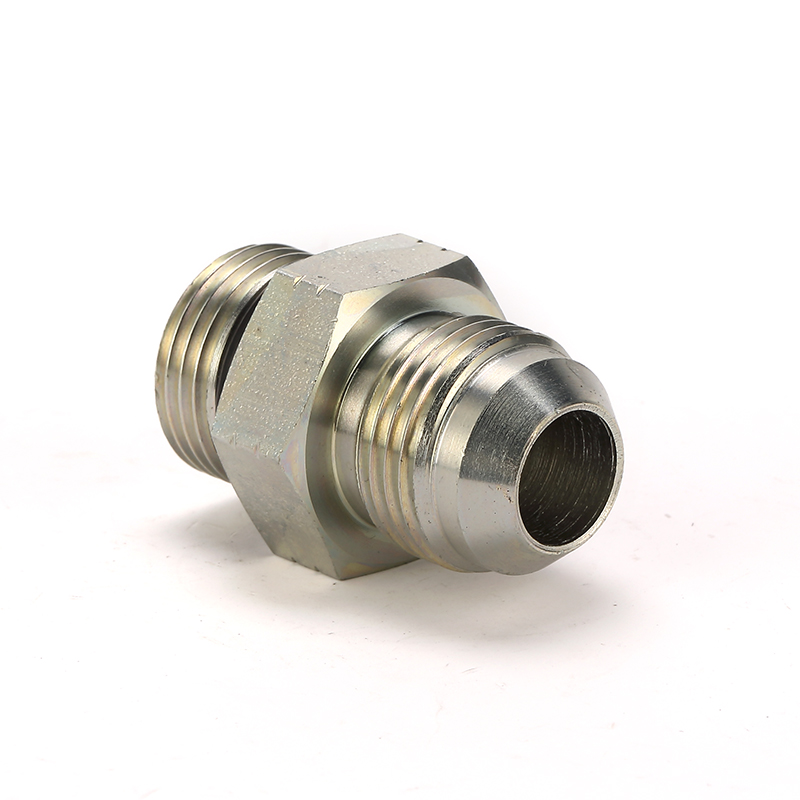

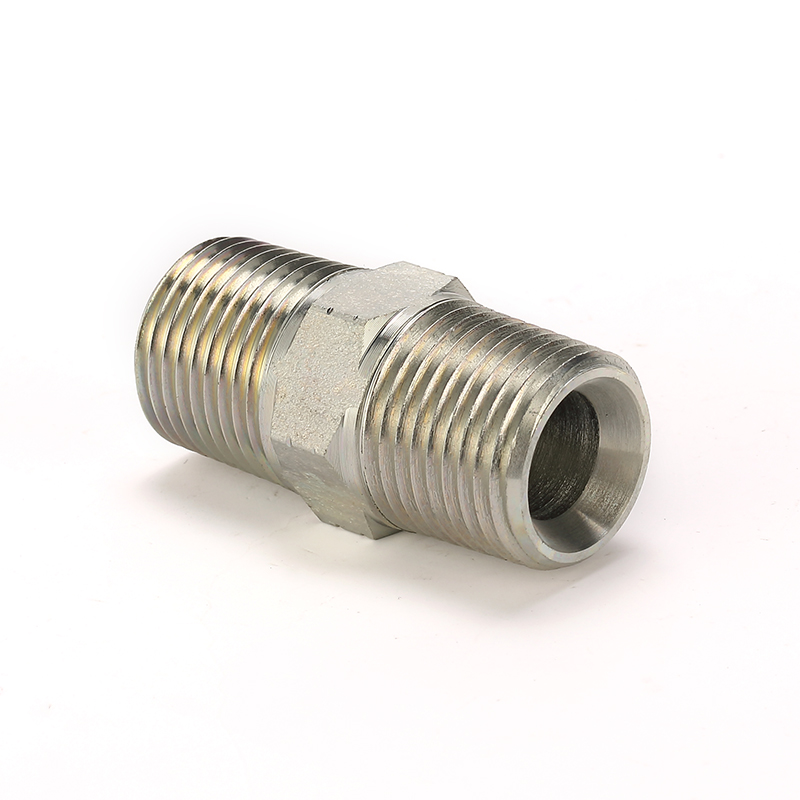

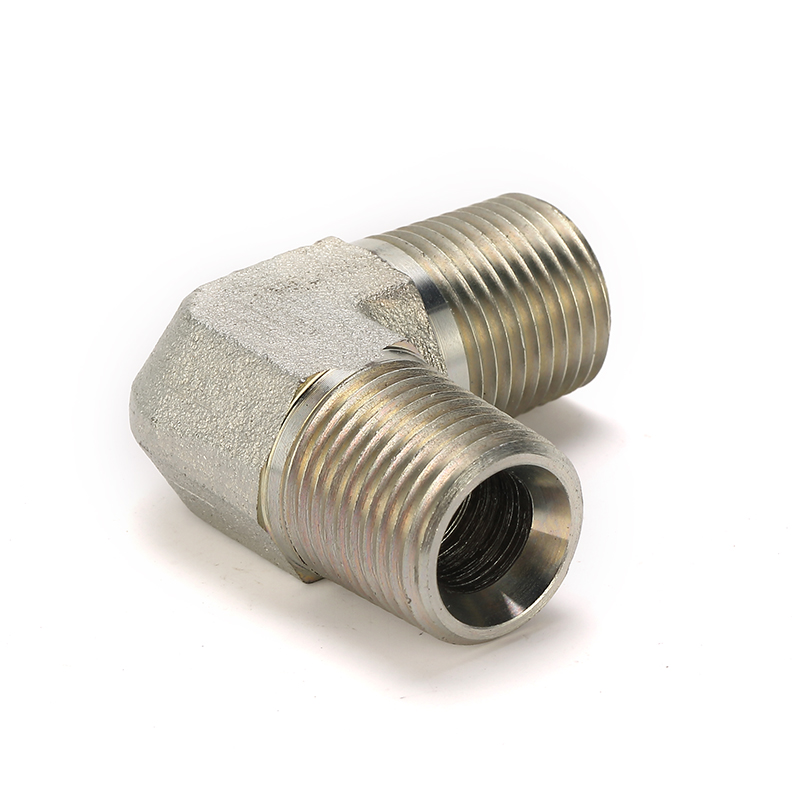

Pehel| P1QN| Hydraulic Metric Male 74 Cone/NPT Male Adapters
PEHEL Hydraulic Model: 1QN
QTY:
Material: Carbon steel
Brand: Pehel
Color: Silver
OEM Designed: Yes
Surface Treatment: Zinc Plated
Thread: Metric
About the item:
1. Precision adapter – designed for metric threaded connections.
2. Metric thread standard – conforms to DIN/ISO for exact fit.
3. Leak-proof sealing – precision-machined threads ensure zero fluid loss.
4. Durable steel body – corrosion-resistant for high-pressure applications.
5. Easy installation – standard metric threads allow quick assembly.
