THREAD DIMENSIONS PART NO. E F A B S1 1B9-02 G1/8"X28 G1/8"X28 19.8 19.8 11 1B9-02-04 G1/8"X28 G1/4"X19 23 25 14 1B9-04 G1/4"X19 G1/4"X19 24.5 24.5 14 1B9-04-06 G1/4"X19 G3/8"X19 26.5 27.5 16 1B9-06 G3/8"X19 G3/8"X19 27.5 27.5 16 1B9-06-08 G3/8"X19 G1/2"X14 31 34.5 22 1B9-08 G1/2"X14 G1/2"X14 34.5 34.5 22 1B9-08-12 G1/2"X14 G3/4"X14 37.5 40 27 1B9-10 G5/8"X14 G5/8"X14 35 35 22 1B9-10-12 G5/8"X14 G3/4"X14 37.5 40 27 1B9-12 G3/4"X14 G3/4"X14 40 40 27 1B9-12-16 G3/4"X14 G1"X11 43.5 46 33 1B9-16 G1"X11 G1"X11 46 46 33 1B9-16-20 G1"X11 G1.1/4"X11 50.5 50.5 41 1B9-20 G1.1/4"X11 G1.1/4"X11 50.5 50.5 41 1B9-20-24 G1.1/4"X11 G1.1/2"X11 54.5 57.5 48 1B9-24 G1.1/2"X11 G1.1/2"X11 57.5 57.5 48 1B9-32 G2"X11 G2"X11 68 68 63

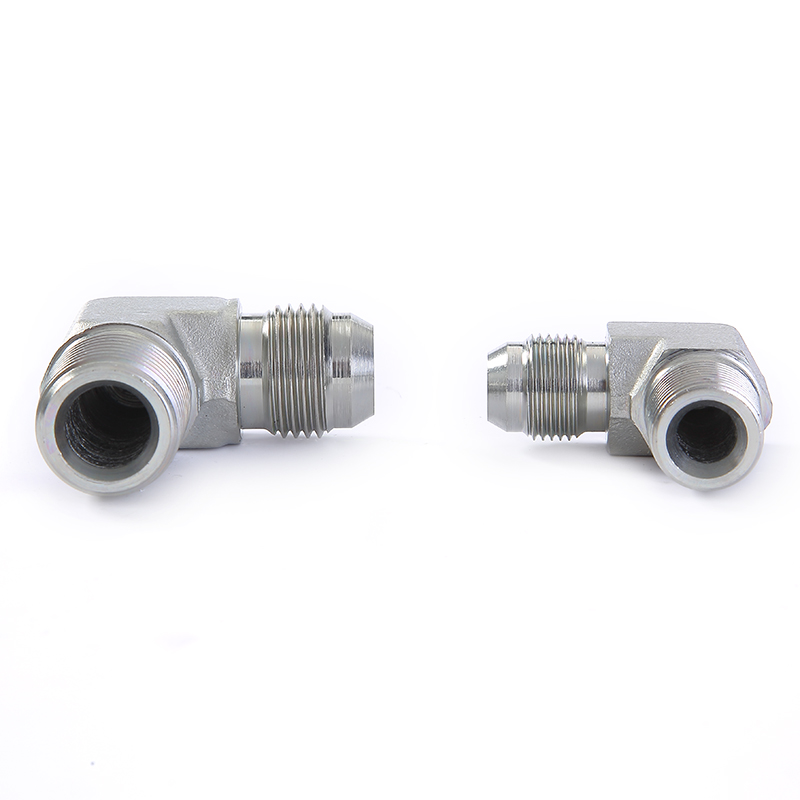

Pehel/1B9/Carbon Steel Zinc Plating Male BSP 60 Cone 90Deg Elbow Adapter
PEHEL Hydraulic Model: P1B9
QTY:
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver Zinc plating
Connector Type: Elbow
Thread Type: BSP 60° Cone
About the item:
1.High Pressure Tolerance: Withstands up to 31.5MPa, suitable for heavy-load hydraulic systems.
2.Interchangeable with ISO 8434 standard counterparts, no custom modification required for direct replacement in existing hydraulic systems.
3.Zinc-plated carbon steel body with salt spray resistance up to 240 hours, effectively preventing corrosion in outdoor and humid working environments.
4.Chamfered tube entry guides tubing for error-free assembly, reducing installation misalignment that leads to premature seal wear.
