PART NO.
THREAD
DIMENSIONS
E
F
A
B
S1
L
P1M-10
M10X1
M10X1
8
8
14
24
-22
M10X1
M12X1.5
8
10
17
26
-12
M12X1.5
M12X1.5
10
10
17
28
-26
M12X1.5
M14X1.5
10
11
19
29
-14
M14X1.5
M14X1.5
11
11
19
30
-16
M16X1.5
M16X1.5
12
12
22
32
-30
M16X1.5
M14X1.5
12
11
22
31
-34
M16X1.5
M16X1.5
12
12
24
34
-38
M16X1.5
M22X1.5
12
14
27
38
-18
M18X1.5
M18X1.5
12
12
24
34
-40
M18X1.5
M18X1.5
12
14
27
38
-22
M22X1.5
M22X1.5
14
14
27
38
-48
M22X1.5
M22X1.5
14
16
32
43
-26
M26X1.5
M26X1.5
16
16
32
45
-56
M26X1.5
M26X1.5
16
18
36
47
-27
M27X1.5
M27X1.5
16
16
32
45
-27A
M27X2
M27X2
16
16
32
45
-30
M30X1.5
M30X1.5
18
18
36
49

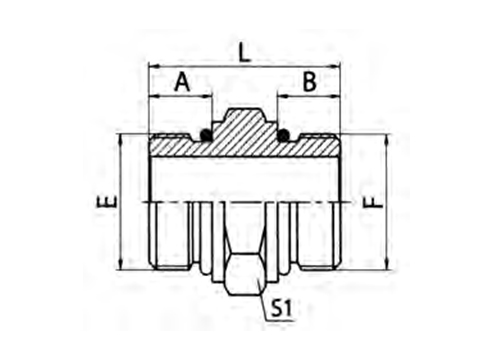

Metric Male Double Use for 60° Cone Seat or Bonded Seal
PEHEL Hydraulic Model: P1M-10
QTY:
- Brand：Pehel, support OEM custom service
- Standard：Metric Male Dual-purpose Fitting (60° Cone Seat / Bonded Seal)
- Material：Carbon steel, stainless steel optional
- Surface Finish：Silver color zinc plating
- Thread Type：Metric male thread
- Connector Type：Dual function metric male connector
- Sealing Mode：60° cone seat sealing + bonded seal dual use
- Application：General industrial hydraulic pipeline connection
- About the item:
- 1.This dual-use metric connector supports both 60° cone seat and bonded seal two sealing ways
- 2.Two material options: carbon steel and stainless steel for metric male bonded seal fittings
- 3.Precision metric male thread ensures tight fit with 60° cone seat and bonded seal assemblies
- 4.Pehel ready stock and OEM custom sizes available for double use metric hydraulic fittings
- 5.Fine machining on Metric Male Double Use fitting, leakproof and easy to assemble on pipelines
