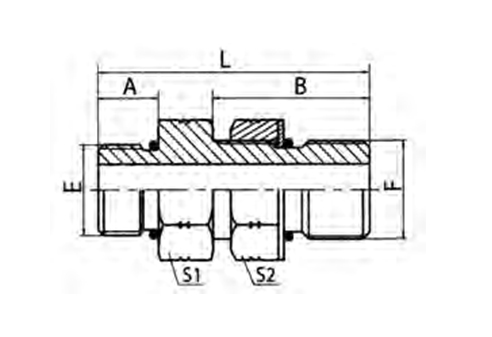

PART NO. THREAD O-RING DIMENSIONS E F E F A B L S1 S2 1O-04OG 7/16"X20 7/16"X20 O904 O904 9.14 18 33 14 17 1O-04-06OG 7/16"X20 9/16"X18 O904 O906 9.14 20 35.1 17 19 1O-06OG 9/16"X18 9/16"X18 O906 O906 9.93 20 36 17 19 1O-06-08OG 9/16"X18 3/4"X16 O906 O908 9.93 22 40 22 24 1O-08OG 3/4"X16 3/4"X16 O908 O908 11.13 22 40 22 24 1O-08-12OG 3/4"X16 1.1/16"X12 O908 O912 11.13 29 51 32 32 1O-10OG 7/8"X14 7/8"X14 O910 O910 12.7 26 46 27 27 1O-12OG 1.1/16"X12 1.1/16"X12 O912 O912 15.1 29 54 32 32 1O-16OG 1.5/16"X12 1.5/16"X12 O916 O916 15.1 29 54 38 41 1O-20OG 1.5/8"X12 1.5/8"X12 O920 O920 15.1 29 54 50 50 1O-24OG 1.7/8"X12 1.7/8"X12 O924 O924 15.1 29 54 55 55
PEHEL | SAE O-Ring Boss Male Adapter with Lock Nut, Hydraulic ORB Fitting with Nut
PEHEL Hydraulic Model: P1O-OG
QTY:
Type: SAE O-Ring Boss Male Adapter with Lock Nut
Sealing: O-Ring Seal
Thread Type: SAE Straight Thread (Male)
Material: Carbon steel
Brand: PEHEL, OEM
About the item:
1.SAE O-Ring Boss male adapter with an integrated lock nut (jam nut), designed for hydraulic connections requiring precise positioning and secure fastening.
2.Male ORB end features straight threads with an O-ring groove, providing reliable leak-proof sealing when mated with SAE ORB ports.
3.The lock nut allows adjustment of the adapter orientation during installation and locks it in place to prevent loosening under vibration or pressure fluctuations.
4.Manufactured from high-strength carbon steel with anti-rust surface treatment for excellent durability and corrosion resistance in hydraulic environments.
5.Precision machined threads and sealing surfaces ensure consistent performance and reliable sealing in high-pressure hydraulic systems.
