PART NO. THREAD DIMENSIONS E F A B S1 1JT9-02SP 5/16X24 R1/8"X28 20.5 21 11 1JT9-04-02SP 7/16X20 R1/8"X28 24.5 21 11 1JT9-04SP 7/16"X20 R1/4"X19 26.6 25.5 14 1JT9-04-06SP 7/16"X20 R3/8"x19 27.5 28.5 16 1JT9-05-02SP 1/2x20 R1/8""X28 26.6 24 14 1JT9-05-04SP 1/2x20 R1/4""X19 26.6 25.5 14 1JT9-05-06SP 1/2"x20 R3/8"X19 27.5 28.5 16 1JT9-06-02SP 9/16"X18 R1/8"x28 26.9 24 14 1JT9-06-04SP 9/16"X18 R1/4"X19 26.9 25.5 14 1JT9-06SP 9/16"×18 R3/8"X19 28.5 28.5 16 1JT9-06-08SP 9/16""X18 R1/2"X14 32 36 22 1JT9-08-04SP 3/4"X16 R1/4"X19 32 28 19 1JT9-08-06SP 3/4X16 R3/8""X19 32 30.5 19 1JT9-08SP 3/4"X16 R1/2""X14 34.8 37 22 1JT9-08-12SP 3/4-X16 R3/4""X14 37.9 43.5 27 1JT9-10-06SP 7/8"×14 R3/8"x19 38 32.5 22 1JT9-10-08SP 7/8"X14 R1/2"X14 37.8 36 22 1JT9-10-12SP 7/8"X14 R3/4"X14 41 43.5 27 1JT9-12-08SP 1.1/16"X12 R1/2"X14 44.2 40 27 1JT9-12SP 1.1/16"X12 R3/4"X14 44.2 43.5 27 1JT9-12-16SP 1.1/16"X12 R1"X11 48 50 33 1JT9-16-12SP 1.5/16"X12 R3/4""X14 49 48 33 1JT9-16SP 1.5/16"X12 R1"X11 49 50 33 1JT9-16-20SP 1.5/16"X12 R1.1/4"X11 54 56.5 41 1JT9-20-16SP 1 .5/8"X12 R1"X11

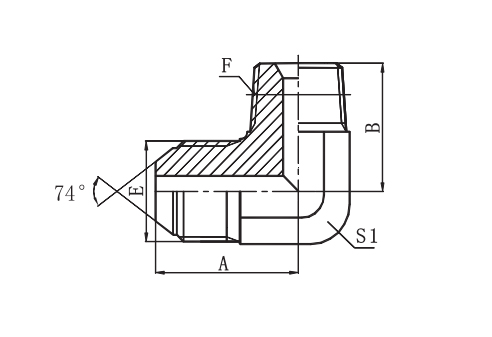

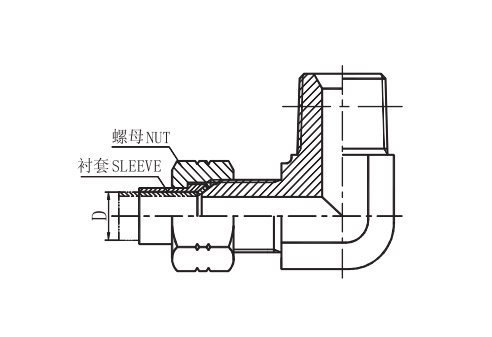

90 Degree Transition Elbow With JIC Male 74° Cone & BSPT Male Thread Hydraulic Coupling
PEHEL Hydraulic Model: P1JT9-SP
QTY:
Material: Carbon steel, stainless steel
Brand: Pehel, OEM
Color: Silver color zinc plating
Connector Type:
Thread Type:
- About the item:
- 1.This 90° elbow JIC male 74 cone to BSPT male fitting realizes quick conversion between JIC 74° cone and BSPT male pipe thread pipelines.
- 2.The 74° cone metal sealing structure of this JIC to BSPT transition hydraulic elbow provides stable leakproof performance under high working pressure.
- 3.Made of carbon steel and stainless steel, the zinc plated hydraulic thread adapter adapts to various harsh industrial hydraulic working conditions.
- 4.Silver zinc plating surface treatment on the stainless steel JIC pipe connector effectively prevents rust and corrosion to extend long service life.
- 5.Pehel brand supply and full OEM customization service are offered for this high pressure hydraulic coupling to satisfy bulk wholesale order demands.
