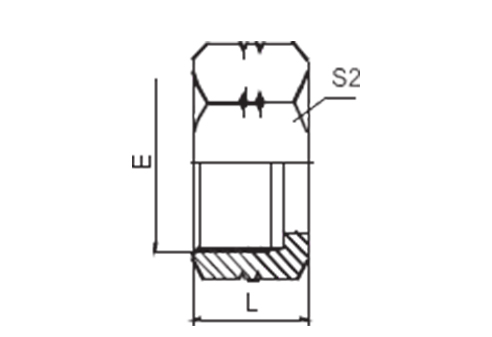

PART NO. THREAD INCH SLEEVE METRIC SLEEVE DIMENSIONS E O.D. NO. O.D. NO. NB200-04 7/16"X20 1 /4" NB300-04 6 NB500-06 15.8 14 NB200-05 1/2"X20 5/16" NB300-05 8 NB500-08 17.3 17 NB200-06 9/16"X18 3/8" NB300-06 10 NB500-10 18.5 19 NB200-08 3/4"X16 1 /2" NB300-08 12 NB500-12 21.6 24 NB200-10 7/8"X14 14 NB500-14 24.9 27 NB200-10 7/8"X14 15 NB500-15 24.9 27 NB200-10 7/8"X14 5/8" NB300-10 16 NB500-16 24.9 27 NB200-12 1.1/16"X12 3 /4" NB300-12 18 NB500-18 26.2 32 NB200-12A 1.1/16"X12 20 NB500-20A 26.2 32 NB200-14 1.3/16"X12 20 NB500-20 27.7 36 NB200-14 1.3/16"X12 7/8" NB300-14 22 NB500-22 27.7 36 NB200-16 1.5/16"X12 1" NB300-16 25 NB500-25 28.7 38 NB200-20 1.5/8"X12 28 NB500-28 31.2 50 NB200-20 1.5/8"X12 30 NB500-30 31.2 50 NB200-20 1.5/8"X12 1.1/4" NB300-20 32 NB500-32 31.2 50 NB200-24 1.7/8"X12 35 NB500-35 36.1 60 NB200-24 1.7/8"X12 1.1/2" NB300-24 38 NB500-38 36.1 60 NB200-32 2.1/2"X12 2" NB300-32 50 NB500-50 44.5 75

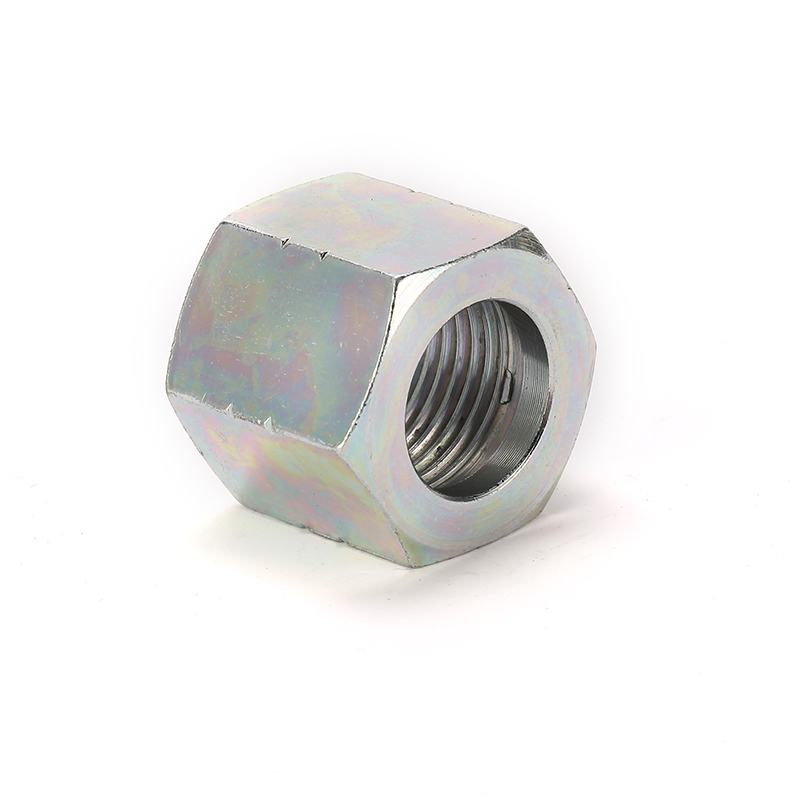

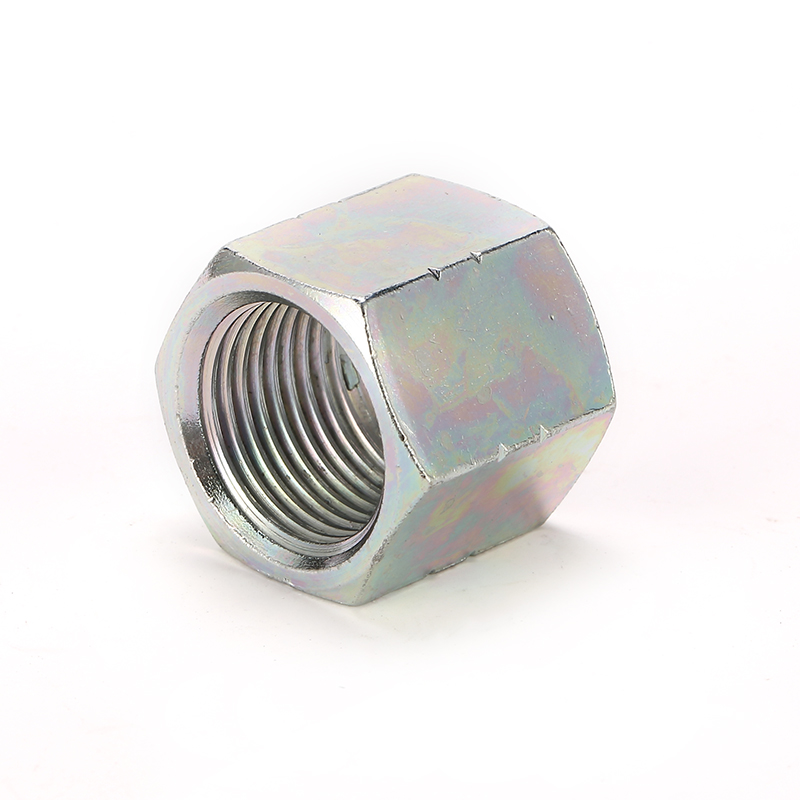

Pehel/NB200/High Quality JIC 37 flare Nut/All Sizes Available
PEHEL Hydraulic Model: PNB200
QTY:
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver Zinc plating
Connector Type: Nut
Thread Type: JIC
About the item:
1.Interchangeable with ISO 8434 standard counterparts, no custom modification required for direct replacement in existing hydraulic systems.
2.Zinc-plated carbon steel body with salt spray resistance up to 240 hours, effectively preventing corrosion in outdoor and humid working environments.
3.Wide operating temperature range from -40℃ to +120℃, stable performance in extreme cold northern mines and high-temperature metallurgy workshops.
