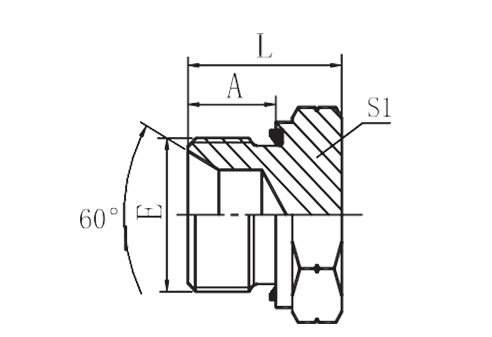

THREAD CAPTIVE DIMENSIONS PART NO. E E A L S1 D 4BN-02WD G1/8"X28 WD-B02 8 12.2 5 Φ14 4BN-04WD G1/4"X19 WD-B04 12 17.2 6 Φ19 4BN-06WD G3/8"X19 WD-B06 12 17.2 8 Φ22 4BN-08WD G1/2"X14 WD-B08 14 19.2 10 Φ27 4BN-12WD G3/4"X14 WD-B12 16 21.2 12 Φ32 4BN-16WD G1"X11 WD-B16 16 22.8 17 Φ39 4BN-20WD G1.1/4"X11 WD-B20 20 26.8 22 Φ49 4BN-24WD G1.1/2"X11 WD-B24 22 28.8 24 Φ55

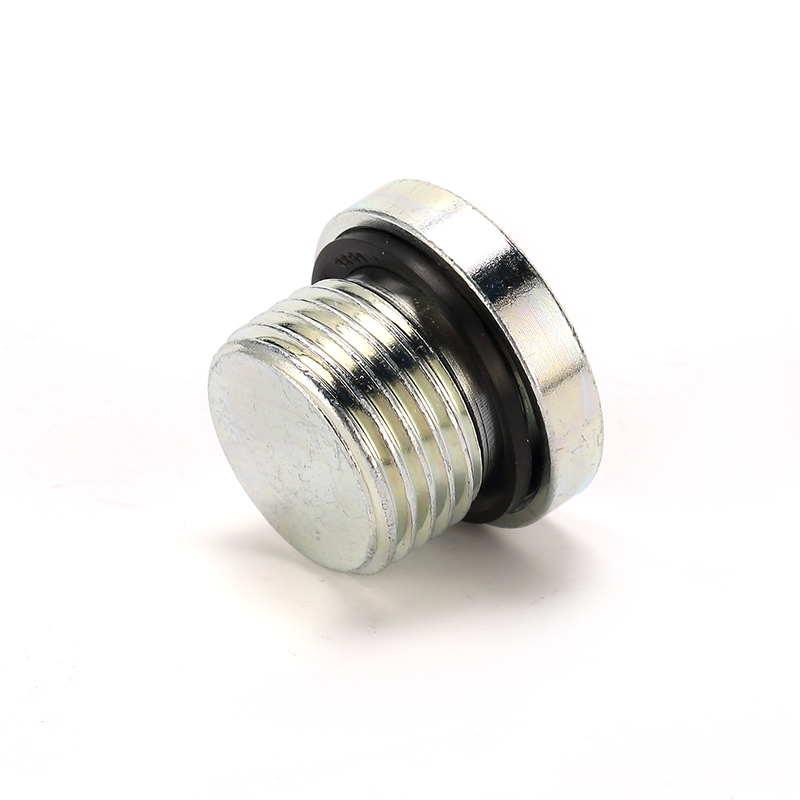

Anti-Leak BSP Male Hollow Hexagonal Plug Equipped With Fixed Captive Seal For Hydraulic Lines
PEHEL Hydraulic Model: P4BN-WD
QTY:
Material: Carbon steel, stainless steel
Brand: Pehel, OEM
Color: Silver color zinc plating
Connector Type:
Thread Type:
About the item:
- 1.This BSP male hollow hex plug adopts captive seal integrated structure to eliminate extra sealing parts and avoid leakage.
- 2.Made of carbon steel and stainless steel, the captive seal hydraulic plug withstands high pressure for industrial hydraulic pipelines.
- 3.Silver zinc plating treatment on the hollow hex head BSP threaded plug offers strong rust resistance and long service life.
- 4.Pehel brand supply and OEM custom service are available for this BSP male hollow hex plug to satisfy bulk order demands.
- 5.Precision machined BSP male thread of the hydraulic pipe plug matches standard pipeline ports for smooth assembly.
