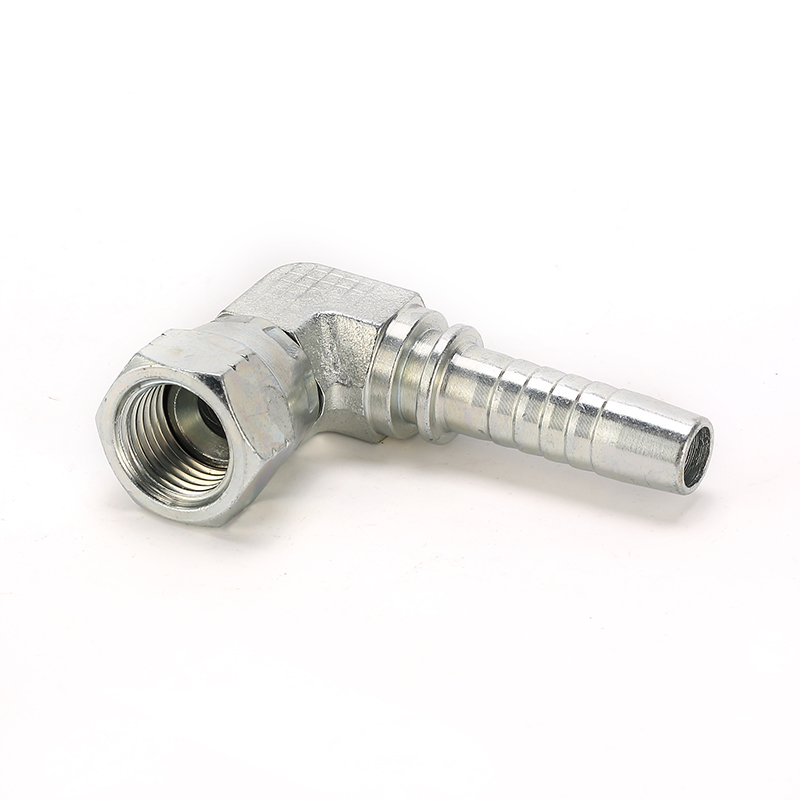

90° Elbow JIC GAS Male 60° Cone

90° Elbow JIC GAS Male 60° Cone

PEHEL Hydraulic Model: P1ST9-SP

QTY:

  • 90° Elbow JIC GAS Male 60° Cone Specification
  • You May Also Like

  • PART NO.

    		THREAD DIMENSIONS
    E F A B S1
    P1ST9-02 G1/8"-28 R1/8"-28 21.8 21 11
    -02-04 G1/8"-28 R1/4"-19 24.3 25.5 14
    -04-02 G1/4"-19 R1/8"-28 26.3 23.5 14
    -04 G1/4"-19 R1/4"-19 26.3 25.5 14
    -04-06 G1/4"-19 R3/8"-19 27.7 28.5 16
    -04-08 G1/4"-19 R1/2"-14 31 36 22
    -06-04 G3/8"-19 R1/4"-19 29 26.5 16
    -06 G3/8"-19 R3/8"-19 29 28.5 16
    -06-08 G3/8"-19 R1/2"-19 33.5 36 22
    -06-12 G3/8"-19 R3/4"-14 36.5 43.5 27
    -08-04 G1/2"-14 R1/4"-19 37 30.5 22
    -08-06 G1/2"-14 R3/8"-19 37 32.5 22
    -08 G1/2"-14 R1/2"-14 37 36 22
    -08-12 G1/2"-14 R3/4"-14 40 43.5 27
    -08-16 G1/2"-14 R 1"-11 43.5 50 33
    -12-06 G3/4"-14 R3/8"-19 41.5 36 27
    -12-08 G3/4"-14 R1/2"-14 41.5 39.5 27
    -12 G3/4"-14 R3/4"-14 41.5 43.5 27
    -12-16 G3/4"-14 R 1"-11 45.5 50 33
    -16-12 G 1"-11 R3/4"-14 47.5 47.5 33
    -16 G 1"-11 R 1"-11 47.5 50 33
    -16-20 G 1"-11 R1.1/4"-11 53 59 41
    -20 G1.1/4"-11 R1.1/4"-11 57 59 41
    -24 G1.1/2"-11 R1.1/2"-11 61 62.5 48
