flat steel tube clamp: 4 models for choice
clamp Tube D

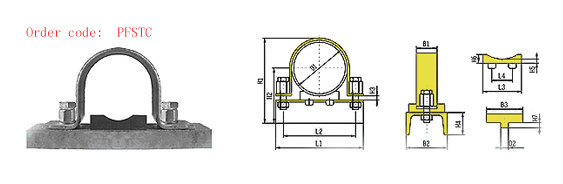

Flat steel hoop F B U-steel Plastic pads P U K affix mm Out inch L1 L2 H1 H2 H3 B1
Flat steelB2×H4 L3 L4 B3 D2 H5 n
H6H7 hexagon head bolt 40 48.3
11/2 100 76 95 67 5 20×30 50×38 24 25 35 8 5 8 5 8 50 57 115 85 103 71.5 38 25 50 10 10 6 M10×40 60.3 2 115 88 106 73.2 65 76.1 21/2 132 104 122 81 80 88.9 3 160 122 146 97.5 8 40×4 80×45 75 40 70 15 8 17 10 M12×55 100 108 170 140 165 107 114.3 4 180 147 171 110 125 133 210 165 190 119.5 139.7 5 210 172 197 123 150 159 265 201 220 132.5 40×6 140 90 75 25 26 M16×75 168.3 6 275 211 230 137 175 193.7 305 236 255 150 200 216 320 260 277 161 219.1 8 320 261 280 162.5 250 267 380 325 328 186.5 40×8 273 10 385 330 334 189.5 300 318 440 375 384 212 220 150 30 32 M20×80 323.9 12 450 382 390 215 350 355.6 14 480 420 421 236 12 60×8 100×50 220 150 75 30 8 32 10 M24×100 368 490 430 434 242 400 406.4 16 550 470 472 261 419 550 482 485 267.5 457 18 585 520 523 286.5 500 508 20 630 570 574 312 521 640 585 587 319
Flat Steel DIN3015 Tube Clamp for Hydraulic Pipe Mounting
PEHEL Hydraulic Model: 3.Flat Steel Tube Clamp PFSTC
QTY:
- flat steel tube clamp: 4 models for choice
- Brand: Pehel, OEM Available
- Material: Carbon Steel, Stainless Steel
- Surface Treatment: Silver Zinc Plating, Chrome Plating, Nickel Plating
- Standard: DIN3015
- Type: Flat Tube Clamp
- Application: Hydraulic Pipe Mounting, Industrial Pipeline Support
About the item:
- 1.This DIN3015 flat steel tube clamp follows DIN3015 standard for stable hydraulic pipe mounting.
- 2.Available in carbon steel and stainless steel to fit diverse industrial working environments.
- 3.Multiple surface finishes: silver zinc plating, chrome plating and nickle plating for anti-corrosion.
- 4.Pehel supplies standard flat steel tube clamps and accepts OEM custom orders.
- 5.Robust flat steel structure offers strong clamping force and effective vibration damping.
- 6.Simple installation design of DIN3015 pipe support saves assembly time for hydraulic systems.
