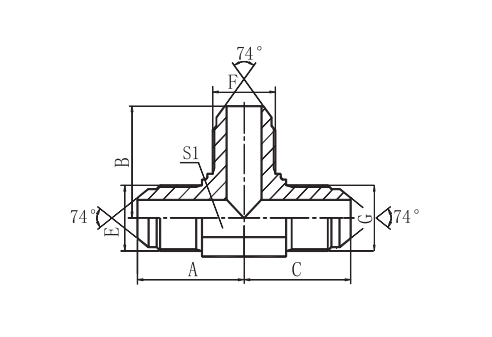

THREAD DIMENSIONS PART NO. E F G A B C S1 AJ-04 7/16"X20 7/16"X20 7/16"X20 24.5 24.5 24.5 11 AJ-04-06-04 7/16"X20 9/16"X18 7/16"X20 26.6 26.6 26.6 14 AJ-05 1/2"X20 1/2"X20 1/2"X20 26 26 26 14 AJ-06-04-06 9/16"X18 7/16"X20 9/16"X18 26.9 26.9 26.9 14 AJ-06 9/16"X18 9/16"X18 9/16"X18 26.9 26.9 26.9 14 AJ-08 3/4"X16 3/4"X16 3/4"X16 32 32 32 19 AJ-08-06-08 3/4"X16 9/16"X18 3/4"X16 32 30 32 19 AJ-10 7/8"X14 7/8"X14 7/8"X14 37.8 37.8 37.8 22 AJ-12 1.1/16"X12 1.1/16"X12 1.1/16"X12 44.2 44.2 44.2 27 AJ-16 1.5/16"X12 1.5/16"X12 1.5/16"X12 49 49 49 33 AJ-16-12-16 1.5/16"X12 1.1/16"X12 1.5/16"X12 49 49 49 33 AJ-20 1.5/8"X12 1.5/8"X12 1.5/8"X12 56.5 56.5 56.5 41 AJ-24 1.7/8"X12 1.7/8"X12 1.7/8"X12 63 63 63 48 AJ-32 2.1/2"X11 2.1/2"X11 2.1/2"X11 78 78 78 63

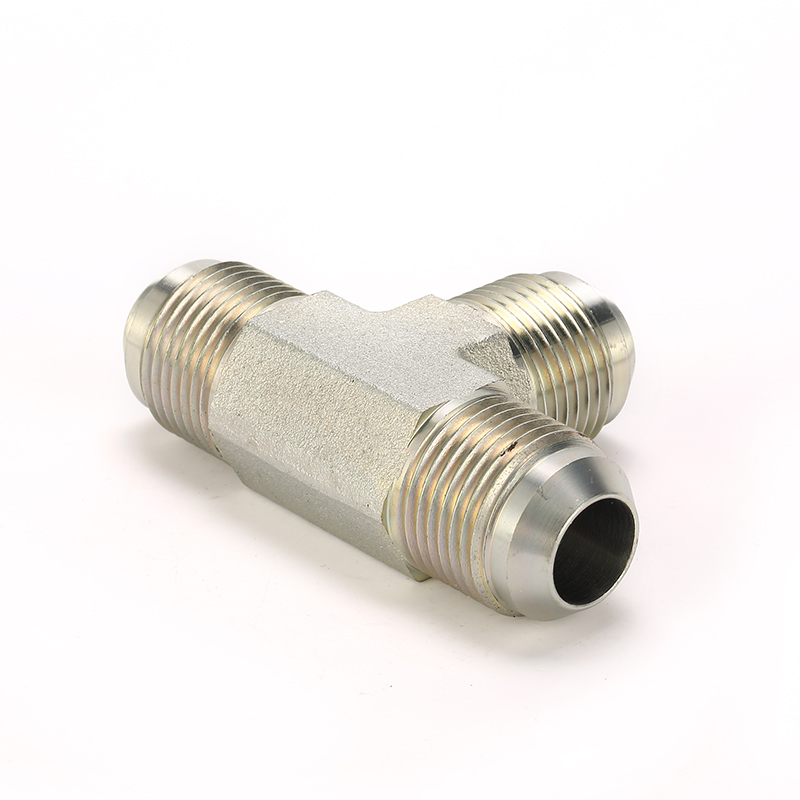

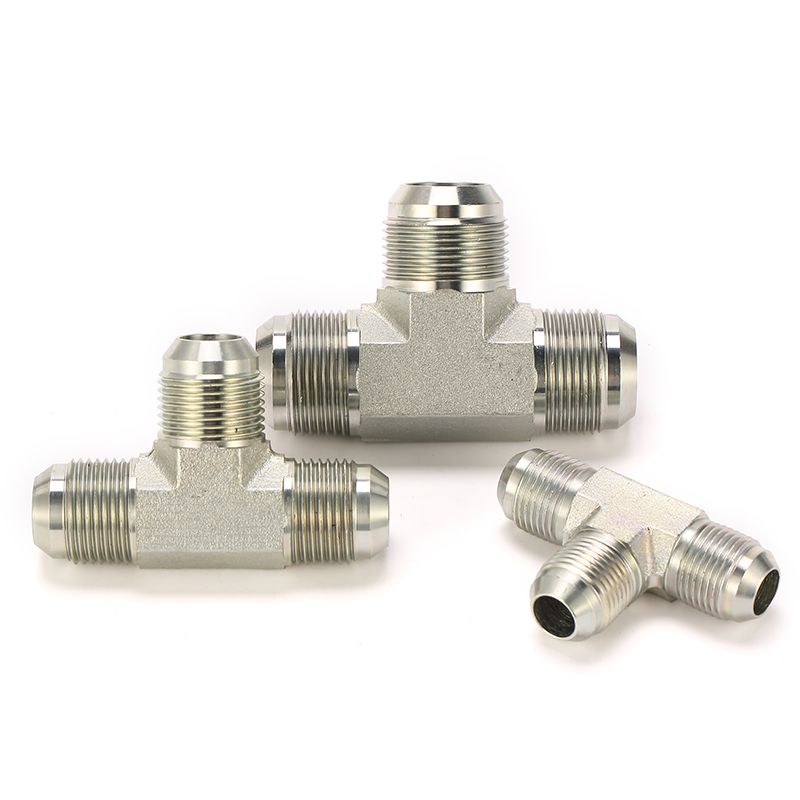

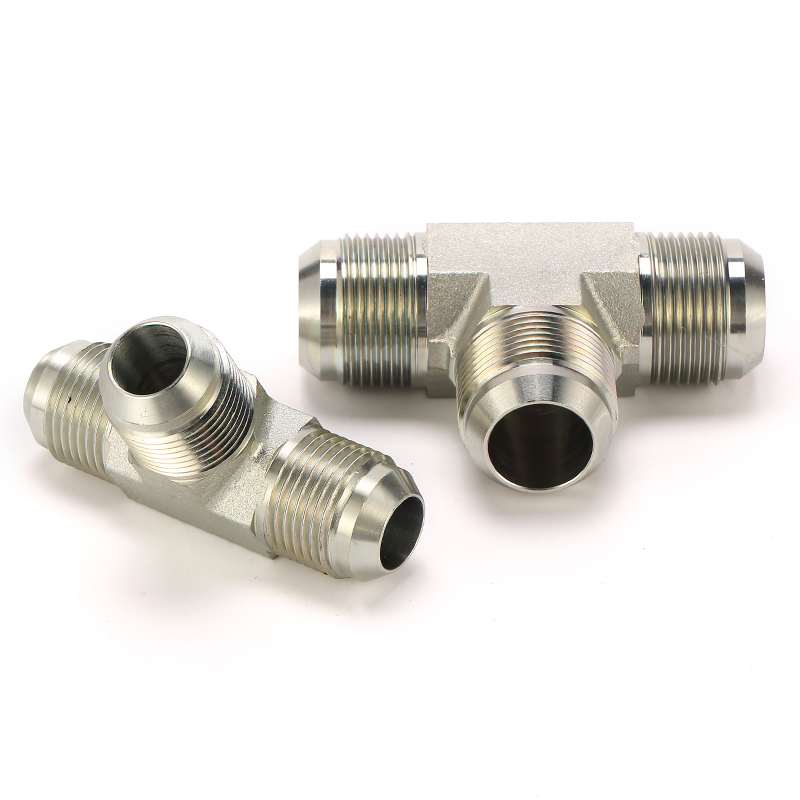

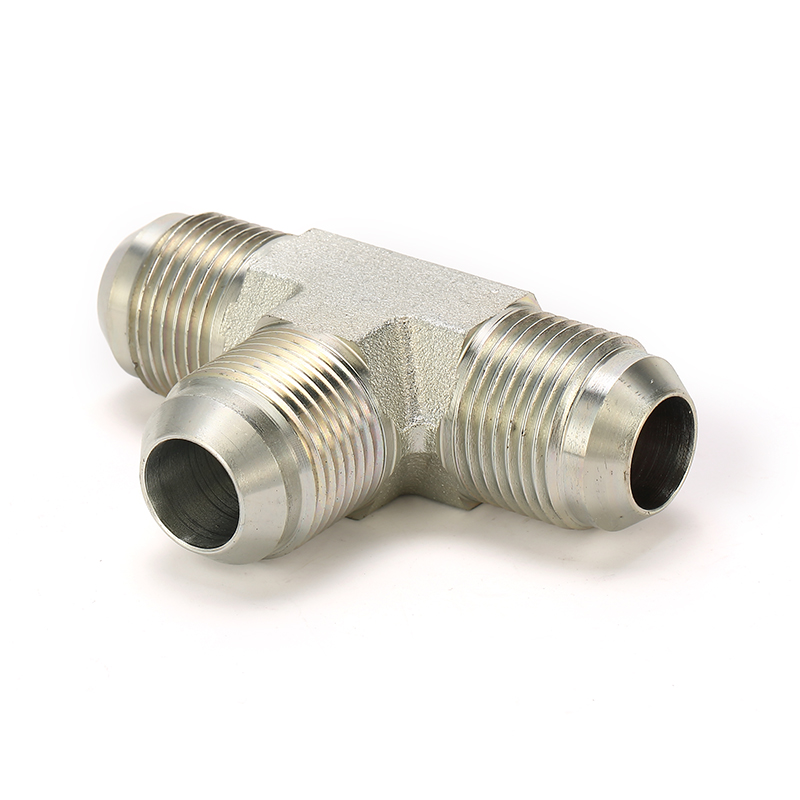

JIC MALE74° CONE TEE
PEHEL Hydraulic Model: PAJ
QTY:
